40A DC Input Three-Phase Motor Reversing SSR Solid State Relay

Name: 40A DC Input Three-Phase Motor Reversing SSR Solid State Relay
Brand: all-electronics-online.com
SKU: 791855135
Availability: InStock
Rating: 4.3 (106 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SYTR4048ZD
Input:	10-30VDC
Load Voltage:	24~480VAC
Load Current:	10A
Voltage Drop:	<2V

Product Description

DC input Three-phase Motor reversing SSR Solid State Relay, Three-phase motor control module

DESCRIPTION:
SYTR series motor control module is a special solid state relay which is only used for reversing control and bucking-connected brake control by three phase motor.It integrates logic interlock circuit and turn-on delay circuit.According to these circuits,it can avoid destruction by phase-to-phase short circuit.As long as the switching time meet the specification,it can protect the power supply system,motor and module itself,In the meantime,the module integrates three internal snubbers,so it can absorb the peak voltage.

The module offer 10-30V universal input control,with output rated at 10Amps,15Amps,25Amps and 40Amps.
The module include a double color LED,it can indicate the running status conveniently.The modules are widely used for three phase motor control and electric actuator control,the typical application include blender control,steam valve control,flow control,wind door control,and so on.

Features:
1. Photo isolation
2. LED status indication
3. Dielectric strength 4000V
4. Zero cross
5. Built-in snubber
6. Panel mount
7. Environmental friendly product

Specifications:
Load current: 10A, 15A,25A,40A
Load voltage: 480VAC
Control voltage: 10-30VDC
Control current: 10-30mA
Voltage drop: ≤ 2V
Leakage current: ≤ 10mA
Response time: ≥ 300mS
Dielectric strength: 2500VAC
Insulation resistance: 1000MΩ 500VDC
Ambient temperature: -30~+75ºC
Installation method: Screw terminal
Indicator: LED, (red), (green)
Weight: 480g

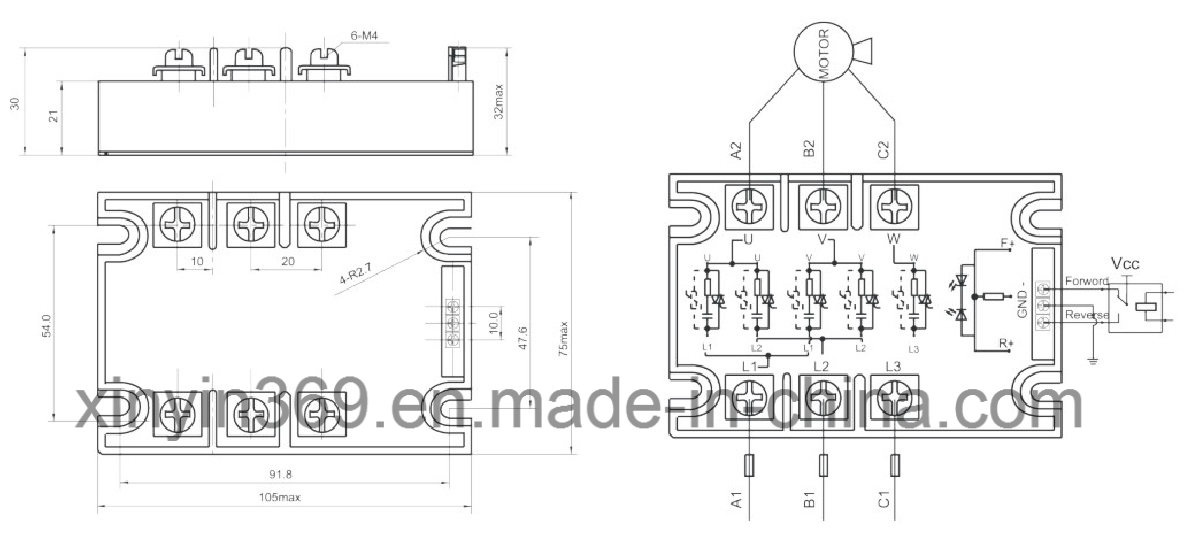

Outline dimensions & wiring diagram:
