40A SSR Solid State Contactor with DC Input

40A SSR Solid State Contactor with DC Input
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SYDR4048ZD3
Input: 4-32VDC
Load Current: 40A
Load Voltage: 24~480VAC
Weight: 0.3kgs

Product Description



patent product

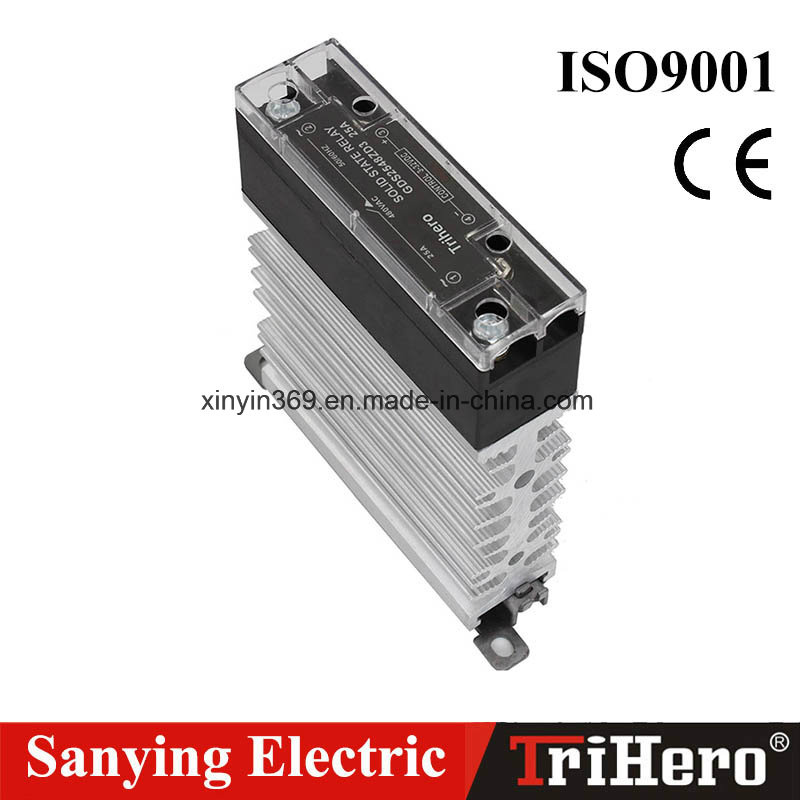

40A single phase solid state contactor


Solid State Relay, integrated with slim heatsink,Din-Rail Mount

Features:
1. Load current 10~40A
2. Built-in RC
3. Red LED visualization on the input
4. Dielectric strength up to 4000V
5. Zero-cross or random turn-on
6. Large control range: 3-32VDC
7. Space-saving design
8. Ready to use with its heatsink
9. Zero cross solid state contactor especially designed for resistive loads
10. Terminals protection by removable transparent cover with optional labels
11. Designed in conformity with IEC/EN60947-4-3 and EN60950/VDE0805; IEC60335-1/VDE0700-1


Technical data:

Load current40A
Load voltage24-480Vac
Input voltage3-32VDC
Voltage drop ≤1.5V
Leakage current ≤2mA
ON-OFF time ≤10mS
Dielectric strength 2500Vac
Insulation resistance 1000MΩ 500VDC
Ambient temperature -30°c ~ +75°c
Dimension(mm) 80.3x24.3x104
Weight 300g

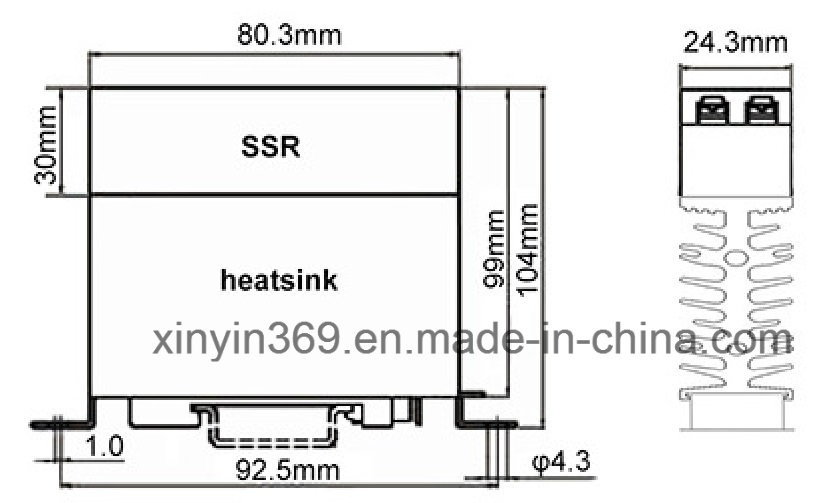

Outline dimensions:
