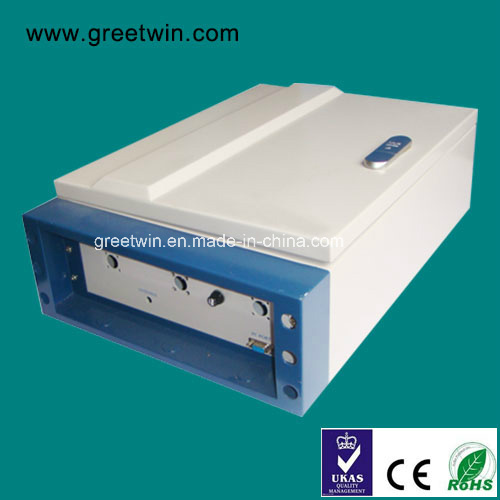

40dBm 1800MHz Dcs Channel Selective Repeater/Mobile Repeater/Mobile Phone Repeater (GW-40CSRD)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
GW-40CSRD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 40dBm: |
Channel Selective Repeater |
| Type: |
Wireless Repeater |
| Transmission Medium: |
Cable |
| Standard: |
Standard |
| Lightning Protection: |
With Lightning Protection |
| Certification: |
CE |
| Condition: |
New |
Product Description
40dBm 1800MHz DCS Channel Selective Repeater
Model:
GW-40CSRD
Feature:
* Each Central frequency can be shifted.
* High linear design, low interference to BTS.
* Intelligent design, built-in ALC function.
* With the used of IF saw fillter to make it good out-of-band rejection.
* coverage up to 1-5 KM.
* Can be controled and monitored, via RS232 connects PC for local control, via GSM modem connects PC for remote control.
Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.
| Items | Uplink | Downlink |
| Frequency Range | DCS | 1710 ~ 1785 MHz | 1805 ~ 1880 MHz |
| Max. Gain | 90 dB | 95 dB |
| Bandwidth | 200K |
| Channels Number | ≤ 8 Channels |
| Manual Gain Control | 31dB in step of 1dB |
| Automatic Gain Control | > 20dB |
| Ripple in Band | ≤ 3dB(Typical) |
| Out of Band Rejection | ± 400 KHz ≤ -20 dBc |
| ± 600 KHz ≤ -30 dBc |
| ± 1 MHz ≤ -40 dBc |
| ± 5 MHz ≤ -50 dBc |
| Max. Input Power Without Damage | 0 dBm |
| Output Power | 33 dBm | 40 dBm |
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | ≤ -45 dBc |
| 1GHz~12.75GHz | ≤ -30 dBm | ≤ -45 dBc |
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | ≤ -36 dBm |
| 1GHz~12.75GHz | ≤ -30 dBm | ≤ -30 dBm |
| Frequency Stability | ≤ 0.01 ppm |
| Noise Figure @ max. gain | ≤ 5 dB(Typical) |
| Return loss | ≤ -14 dB |
| Time Delay | ≤ 4.5 μ s |
| MTBF | > 50000 hours |
| Power Supply | AC: 90~265V, 50/ 60Hz |
| Power Consumption | < 250W |
| Impedance | 50 ohm |
| LED indication | Power LED | DC ON/OFF |
| Alarm LED | Normal: Green; Any Alarm Heppen: Red |
| Remote/ Local Control | Local: Via RS232; Remote: Via wireless Modem |
| RF Connector | N-Female |
| Switch | Power Switch\Battery Switch |
| Cooling | Heatsink Convection cooling |
| Dimensions (D x W xH ) | 420x650x170 mm |
| Weight | < 35 Kg |
| Installation Type | Wall Installation (or Pole Mount) |
| Environment Conditions | IP65 |
| Humidity | < 90% |
| Operating Temperature | -10º C~55º C |
