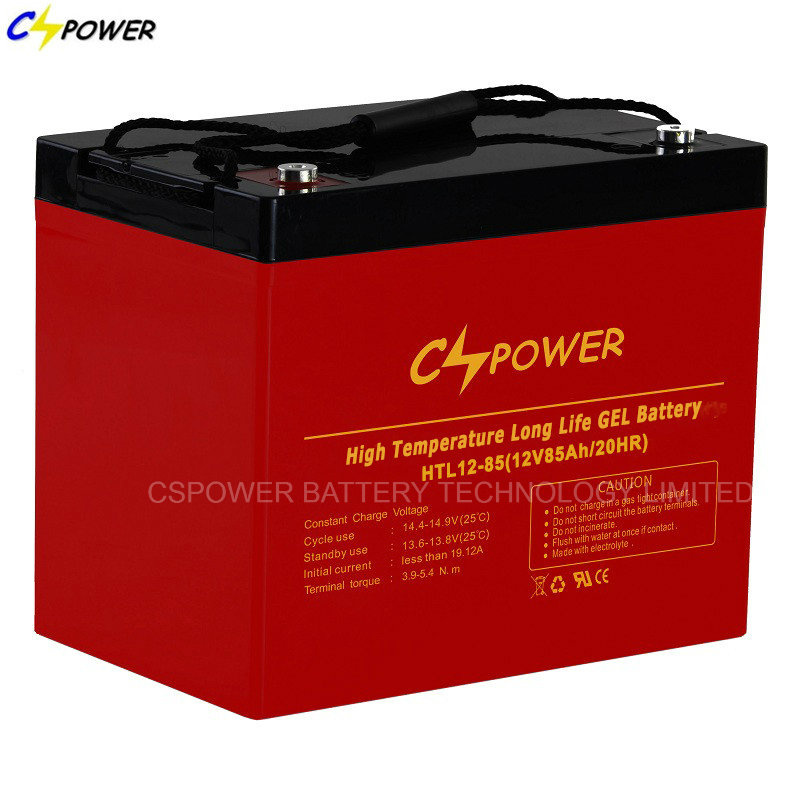

40degree High Temperature Gel Battery for Solar System, Htl12-85ah
| Price: |
US $ 65-80/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
HTL12-85 |
| Model: |
VRLA Gel Battery 12V75ah/85ah |
| Dimension: |
260*169*211*215mm |
| Weight: |
25kgs/ 26.1kgs |
| Warranty: |
3 Years |
| Expected Cycle Life: |
10-15years |
| Delivery Time: |
15days |
| Export Markets: |
Global |
| Application: |
Car, Bus, UPS, Electric Power, Lighting, Electric |
| Terminal: |
M8* 16mm |
| Sealed Type: |
Sealed Lead Acid Battery |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar/Wind/Telecom System |
| Nominal Voltage: |
2V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
VRLA Gel Battery 12V75ah 85ah |
| Electrolyte: |
Gel |
Product Description
High Temperature GEL Battery for Solar system, HTL12-85Ah
Characteristics of CSPOWER High Temperature Solar Gel Battery 12v
CS SERIES DEEP CYCLE VRLA AGM BATTERY
Voltage: 2V, 6V, 12V
Capacity: upto 2V3000Ah, 6V420Ah, 12V300Ah
Designed floating service life: 8-12 years @ 25 °C/77 °F.
Summary of CSPOWER High Temperature Solar Gel Battery 12v
CSPOWER Deep cycle series batteries are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle (deep cycle). The CSPOWER deep cycle battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, thus the CS range features 30% higher cyclic life with 10 years of float life when compared to the standard Duration range.
Features and Advantages of CSPOWER High Temperature Solar Gel Battery 12v
30% more cyclic life through innovation at the PAM additives
Long life expectancy of 10 years in floating condition
Thick flat plate with high Tin low Calcium alloy
Wide operating temperature range from -20 °C to 50°C
2%Low self-discharge rate
Very good deep cycle performance: up to 500 cycles @80% DOD
Excellent deep discharge recovery capability
Construction for CSPOWER High Temperature Solar Gel Battery 12v
Positive plate - Thick high Sn low Ca grid with special paste
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for high pressure cell design
Electrolyte - Dilute high purity sulfuric acid
Battery container and cover -Fire resistance ABS, water proof
Pillar seal - Two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor
Applications of CSPOWER VRLA Gel Battery 12v
Electric Powered Vehicles, Golf Cars and Buggies, Wheel Chairs, Power Tools, Electric Powered Toys, Control System, Medical Equipments, UPS systems, Inverter systems, Solar and Wind, Emergency systems, Security systems, and so on.
Charging voltage and settings of CSPOWER High Temperature Solar Gel Battery 12v
l . Constant voltage charging is recommended
2. Recommended float charge voltage: 2.27V/cell @20~25°C
3. Float voltage temperature compensation: -3mV/°C/cel l
4. Float voltage range: 2.27 to 2.30 V/cell @ 20~25°C
5. Cyclic application charge voltage : 2.40 to 2.47 V/cell @ 20~25°C
6. Max. charge current allowable : 0.25C
Complied standards for CSPOWER Batteries
1. IEC 60896-21/22
2. IEC 61427
3. ISO9001/14001/18001
4. Eurobat guide, long life
5. BS6290 part 4
6. GB/T 22473
7. CE
8. IATA and IMDG
Specification of CSPOWER High Temperature Solar Gel Battery 12v | CSPOWER MODEL | Voltage | Capacity | Dimension (mm) | Weight (kg) |
| (V) | (Ah) | Length | Width | Height | Total Height | (±3%) |
| HTL12-14 | 12 | 14 | 152 | 99 | 96 | 102 | 3.8 |
| HTL12-20 | 12 | 20 | 181 | 77 | 167 | 167 | 6.0 |
| HTL12-24 | 12 | 25 | 166 | 175 | 126 | 126 | 8.3 |
| HTL12-26 | 12 | 25 | 165 | 126 | 174 | 179 | 8.4 |
| HTL12-35 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 |
| HTL12-40 | 12 | 40 | 198 | 166 | 174 | 174 | 14.2 |
| HTL12-55 | 12 | 55 | 229 | 138 | 208 | 212 | 16.0 |
| HTL12-70 | 12 | 70 | 350 | 167 | 178 | 178 | 23.3 |
| HTL12-75 | 12 | 75 | 260 | 169 | 208 | 227 | 25.0 |
| HTL12-85 | 12 | 85 | 260 | 169 | 208 | 227 | 26.1 |
| HTL12-90 | 12 | 90 | 307 | 169 | 211 | 216 | 28.2 |
| HTL12-100 | 12 | 100 | 307 | 169 | 211 | 216 | 30.2 |
| HTL12-110 | 12 | 110 | 331 | 174 | 214 | 220 | 33.3 |
| HTL12-120 | 12 | 120 | 407 | 173 | 210 | 233 | 39.2 |
| HTL12-135 | 12 | 135 | 344 | 172 | 280 | 285 | 40.8 |
| HTL12-150 | 12 | 150 | 484 | 171 | 241 | 241 | 45.5 |
| HTL12-180 | 12 | 180 | 532 | 206 | 216 | 222 | 56.0 |
| HTL12-200 | 12 | 200 | 532 | 206 | 216 | 222 | 58.4 |
| HTL12-230 | 12 | 230 | 522 | 240 | 219 | 225 | 65.0 |
| HTL12-250 | 12 | 250 | 520 | 268 | 220 | 226 | 71.0 |
| HTL12-300 | 12 | 300 | 520 | 268 | 220 | 226 | 77.0 |
Factory produce of CSPOWER Deep cycle GEL Battery 12v 6v
