| Prod Model: |
MPO/MTP patch cord |
| Fiber Type: |
Single Mode or Multi-Mode |
| Connector Type: |
MPO/MTP |
| Feature: |
Low Insertion Loss, High Return Loss |
| Operating Wavelength: |
1300/850nm |
| Cable Diameter: |
0.9mm, 2.0mm, 3.0mm |
| Fiber Qty: |
8, 12, 24 Is Available |
| Polishing: |
PC, Upc, APC |
| Operating Temperature: |
-40°c~80°c |
| Cable Length: |
1m, 3m, 5m or Customized |
| Product Name: |
MTP/MPO Patchcord Cable |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
MTP / MPO |
| Sheath Material: |
Ofnr/LSZH/Ofnp |
Product Description

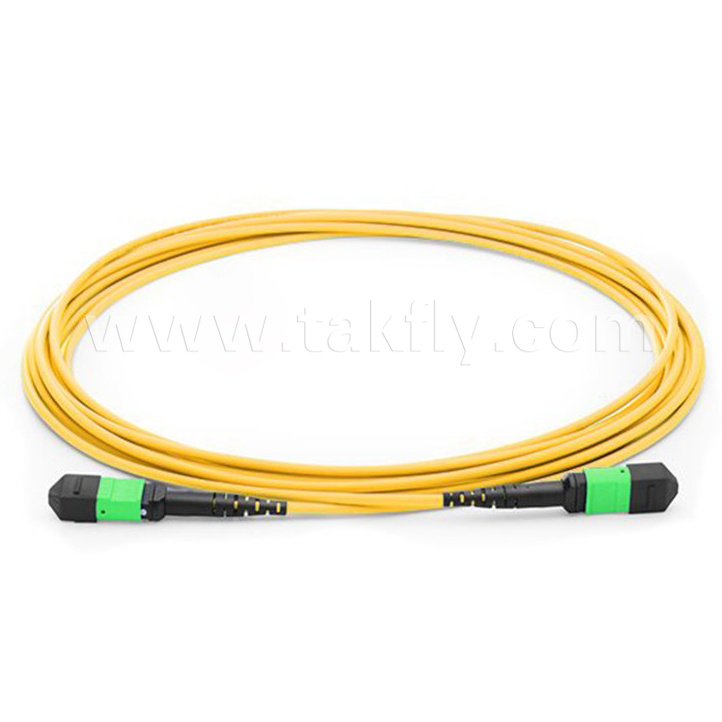

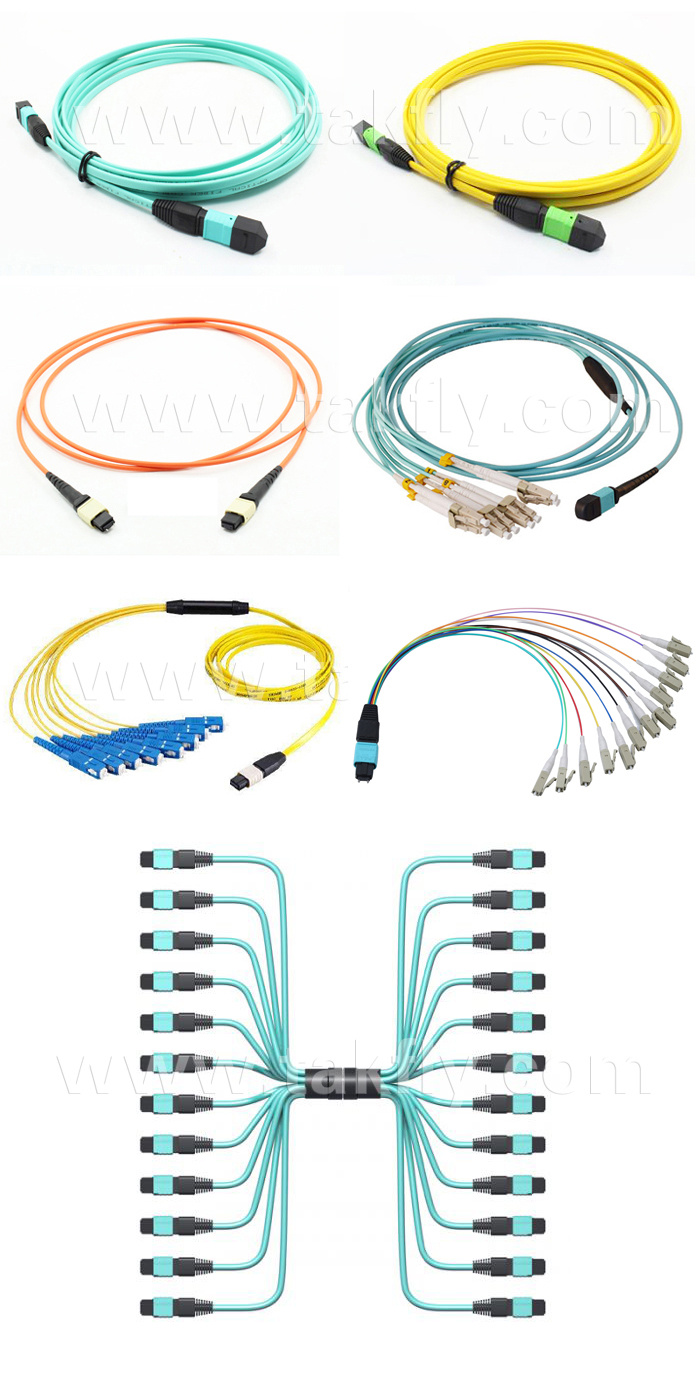

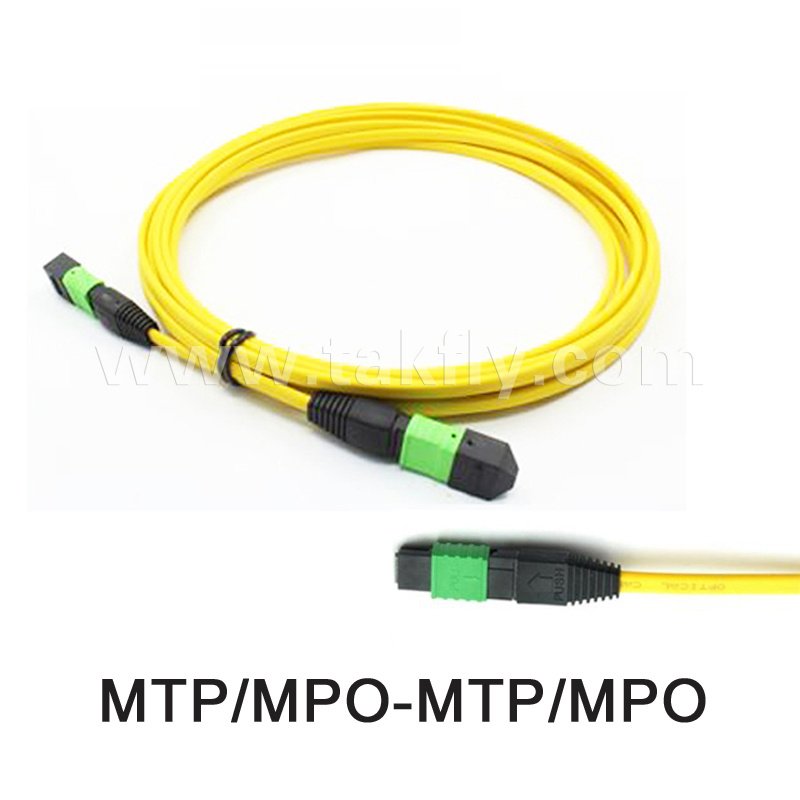

40G 8/12/24 Cores Singlemode MTP/MPO patchcord Description:The MT-RJ and MPO are the MT series. Small size, Multi-channel is the most prominent feature, which greatly facilitates the high-density wiring. The MT series connectors have been widely applied to the CATV, Multimedia, Gigabit Ethernet, active device interface, data processing networks, telecommunication networks, asynchronous Transmission Mode (ATM). The MT-RJ is duplex ferrule plug-jack (RJ-45) design and the MPO can be 24 fibers, the MPO patchcord cable can be ribbon fiber or breakout fiber, also, the MTP is available; the MT series patchcord have low insertion loss and high precision guide pins exact alignment.
Specifications:1, Small volume, High Density
2, Esay management
3, 8-24cores available
4, Low loss
5. Comply with Telcodia GR-326-CORE and RoHS
Features:1. SM or MM available; PC(plane) or APC(8 degree) available
2. Different IL index and various color available
3. Stable performance index by PIN fiexed position of connecting
4, 8, 12...144Cores for one connecter available
5. Maximum can be 288 cores each patchcord
6. Plug type connector with locking structure
7. Parallel connection, Cross connection, Couple cross connection, QSFP connection
8. High density which convenient for wiring and management system Comply with Telcordia GR-1435-CORE and RoHS standard
| Fiber Type/Grade | Insertion loss(dB) | Return Loss(dB) |
| Max IL | RL |
Multi-mode
4F,8F,12F,24F,48F,72F | 0.7 | >20 |
| Standard Single-mode 4F,8F,12F,24F | 0.8 | >50(APC),>30dB(PC) |
Low Loss Multi-mode
12F,24F | 0.5 | >20 |
Low Loss Single-mode
8F,12F,24F | 0.5 | >50(APC),>30dB(PC) |
Single-mode MT ferrule endface criteria
| Defect | Size | Core Area 0-9um | A Area 9-25um | B Area 25-125um |
| Light scratch | < 3um | 0 | 2 | No limit |
| Black scratch | < 3um | 0 | 0 | 1 |
| Small spot | < 2um | 0 | 3 | 10 |
| Big spot | < 5um | 0 | 0 | 1 |
Multi-mode MT ferrule endface criteria
| Defect | Size | A Area 0-50 or 65um | B Area 50 or 65-125um |
| Light scratch | < 3um | No limit | No limit |
| Black scratch | < 3um | 0 | 2 |
| Wide Scratch | < 5um | 0 | 1 |
| Small spot | < 2um | 5 | No limit |
| Big spot | < 5um | 0 | 3 |
MTP Connector endface geometry:
| Endface Geometry Requirements for MT Ferrule |
| Requirement | MM (50 & 62.5/125) | SM(APC) |
Surface Tilt Angle
Along X-Axis (Long Axis) | -0.2 / 0.2 degree | -0.2 / 0.2 degree |
Surface Tilt Angle
Along Y-Axis (Short Axis) | -0.2 / 0.2 degree | 7.8 / 8.2 degree |
| Fiber Height | 1000nm - 2500nm, Typical 2000nm | 1000nm - 2500nm, Typical 1500nm |
| Fiber Differential Height | <750nm | <600nm |
Radius of Curvature
Along X-Axis | >500 mm | >500 mm |
Radius of Curvature
Along Y-Axis | >50 mm | >50 mm |
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

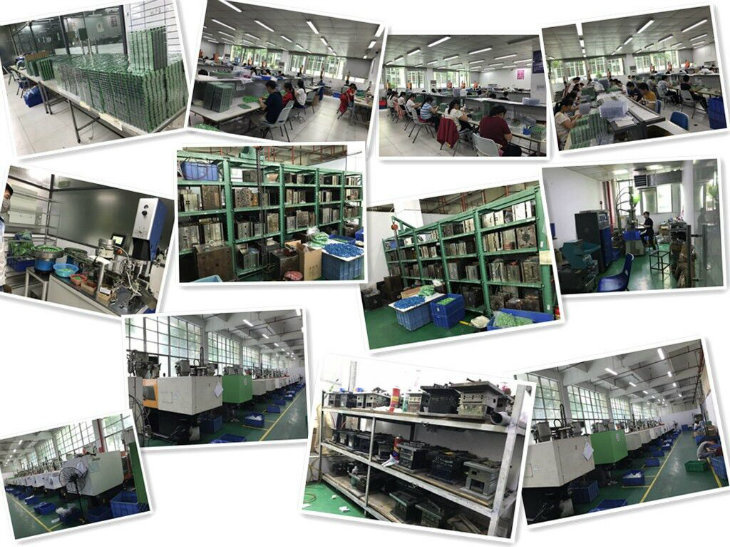

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
