40G MPO to MPO Singlemode OS2 Fibre Optical Patch Cable
| Price: |
US $ 36-41/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PN-435 |
| Color: |
Yellow |
| Connector Type: |
MPO Connector |
| Fiber Type: |
Singlemode |
| Polishing Type: |
APC |
| Data Transfer: |
40G |
| Fiber Count: |
12 Cores |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
MPO |
| Sheath Material: |
Plenum OFNP |
Product Description
40G MPO to MPO Singlemode OS2 Fibre Optical Patch Cable
Application:
√ MPO/MTP is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.
√ The data centra application with high dense degree environment;
√ The optical fiber to the building;
√ The internal connector application in fiber equipment such as Splitter, 40G/100G SFP and SFP.
MPO/MTP trunk cables
√ MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA, HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration.
√ MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM. The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up). The cable length belongs to a custom product, please kindly email your requirements to us!
Features:
√ With 12-fiber and 24-fiber MPO/MTP connector standard
√ Available in OS1/2, OM2, OM3 and OM4
√ Available in FC,LC, SC, ST, MU, and MTP
√ Interface polished type has PC, UPC and APC
√ Available in 12/24/36/48/72/96/144-fibers
√ 100% factory tested
√ Discrete connectors are heat-cured and use ceramic ferrules and sleeves
√ Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
√ Customized for length, staggering, connector type, breakout style, fiber count, and labeling fiber
Pre-terminated MPO/MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Product Specifications: | Connector A | MTP® Female (Pinless) | Connector B | MTP® Female (Pinless) |
| Fibre Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Polish Type | UPC to UPC | Mini Bend Radius | 30mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
| Jacket OD | 3.0mm | Cable Jacket | Plenum (OFNP) |
| Installation Tensile Load | 100N | Long-Term Tensile Load | 50N |
| Storage Temperature | -40ºC to +85ºC | Operating Temperature | -10ºC to +70ºC |
Quality Certification:
Quality and standards are the foundation of PUNO. We are dedicated to providing customers with the outstanding, standards-compliant products and services. PUNO has passed many quality system verification, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

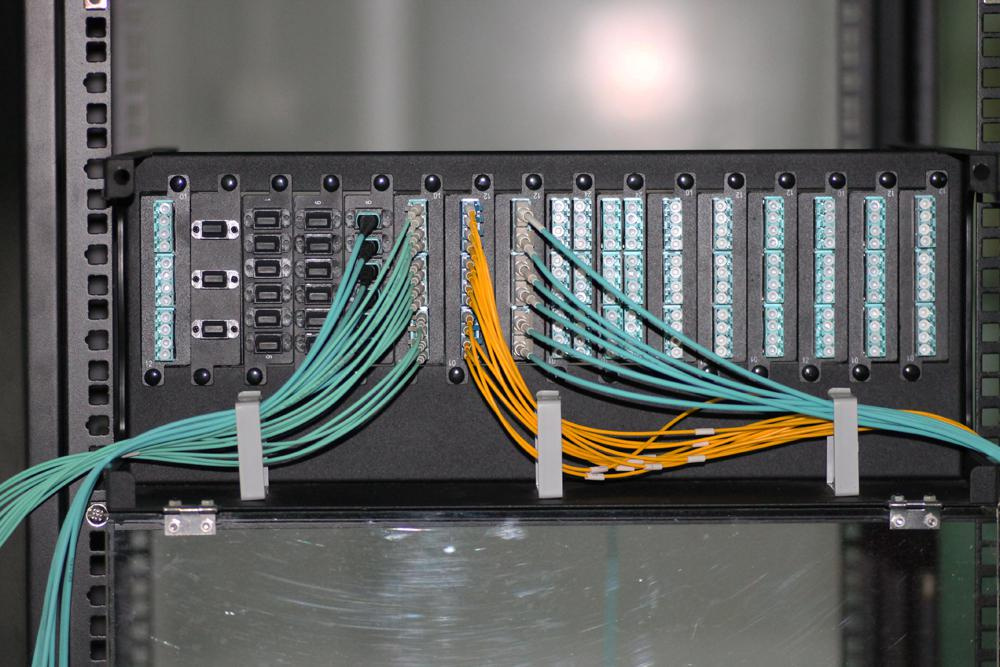

Highlights: | Dimension | H*W*D:1U*482(Including side bracket)*400mm |
| Material | Cold Roll Steel |
| Powder Coated | Black |
| Max Capacity | 4 x 6 Ports MTP |
Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.
Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.
MISSION
We work with passion to create faster connections between people, places, ideas and values.
VISION
Representing the excellence and values of Made In China worldwide.
VALUES
Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.
MARKET
Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation
EXPERTISE
More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.
PARTNERSHIP
China Mobile, China Union, China Telecom, Huawei, Foxconn.
