40Gbps Protocol 12 f. o. MT Ferrule Fiber MPO Optic mm OM3 Patch Cable

Name: 40Gbps Protocol 12 f. o. MT Ferrule Fiber MPO Optic mm OM3 Patch Cable
Brand: all-electronics-online.com
SKU: 733096632
Availability: InStock
Rating: 4.8 (45 reviews)

Price:	US $ 40-70/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	7753
Cable OD:	3.0mm
Color:	Aqua
Data:	40Gbps
Connector:	MTP Connector
Connector Brand:	USCONEC
Fiber Count:	12
Ferrule:	MT
Fiber Type:	Singlemode, SM
Application:	Probe
Type:	Multi-mode Fiber
Certification:	VDE
Connection Structure:	MTP, MPO

Product Description

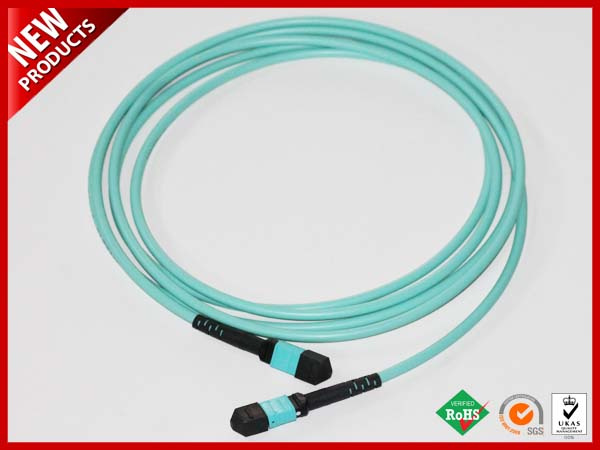

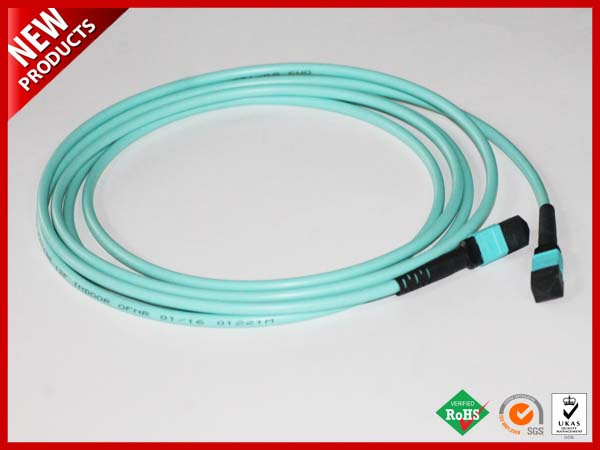

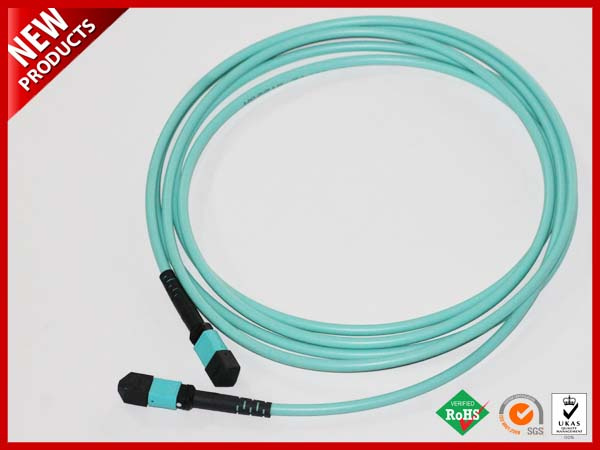

40Gbps Protocol 12 f.o. MT Ferrule Fiber MPO Optic MM OM3 Patch Cable

Products Overviews

PUNO's MTP^® trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centres and other high fibre environments reducing network installation or reconfiguration time and cost. They are used to interconnect cassettes, panels or MTP^® fanouts. MTP^® trunk assemblies are offered in fibre types in standard 12, 24 or 48 core versions using a compact and rugged micro cable structure. The compact cables optimise cableway use and improve airflow. These MTP^® trunks are built with highest quality components. Low loss Elite versions are offered featuring low insertion loss for demanding high speed networks where power budgets are critical.

Applications

√ Data Centre Infrastructures;
√ Telecommunication Infrastructures.

Keyed Characteristics

√ Grants a substantial space saving in Data Centre environments;
√ Reduction of installation time;
√ Excellent optical and mechanical properties;
√ 100% tested;
√ Compliance with the 40 and 100Gbps protocols.
√ Compatible with SFF8472.

Technical Attibutes

Short name	12/24F OM4 Violet Trunk Cables
Attenuation Coefficient [dB/km]	≤ 3.5 Max (850nm) ≤ 1.5 Max (1300nm) ≤ 2.7 Typ (850nm) ≤ 0.9 typ (1300nm)
Standards Compliance	TIA/EIA-568-C.3 and ISO/IEC 11801
Color Options	MM Elite (Violet)

Cable Performance

Fiber Type (ISO/IEC 11801)	50/125um, OM4, Violet
Attenuation Coefficient [dB/km]	≤3.5 Max (850nm) ≤1.5 Max (1300nm) ≤2.7 Typ. (850nm) ≤0.9 Typ. (1300nm)
Minimum Bandwidth: Overfilled Launch [Mhz-km]	≥1500 (850nm) ≥500 (1300nm)
Minimum Bandwidth: Laser Effective Modal Bandwidth[Mhz-km]	≥2000 (850nm)
Jacket Material	Riser - OFNR LSZH - Low Smoke Zero Halogen Plenum - OFNP

Connector Performance - MTP^®

Type and Color Code Connectors	Insertion Loss (IL)	Optical Return Loss (RL)	Operating Temperature
Multimode MTP^® Standard Connector	0.35 dB Typical (All Fibers) 0.75 dB Maximum (Single Fiber)^1,3	> 20 dB (0°Flat Polished)^2,3	-40ºC to 75ºC
1 IL test according to IEC 61300-3-4; 2 RL test according to IEC 61300-3-6; 3 Tested with proposed encircled flux launch condition on 50μm fiber & 850nm per IEC 61280-4-1.

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
