40Gig 12 Fibers High Density MTP OM3 Cable

Name: 40Gig 12 Fibers High Density MTP OM3 Cable
Brand: all-electronics-online.com
SKU: 819633415
Availability: InStock
Rating: 5 (36 reviews)

Price:	US $ 23-30/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-004
Color:	Aqua
Fiber Count:	12
Configuration:	Male
Fiber Type:	Multimode
Cable OD:	3.0mm
Outer Jacket:	OFNP
Polarity:	Key Up
Application:	Communication
Type:	Multi-mode Fiber
Certification:	ISO9001
Connection Structure:	MPO

Product Description

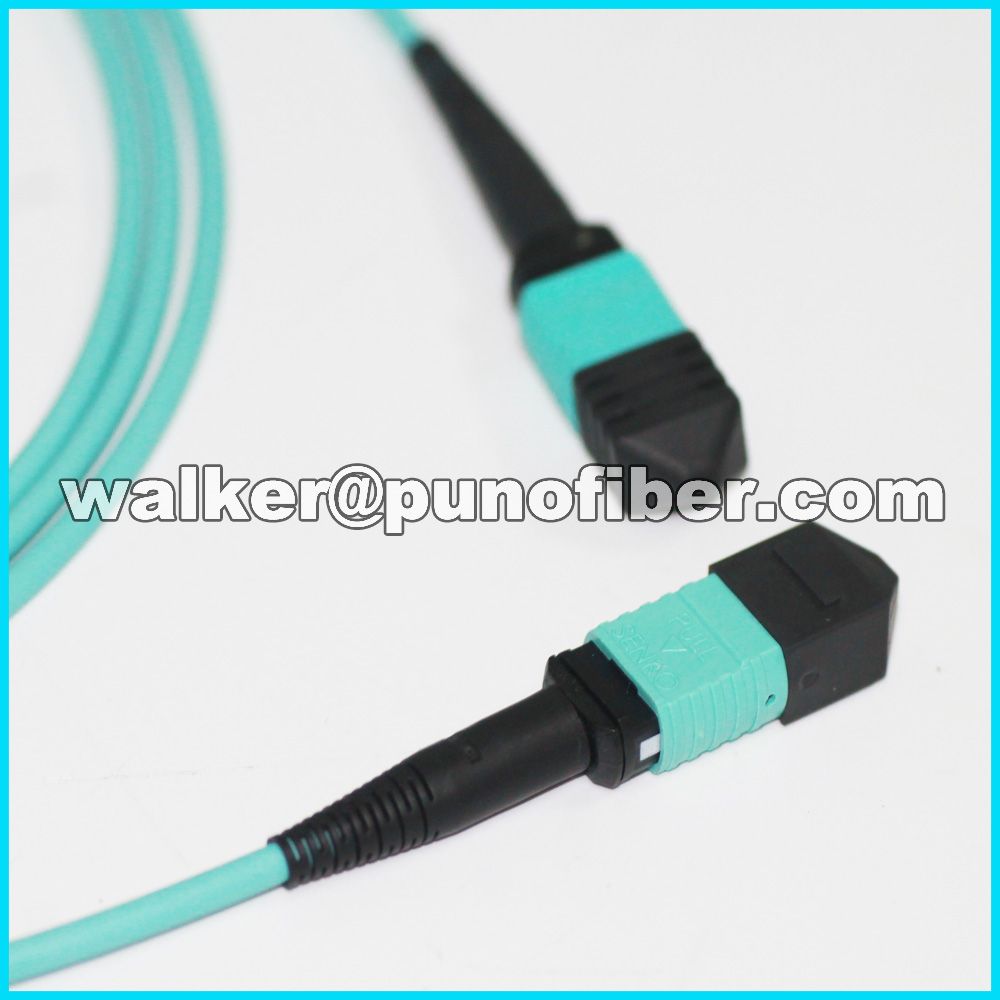

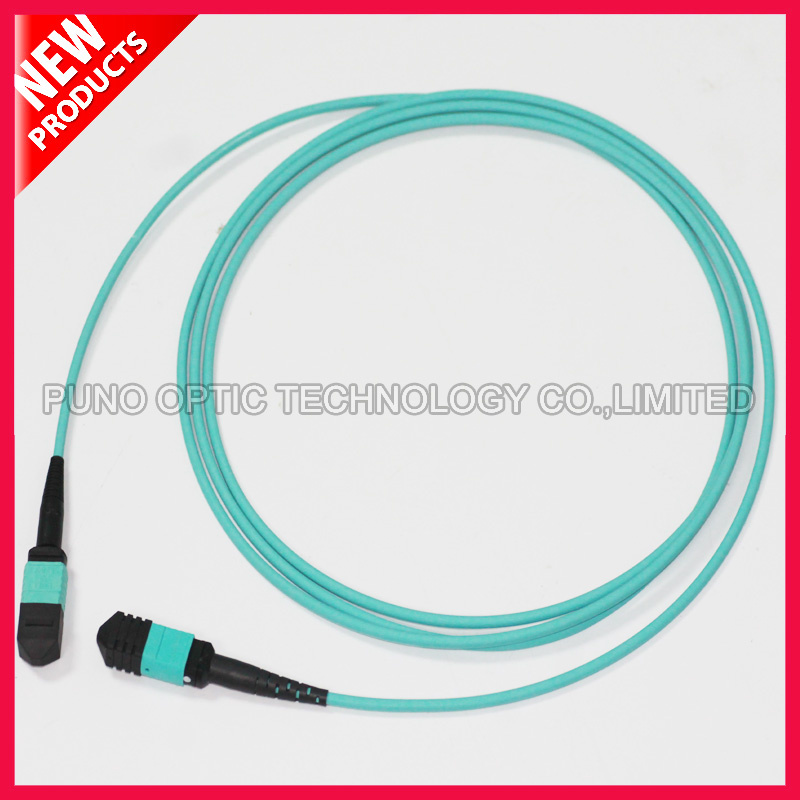

40Gig 12 Fibers High Density MTP OM3 Cable

PUNO's MTP^®Trunk Cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Feature:

√ Precision low-loss factory polished connector with integral splice and fiber clamp;
√ Simple and fast connector termination, with no adhesives or field polishing required;
√ Provisions for visual light source verification to achieve optimal splice transmission;
√ Fibers supported: OM1, OM2, OM3, OM4, SM;
√ Wide operating temperature range for thermally stable optical performance.

Application:

√ Intra-building backbone and horizontal fiber interconnections;
√ Inter-building OSP entrance terminations;
√ Data Center and WAN main cross-connect terminations;
√ Quick deployment remote data links;
√ Fiber to the Subscriber (FTTX);
√ Low reflection angle polish single-mode applications.

Technical Details:

Connector A	MTP^® Female (Pinless)	Connector B	MTP^® Female (Pinless)
Fibre Mode	OM4 50/125μm	Wavelength	850/1300nm
Polish Type	UPC to UPC	Mini Bend Radius	30mm
Insertion Loss	0.35dB Max (0.15dB Typ.)	Return Loss	≥20dB
Jacket OD	3.0mm	Cable Jacket	Plenum (OFNP)
Installation Tensile Load	100N	Long-Term Tensile Load	50N
Storage Temperature	-40ºC to +85ºC	Operating Temperature	-10ºC to +70ºC

Cable Configuration:

Quality Certification:

Quality and standards are the foundation of PUNO. We are dedicated to providing customers with the outstanding, standards-compliant products and services. PUNO has passed many quality system verification, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Highlights:

Lower Insertion Loss & Higher Performance
8 fibers used when mated with 40G QSFP+ transceivers.	0.35dB Low IL and stable signal transmission ensuring your network safety.	High-quality MTP connectors tested and guaranteed by 3D interferomete.
