40ka 3p+N Surge Protector

Name: 40ka 3p+N Surge Protector
Brand: all-electronics-online.com
SKU: 829804275
Availability: InStock
Rating: 4.5 (106 reviews)

Price:	US $ 11.65/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Surge Protector
Current Type:	AC
Usage:	SVC
Frequency:	Low Frequency
Phase:	4poles
Brand:	Kampa

Product Description

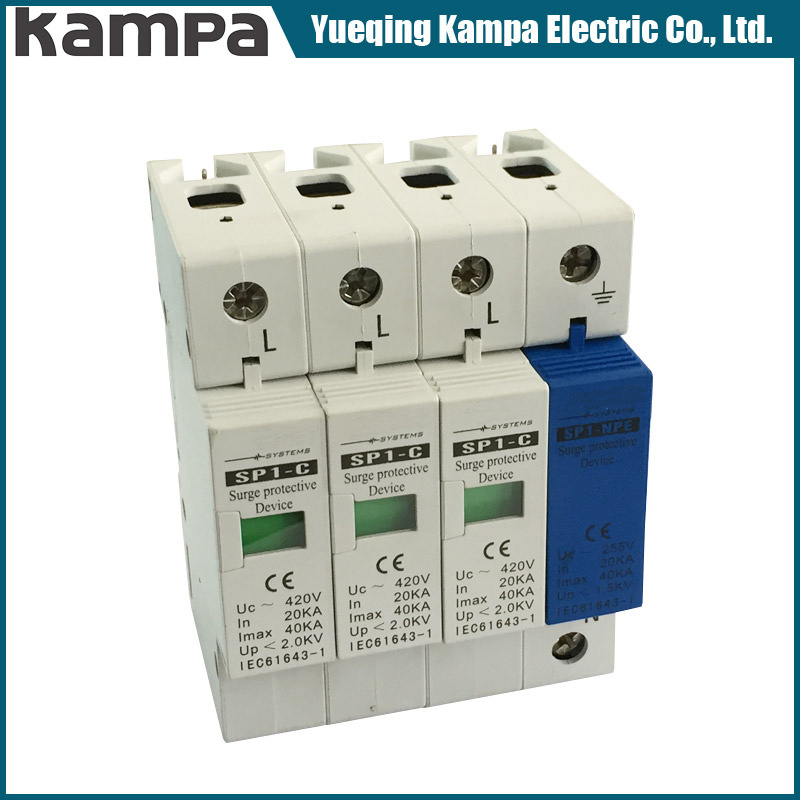

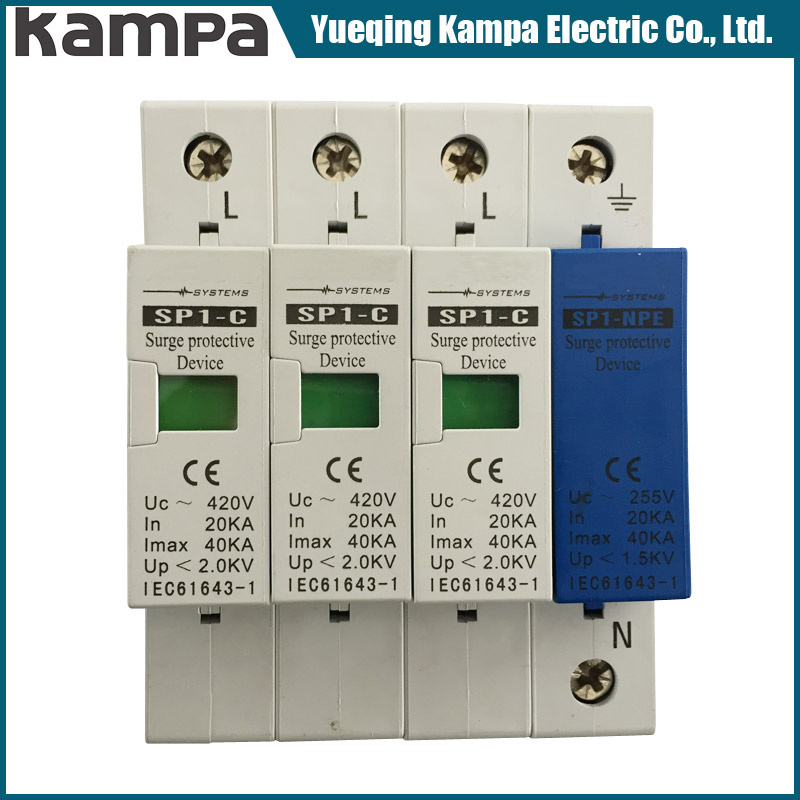

40ka 3p+N Surge Protective Device SPD

Product Photoes:

Specification

MODEL	LYD1-C40/280 3P+N
IEC 61643-1.SPD	II
Standard voltage Un	230/400V
Max continue working voltage (L-N) Uc(L-N) Uc	280V
Max continue working voltage (N-PE)Uc	255V
Standard release current(8/20)In	20kA
Max release current(8/20)Imax	40kA
Voltage protect level (L-N)Up	≤1.3kV
Voltage protect level (N-PE)Up	≤1.5kV
Response time(L-N)Ta	≤25ns
Response time(N-PE)Ta	≤100ns
Temperature Tu	-40°C - +80°C
Mini wire crosse section	2.5mm²
Max wire cross section	25mm²
Din Rail	35mm DIN RAIL
Shell material	PA66
Protection class	IP20

CERTIFICATES

Comply with IE60947-2,GB14048.2,GB14048.4 ,3C . CE ,ISO9001 .etc

Packaging & Shipping

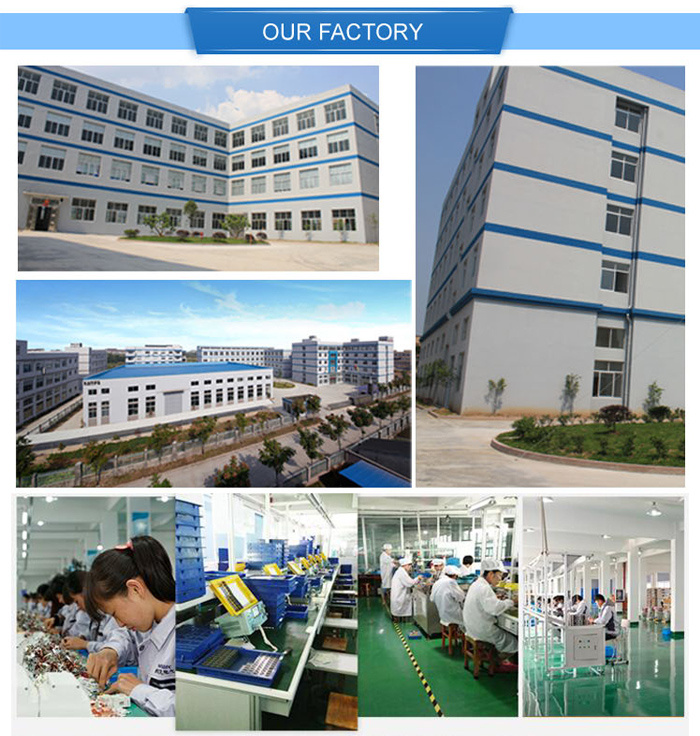

Company Information

Yueqing Kampa Electric Co.,Ltd. is Established in 2009.Has variety of goods ,such as

Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,

Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.

We are manufacturer and have ten years experience in Electrical industry.

Our Services

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.

Kama Electric Co., Ltd.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

As Kampa have more than 15 share-holding factories for relays, thermostat, heater, automatic voltage switch, temperature controller, push button, cable ties, cable gland, solar connector, use, circuit breaker, distribution box, High voltage transformer, vacuum circuit breaker, etc...

Meanwhile, Most of our goods have gained CE, UL, CCC, BV, SA, CB and SEMKO approval. And we can also offer OEM and ODM service because of our professional teams.

Especially speaking, Kampa CREAT Nonarc Electric Co., Ltd. In 2010.

It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.

Welcome to visit us for cooperation!

Kampa - will create a magnificent tomorrow together with you!
