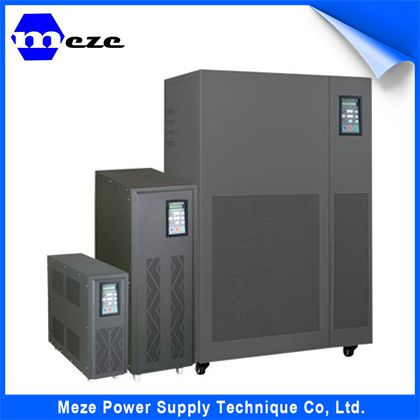

40kVA UPS Power System DC Online UPS with Battery
| Price: |
US $ 900-1491/Piece |
| Trade Terms: |
FOB,CFR,CIP |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
MZTI100/200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
380V/220V |
| Output Voltage: |
380V/220V |
| Color: |
Back |
| Power Factor: |
0.8 |
| Capacity: |
6kVA-40kVA |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage, Short Circuit, Overcurrent |
| Application: |
School,Hospital,Factory,Bank |
| Classification: |
Uninterruptible Power Supply |
Product Description
40kVA UPS power system Online UPS with battery
| Model | MZT206 | MZT210 | MZT212 | MZT215 | MZT220 | MZT225 | MZT230 | MZT240 |
| capacity | 6KVA | 10KVA | 12KVA | 15KVA | 20KVA | 25KVA | 30KVA | 40KVA |
| imput | Voltage | three phase 160 275VAC |
| frequency | 50(60) Hz ±5% |
| current(Max) | 21.6A | 36.1A | 43.2A | 53.6A | 72.2A | 89.7A | 108A | 144A |
| output | Voltage | single phase 220VAC,±1% |
| frequency | 50(60)HZ |
| load power factor | 0.8lag |
| distortion factor | <3% |
| peak factor | 31(Max) |
| battery | 192VDC | 192VDC |
| charging time | 8-10hours |
| overall efficiency | >90% |
| communication interface | RS232connector;RS485,DB9 |
| environment | temperature | 0-40ºC |
| altitude | <1000m |
| noise | <58dB |
| standard | output and input | termianl |
| Weight(kg) | 70 | 85 | 95 | 120 | 160 | 190 | 230 | 270 |
| Dimenson(mm) | 230*580*700 | 310*590*870 | 410*670*935 | 730*455*1180 |
MZT100/200 series are 220 v, of Single-Input Single-Output ,Three-input single-output 380 v / 220 v UPS;Is designed for data center, the network computer room, intelligent precision
equipment designed for high-performance sinusoidal uninterruptible power supply, its high
reliability for the financial, telecommunications, insurance, transport, taxation, military, securi ty,
energy, education, government, manufacturing, business and other industries has provided
important power protection.Single into single out technical features
High reliability design and ensure the stable operation of the network system
Based on the advanced microprocessor (MCU) control technology, guarantee the availability
and reliability of system;
Pure on-line double transform topology architecture design, provide the best power supply
quality.
Using pulse width modulation SPWM, IGBT power module and output isolation transformer,
ensure the UPS output from the power grid volatility and the interference of noise;
using the advanced phase-locked synchronization technology and electronic static bypass
switch, output zero switching time, meet the requi rements of high standard of precision
equipment for power supply, ensure the continuity of load power supply;
Goodwill of the man-machine interface and network management function, make the
man-machine communication zero distance
1.Have a variety of sound-light alarm function, clear and concise;
2.LCD liquid crystal display interface, provide UPS accurate operation parameters and working
conditions;
3.Through RS232 interface, cooperate with UPS intelligent monitoring software, can be instant
communication with PC, all kinds of parameters and working state of the UPS system clearly
displayed on the PC communication interfa ce, by setting, the computer can directly control
of UPS systems for a variety of functions;
4.With RS485 interface, dry DB9 node interface, can be optional functions such as external
SNMP adapter;
