| Prod Model: |
QW600-040-N |
| Input Voltage: |
AC100-240V 50/60Hz |
| Desktop Type: |
Yes |
| Type Of Battery: |
Ni-MH Battery |
| Delivery Date: |
15days |
| Warranty: |
One Year |
| Type: |
Ni-Cd Battery |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
60V |
Product Description

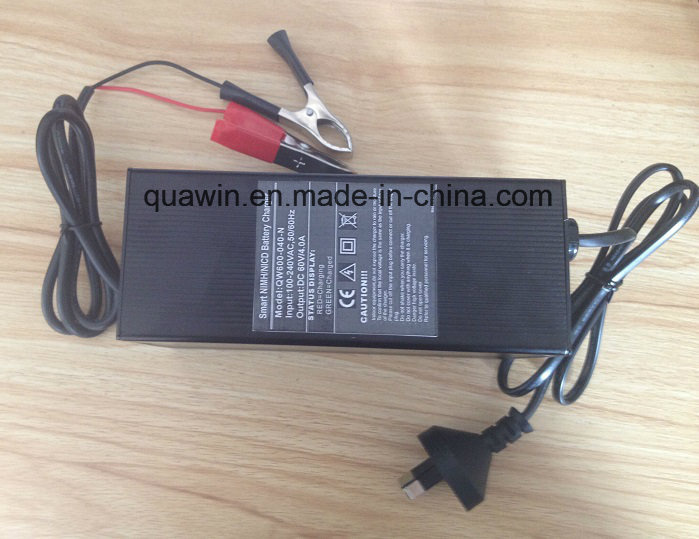

40 Cells 48V NIMH NICD Battery Pack Charger(60V 4A)
Quick Detail:
Brand Name: QUAWIN
Model Number: QW600-040-N
Use: 40 Cells 48V NIMH NICD Battery Pack
Type: Electric
Place of Origin: Guangdong China (Mainland)
Battery charger: Automatic battery charger 60V
Color: Black
Input voltage: 100-240VAC 50/60Hz
Input Current: Max 3A
Output voltage: 60V
Output current: 4A
Output power: 180W
Charge mode: MCU control charging process to avoid over charge
Output Connector: DC Jack, Small crocodile clip, Cigar lighter, XRL, Ring terminal
Specifications:
40 Cells 48V NIMH NICD Battery PACK
Features:
Charging mode: CC- CV(Constant Current- Constant Voltage)
High efficiency and low power consumption
Stabilized output and low noice
Power efficiency: 80%(min. ) at full load, 110Vac or 230Vac 40Hz.
Operating temperature: 0C ~ 45C
Storage temperature: -20C ~ 70C
Operating humidity: 5%~90%RH
Specification:
Input: AC 100-240V 50-60Hz 1.0A
Output: DC 60V
Charging current: 4A
Model Dimension: 152.5*63*45mm(800g)
Carton Size: 460*420*240mm(900g)
Safety protections:
Over Voltage protection
Short Circuit protection
Polarity error protection
Over power protection
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
Charging: RED,
Protection: RED Blinking
No battery or Charging finished(Trickle on): GREEN
Output short or battery poles wrong: RED Blinking
ITEM |
QW240-070-N |
QW240-080-N |
QW270-060-N |
QW270-070-N |
QW270-080-N |
QW300-060-N |
Output voltage: |
24V |
24V |
27V |
27V |
27V |
30V |
Rated output current: |
7A |
8A |
6A |
7A |
8A |
6A |
Output power: |
168W |
192W |
162W |
189W |
216W |
180W |
ITEM |
QW300-070-N |
QW300-080-N |
QW330-050-N |
QW330-060-N |
QW330-070-N |
QW330-080-N |
Output voltage: |
30V |
30V |
33V |
33V |
33V |
33V |
Rated output current: |
7A |
8A |
5A |
6A |
7A |
8A |
Output power: |
210W |
240W |
165W |
198W |
231W |
264W |
ITEM |
QW360-050-N |
QW360-060-N |
QW360-070-N |
QW360-080-N |
QW390-040-N |
QW390-050-N |
Output voltage: |
36V |
36V |
36V |
36V |
39V |
39V |
Rated output current: |
5A |
6A |
7A |
8A |
4A |
5A |
Output power: |
180W |
216W |
252W |
288W |
156W |
195W |
ITEM |
QW390-060-N |
QW390-070-N |
QW420-040-N |
QW420-050-N |
QW420-060-N |
QW420-070-N |
Output voltage: |
39V |
39V |
42V |
42V |
42V |
42V |
Rated output current: |
6A |
7A |
4A |
5A |
6A |
7A |
Output power: |
234W |
273W |
168W |
210W |
252W |
294W |
ITEM |
QW450-040-N |
QW450-050-N |
QW450-060-N |
QW480-040-N |
QW480-050-N |
QW480-060-N |
Output voltage: |
45V |
45V |
45V |
48V |
48V |
48V |
Rated output current: |
4A |
5A |
6A |
4A |
5A |
6A |
Output power: |
180W |
225W |
270W |
192W |
240W |
288W |
ITEM |
QW510-030-N |
QW510-040-N |
QW510-050-N |
QW540-030-N |
QW540-040-N |
QW540-050-N |
Output voltage: |
51V |
51V |
51V |
54V |
54V |
54V |
Rated output current: |
3A |
4A |
5A |
3A |
4A |
5A |
Output power: |
153W |
204W |
255W |
162W |
216W |
270W |
