40W 1.0A Constant Current EU LED Power Supply

Name: 40W 1.0A Constant Current EU LED Power Supply
Brand: all-electronics-online.com
SKU: 813860995
Availability: InStock
Rating: 4.6 (123 reviews)

Price:	US $ 5.35-8.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD042-1SCF43-1050
Output Power:	40W
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	90~264VAC
Pack Sealing Size:	156X42X30 mm
Brand:	Fsp-Powerland

Product Description

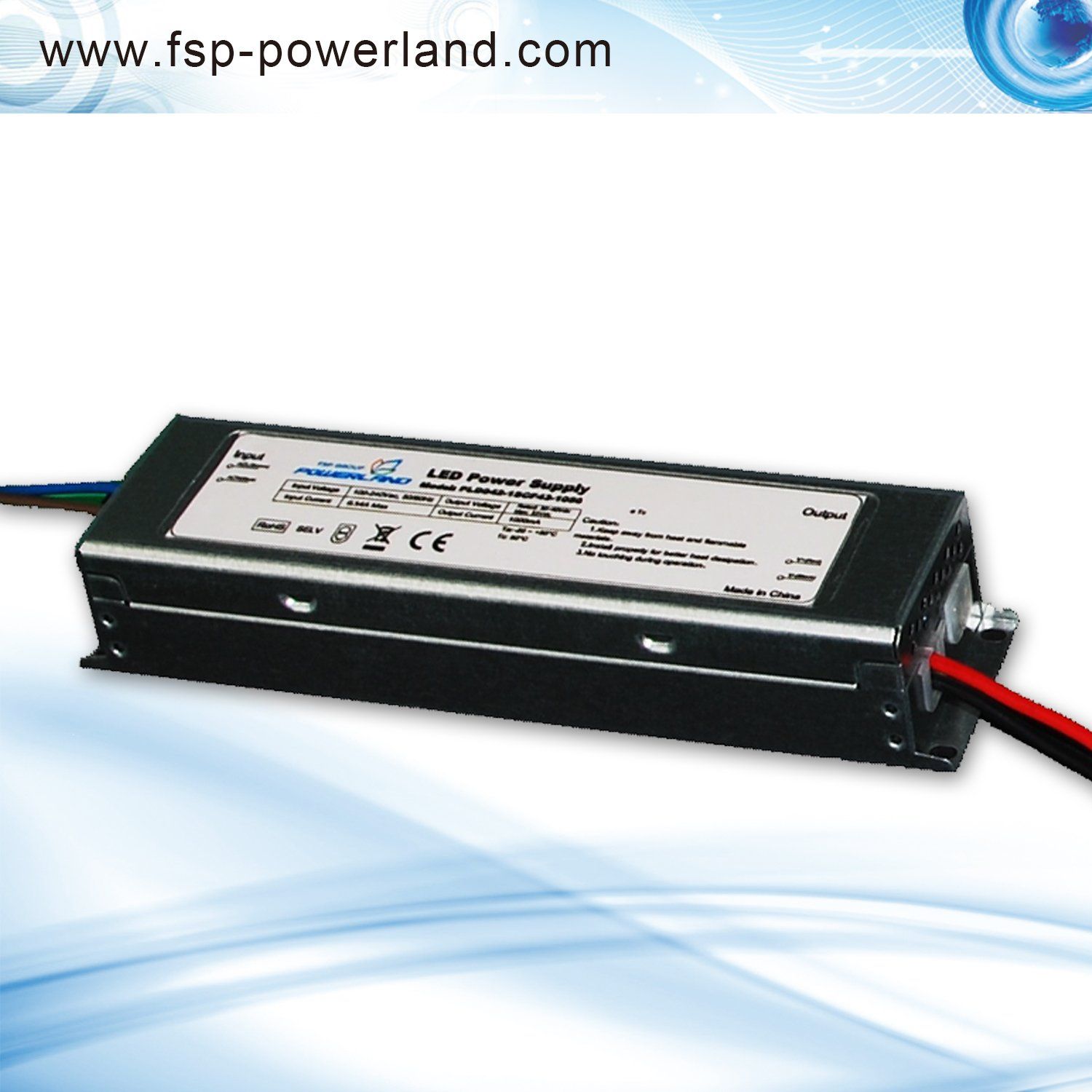

40W 1.0A Constant Current EU LED Power Supply

PLD042-1SCF43-1050 offers 40W constant current drivers with 90~264Vac input.
The output current of this series is up to 1.0A, and designed for indoor applications.

Applications
Indoor LED lights
Downlights, spotlights, LED panels

Features
50,000 hours lifetime at 55ºC Tcase
3years warranty at 55ºC Tcase
Constant current output
Safety according to EN61347-1
EMC according to EN55015
Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD042-1SCF43-1050
Output Voltage	30~40V
Output Current	1.0A
Output Power	40W
Max. Current Ripple	300mA
Voltage Range	90~264Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.54A
Max. Input Power	50W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	87%
Max. Open Circuit Voltage	55V
THD	<20% @ 230Vac & 90~100% load
Protections	OVP, OCP, SCP
Environmental Protection	IP20
Working Temperature	-25~+50ºC
Max. Case Temperature	90ºC
Surge Protection	1kV
Agency Approbations	EN61347-1
Electromagnetic Compliance	EN55015
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	156x42x30 mm
Mounting Length	163 mm
Overall Length	170 mm
Weight	0.25 kg
Life Time	50,000 hours @ full load, 55ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
