40W 1.0A LED Driver with Full Range for Lighting

Name: 40W 1.0A LED Driver with Full Range for Lighting
Brand: all-electronics-online.com
SKU: 798499835
Availability: InStock
Rating: 5 (116 reviews)

Price:	US $ 5.35-8.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD042-1SCF43-1050
Output Power:	40W
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	90~264VAC
Pack Sealing Size:	156X42X30 mm
Brand:	Fsp-Powerland

Product Description

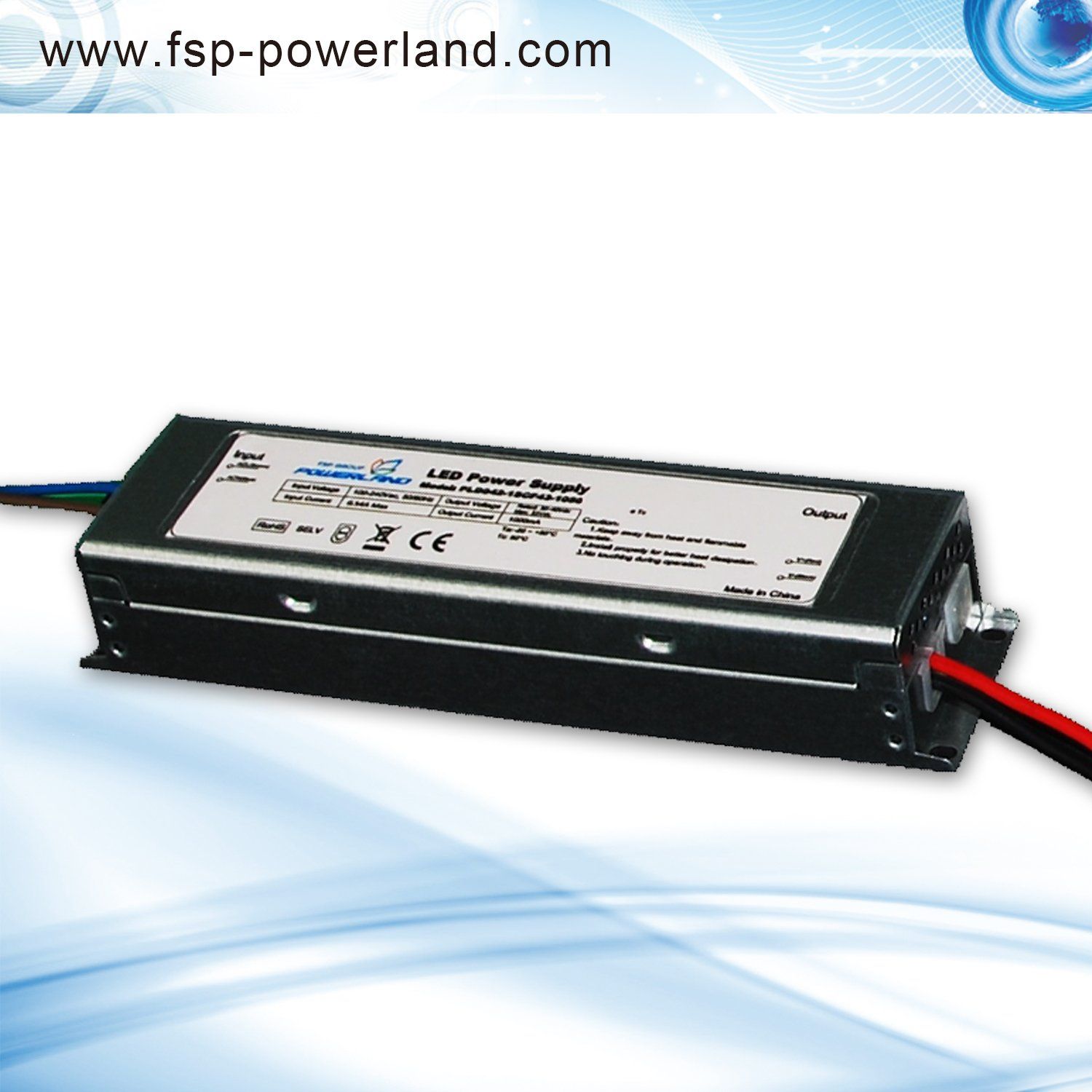

40W 1.0A LED Driver with Full Range for Lighting

PLD042-1SCF43-1050 offers 40W constant current drivers with 90~264Vac input.
The output current of this series is up to 1.0A, and designed for indoor applications.

Applications
Indoor LED lights

Downlights, spotlights, LED panels

Features
50,000 hours lifetime at 55ºC Tcase

3years warranty at 55ºC Tcase

Constant current output

Safety according to EN61347-1

EMC according to EN55015

Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD042-1SCF43-1050
Output Voltage	30~40V
Output Current	1.0A
Output Power	40W
Max. Current Ripple	300mA
Voltage Range	90~264Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.54A
Max. Input Power	50W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	87%
Max. Open Circuit Voltage	55V
THD	<20% @ 230Vac & 90~100% load
Protections	OVP, OCP, SCP
Environmental Protection	IP20
Working Temperature	-25~+50ºC
Max. Case Temperature	90ºC
Surge Protection	1kV
Agency Approbations	EN61347-1
Electromagnetic Compliance	EN55015
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	156x42x30 mm
Mounting Length	163 mm
Overall Length	170 mm
Weight	0.25 kg
Life Time	50,000 hours @ full load, 55ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

Performance Characteristics

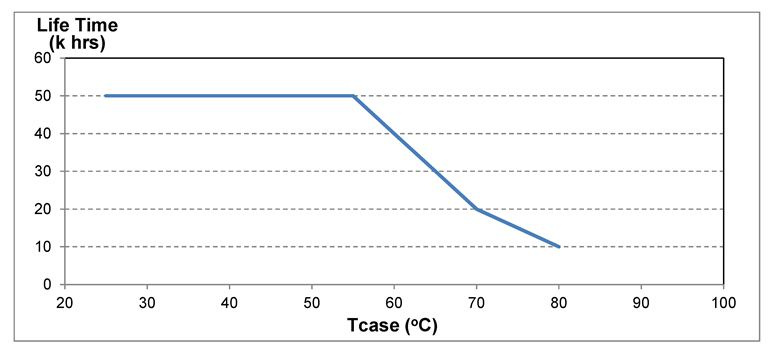

Life Time vs. Case Temperature

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
