| Prod Model: |
LPS-12E40C |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
40W |
| Input Voltage: |
220V |
| Output Voltage: |
12V/24V |
| Power Factor: |
Low |
| Efficiency: |
85% |
| IP Rating: |
IP 67 |
| Certificates/Standards: |
CE |
| Weight(Kg): |
0.9500 |
| Packing Information: |
10 PCS/ Carton, G.W 9.5 Kg |
| Dimensions(L*W*H): |
164*32*25mm |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Certification: |
Bis |
| Power Supply Voltage: |
220V |
| Brand: |
Neonpro |
Product Description

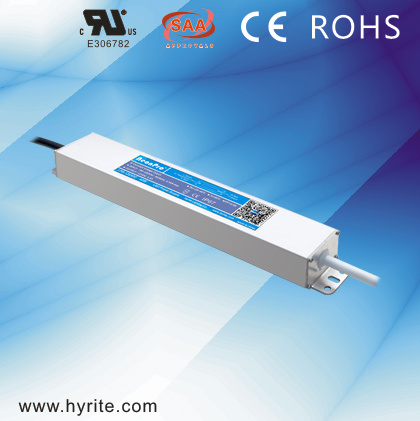

12V 40W Slim Aluminum Single-output led drivers ip67 with CE Brief Introduction of the LED driver : *External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Slim body, special design for application with narrow space, such as ceiling LED Strip back light, LED light box...
*Fully sealed&waterproof, IP67
*Constant Voltage output; 100% burn-in test*24V is available,Price is the same as 12V.*Loading 80% is good for work of LED Power Supply.
*Efficiency>0.85, CE TUVTrade Terms of the LED driver : *MOQ>1
*Welcome OEM/ODM Service
*Port:Guangzhou
*Available trade terms:FOB, CIF ,CFR, EXW.
*Payment Method:L/C,T/T,Western Union etc.*Delivery Time: 1-2 days for Sample Order
10-15 days for Normal Order Technical Specs of the LED driver : | Model no. | LPS-12E40C |
|---|
| Input voltage | 220 VAC 50/60 Hz |
|---|
| Max. power | 40 W max |
|---|
| Output type | Constant voltage |
|---|
| Dimming | No |
|---|
| Built-in active PFC | No |
|---|
| Power factor | Low |
|---|
| Efficiency | 85% |
|---|
| AC inrush current(max.) | Cold start, 40A@230VAC |
|---|
| Output voltage | 12VDC ± 5% |
|---|
| Output current | 3.33A max |
|---|
| Overload protection | 105% hiccup mode, auto-recovery |
|---|
| Over voltage protection | 120% rated output voltage |
|---|
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
|---|
| Operating temperature | -25~40 ºC |
|---|
| Installation | Outdoor waterproof |
|---|
| IP rating | IP 67 |
|---|
| Cooling | Free air convection |
|---|
| Certificates/standards | CE TUV |
|---|

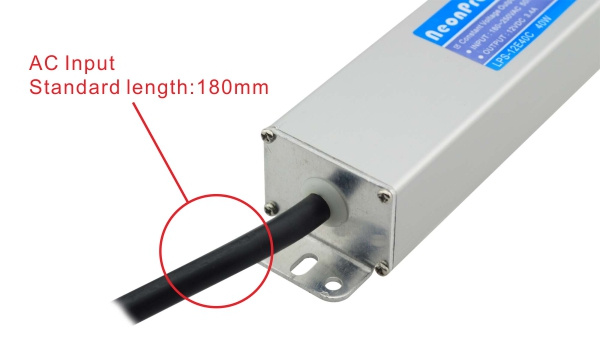

| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm) |
|---|
| Dimensions(L*W*H) | 164*32*25mm |
|---|
| Weight(kg) | 0.9500 |
|---|
| Packing information | 10 Pcs/ Carton, G.W 9.5 KG
|
|---|
Detailed Pictures
