40W 12V Waterproof LED Module Driver with Ce, Bis

Name: 40W 12V Waterproof LED Module Driver with Ce, Bis
Brand: all-electronics-online.com
SKU: 772531915
Availability: InStock
Rating: 4.7 (83 reviews)

Price:	US $ 5.35-5.94/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E40C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	40W Constant Voltage LED Driver
Output:	40W
Input Voltage:	170-250V
Output Voltage:	12V
Power Factor:	0.65
Efficiency:	88 %
IP Rating:	IP67
Weight(Kg):	0.28kg
Packing Information:	50 PCS/ Carton
Operating Temperature:	-25~50
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Bis
Power Supply Voltage:	AC170-250
Brand:	Neonpro

Product Description

40W 12V Waterproof Constant Voltage LED Module Driver with CE, BIS Certification

Feature of 40W constant voltage LED driver:
1. High efficiency, more electricity saving than regular power supply.
2. Aluminum housing, good for thermal removal, longer service life.
3. Seamless aluminum housing, fully sealed and waterproof, IP67.
4. Slim body, special design for application with narrow space.
5. Compact size, easy for installation.

Application of 40W constant voltage LED driver:
LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting
Details: Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…

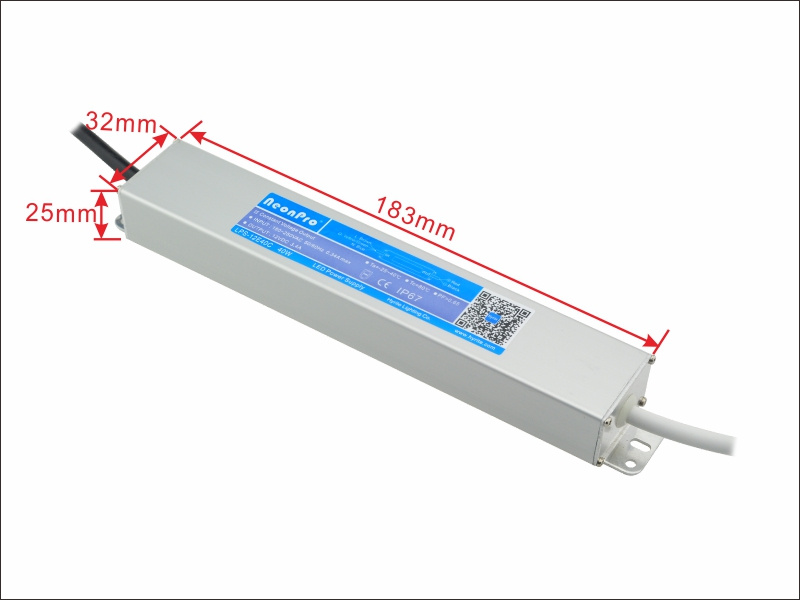

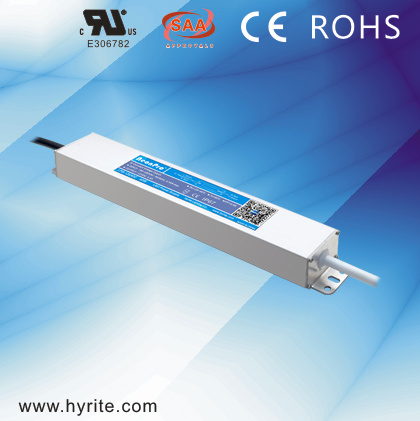

Products pictures of 40W constant voltage LED driver:

Specification of 40W constant voltage LED driver:

Model no.	LPS-12E40C
Input voltage	170-250 VAC 50/60 Hz
Max. power	40W
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	88%
Output voltage	12VDC ± 5%
Output current	3.3A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Operating temperature	-25~50 ºC
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE, SAA, SASO

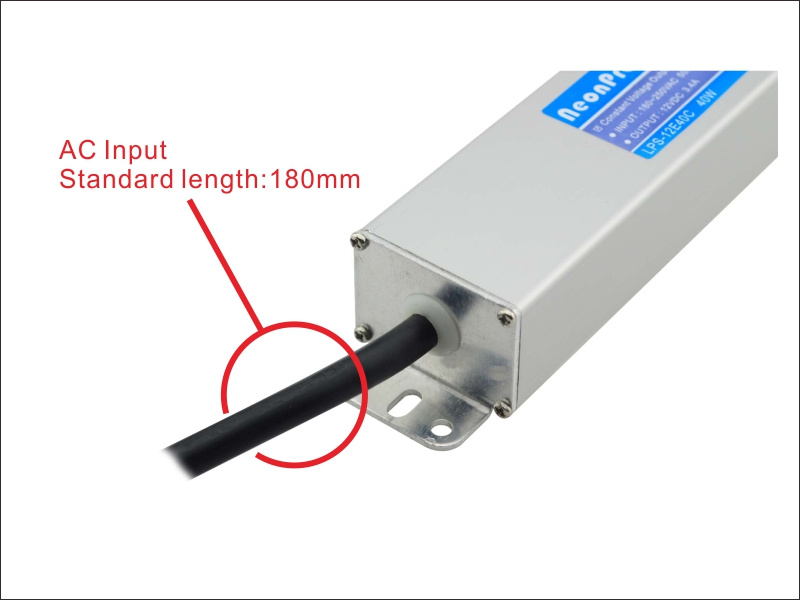

Connection input/output	Input: 0.75mm² x 3 (18cm) / Output: 0.75mm² x 2*4 (18cm)

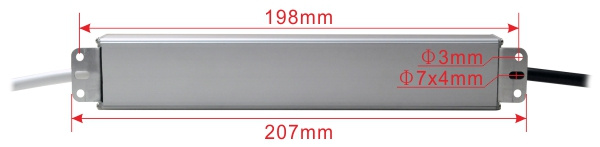

Dimensions(LWH)	2103526 mm

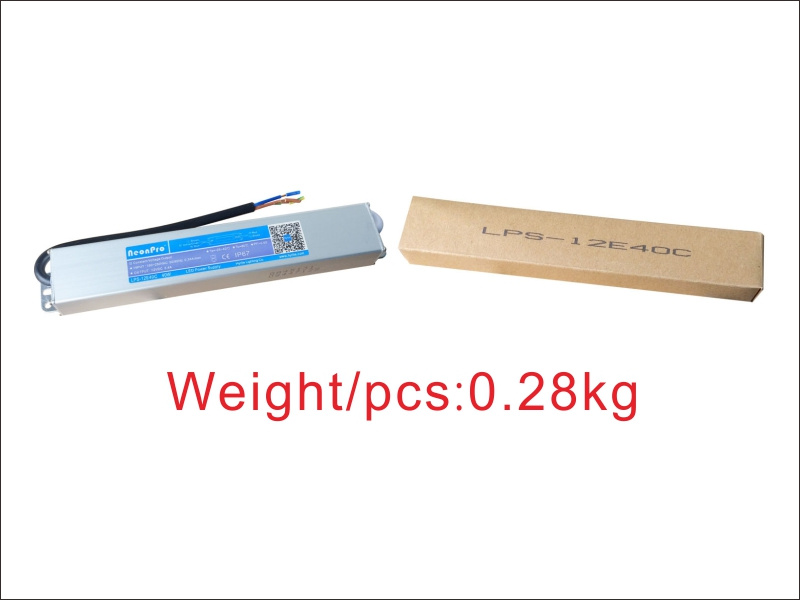

Weight(kg)	0.36
Packing information	50Pcs/ Carton, G.W: 15KG

FAQ of 40W constant voltage LED driver:
1. Shipment:
Ocean or air transportation, international express

2. Normal lead time:
1 day for in stock and 10-15 days for out of stock product

3. Price term:
FOB, C&F, EXW
30% before production, 70% before shipment.

4. Supply ability:
50000 units/month

5. MOQ:
10 units(samples are avilable)

6. Discounts :
We offer discount for big bulk.

7. OEM and ODM service are avilavle.

Contacts:
Sales Representative: Wing Xu

Hyrite Lighting Co. (NeonPro)

Tel: +86(757)88382138 (Ext.333); Fax: +86(757)81200369

More picture of 40W constant voltage LED driver/Hyrite Lighting Co.

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
