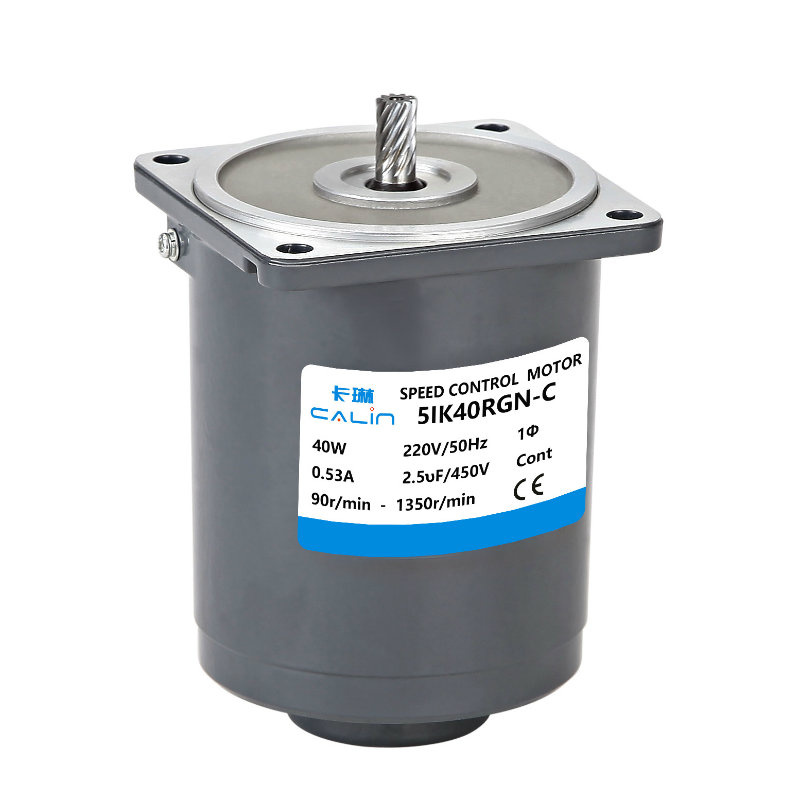

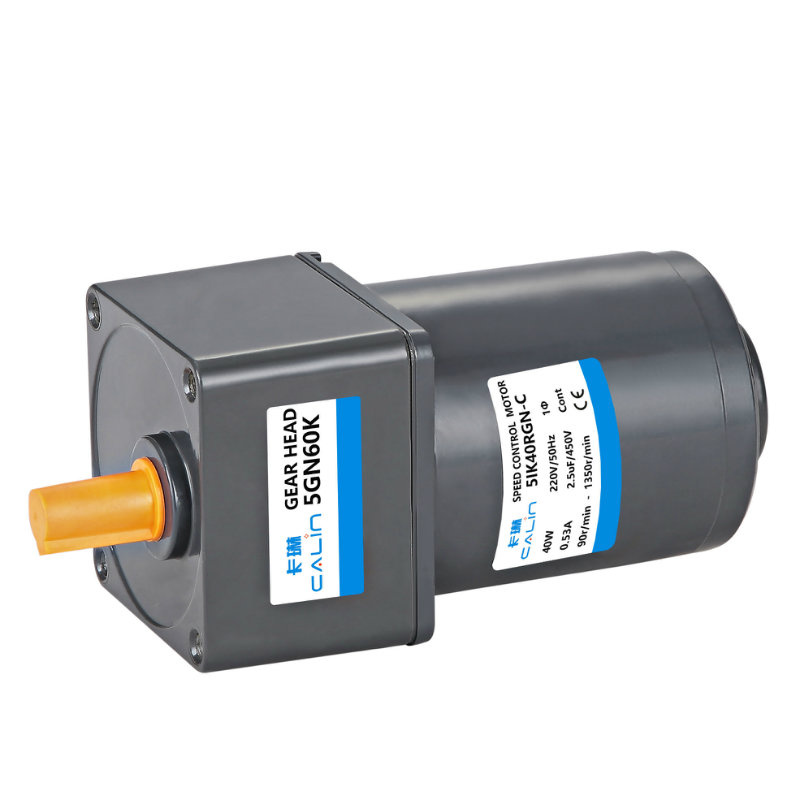

40W 220V AC Geared Motor with Ratio 1: 60 with Reducer

Name: 40W 220V AC Geared Motor with Ratio 1: 60 with Reducer
Brand: all-electronics-online.com
SKU: 832814245
Availability: InStock
Rating: 4.4 (76 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	5IK40RGN-C/5GN60K
Frequency:	50Hz/60Hz
Function:	Control
Number Of Stator:	Single-Phase/Three Phase
Number Of Poles:	2p/4p
Certification:	Ce, RoHS, UL
Brand:	Calin

Product Description

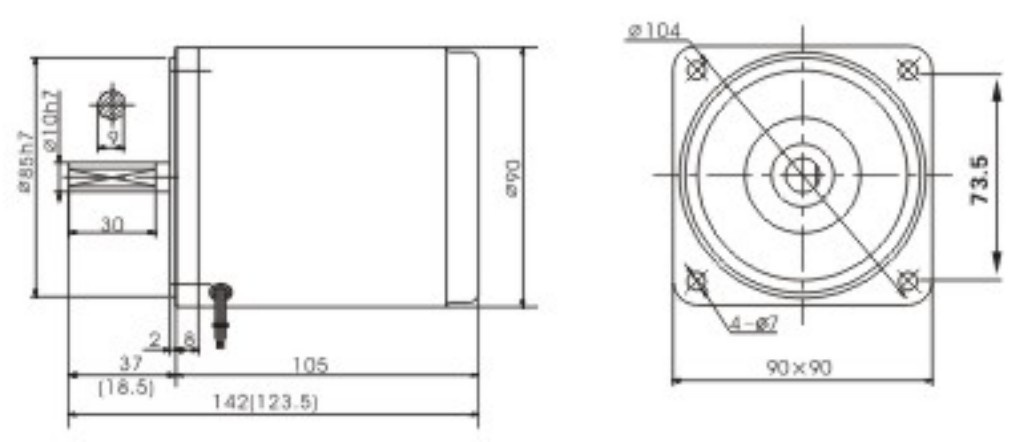

Motor Overall Dimension

The value in the()is the value of small gear shaft motor

List of Motor Characteristics

^{Model of Motor}		^Output	^Voltage	^Frequency	^Poles	^Duty	^Rated				^{Starting Torque}		^Capacitor/Ve
^{Model of Motor}		^Output	^Voltage	^Frequency	^Poles		^Speed	^Current	^Torque		^{Starting Torque}		^Capacitor/Ve
^Motor	^{Motor with gear shaft}	^w	^V	^Hz	^P		^r/min	^A	^N.m	^kgf.cm	^N.m	^kgf.cm	^μF/VAC
5IK40A-A	5IK40GN-A	⁴⁰	^1PH110	⁵⁰	⁴	^CONT	¹³⁵⁰	0.64	0.29	2.85	0.25	2.50	10.0/250
5IK40A-C	5IK40GN-C	⁴⁰	^1ph220	⁵⁰	⁴	^CONT	¹³⁵⁰	0.32	0.29	2.85	0.28	2.50	2.5/450
5IK40A-S	5IK40GN-S	40	3ph220	50	4	^CONT	1300	0.38	0.29	2.85	0.28	2.50	/
5IK40A-U	5IK40GN-U	40	3ph380	50	4	^CONT	1300	0.22	0.29	2.90	1.15	11.5	/
5IK40A-D		40	^1ph220	50	2	^CONT	2750	0.35	0.15	1.45	0.13	1.25	3.0/450
5IK40A-T		40	3ph220	50	2	^CONT	2750	0.45	0.14	1.42	0.55	5.70	/
5IK40A-T3		40	3ph380	50	2	^CONT	2750	0.15	0.14	1.42	0.55	5.70	/

·The capacitor capacitance will be different under different voltage. A correct capacitor capacitance is required to match the applied voltage.
·Wrong capacitor capacitance is the cause of trouble. You must confirm a correct voltage and select a correct model when your purchase order is placed.

Overall Dimension of Gearbox

	^{Reduction ratio}	^L Size(mm)	^Weight(kg)
^Gearbox	^5GN3K-18K	^42/60	0.73
	^5GN20K-50K	60	1.03
	^5GN60K-200K	60	1.13
^Motor			2.34

·Table 3-18 is 32mm for short body gear box length, when ordering if not indicate our will to conventional box gear box length 60mm standard shipping.

Allowable Torque on Gearbox
Model of Gearbox:5GN__K

Frequency	Reduction Ratio		3	5	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
50Hz	Output Shaft Speed	r/min	500	300	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12	10	8	7.5
	Allowable Torque	N.m	0.68	1.14	1.72	2.06	2.29	2.86	3.43	4.13	4.59	5.16	6.20	7.44	8.26	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80
	Allowable Torque	kgf.cm	6.94	11.6	17.6	21.0	23.4	29.2	35.0	42.1	46.8	52.6	63.3	75.9	84.3	100	100	100	100	100	100	100	100	100
60Hz	Output Shaft Speed	r/min	600	360	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
	Allowable Torque	N.m	0.58	0.97	1.45	1.74	1.93	2.41	2.90	3.48	3.87	4.36	5.23	6.28	6.97	8.72	9.46	9.80	9.80	9.80	9.80	9.80	9.80	9.80
	Allowable Torque	kgf.cm	5.92	9.90	10.8	17.7	19.7	24.6	29.6	35.5	39.5	44.5	53.4	64.1	71.1	89.0	96.5	100	100	100	100	100	100	100
