40W AC DC Adapter with CE

Name: 40W AC DC Adapter with CE
Brand: all-electronics-online.com
SKU: 102090451
Availability: InStock
Rating: 4.3 (150 reviews)

Price:	US $ 1.50-8.50/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YL45 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Experience:	20 Years'experience
Quick Delievery:	15-25 Days
Warranty:	3 Years' Warranty
Packaging:	PE Bag,White Box,Carton
Service:	Provide Customized Service
Usage:	Display
Output Type:	AC or DC
Connection:	Plug In
Brand:	Yingjiao/OEM/ODM

Product Description

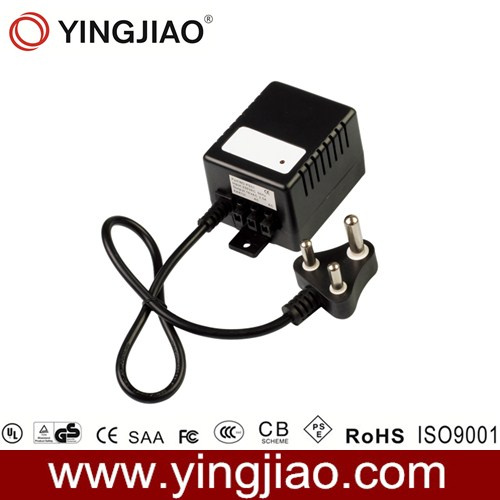

25-40W Linear Power Adapters (AC/DC, AC/AC Adapter)
Model: YL45 series
Range: 25-40W
Rated Power: 40W max.

Input voltage:
O or 240V AC 50Hz
O or 230V AC 50Hz
O or 100V AC 50Hz
O or 120V AC 60Hz
O or 220V AC 50/60Hz

AC Input plug: Optional
Output plug: Optional
Dimension: 94*71*61mm

Output Specifications:
XX-represent rated output power

Model	Output Load Voltage (V DC)	Max. Load Current (A)
YL45-XX360	36	1.00
YL45-XX240	24	1.50
YL45-XX190	19	2.00
YL45-XX150	15	2.50
YL45-XX120	12	3.00
YL45-XX090	9	4.00
YL45-XX060	6	4.50
YL45-XX050	5	5.00

Packaging & Delivery

Packaging Details:PE bag,White Box+Carton or as customer's requirement.
Delivery Detail:15-25 days after receipt of client deposit.

our services:
We can design and manufacture power supply products according to the various demands of different customers.Also,ODM/OEM are always highly welcome here.

Company information:
Yingjiao Electrical Co.,Ltd., established in 1996 , is a leading manufacturer and exporter of switching&liner power adapters,tansformers,battery chargers,car chargers,power cords,etc.Being exported to over 50 countries such as and regions for 19 years,UK, US, France, Germany, Poland, Canada, South Africa, Spain,Italy,Argentina. Israel,Malaysia.And we have been ISO9001:2000 and SGS certified.

Yingjiao Electrical Co., Ltd., established in 1996, is a leading manufacturer and exporter of switching power adapters, linear AC/DC adapters, transformers, chargers, car chargers, power cords, tripods, etc. We can also design and manufacture power supply products with specifications according to the various demands of different customers.

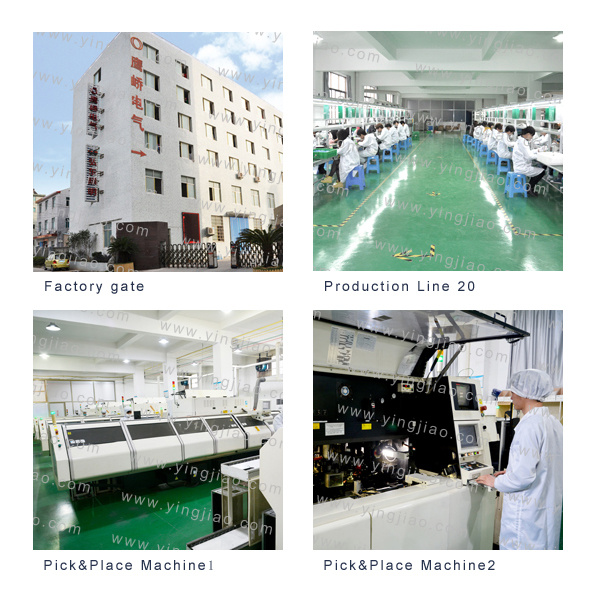

Located in Ningbo, a coastal city in East China, we possess a convenient location and transportation facility. With an area of 15000 square meters, we have about 800 skillful employees. Being exported to Europe, America, Japan, Australia, and many other countries and regions, our products have won good comments from our customers.

We have a strict quality control and guarantee system and have been ISO 9001: 2000 and SGS certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese quality certification center. Besides, we also carry out the international authoritative certifications, such as UL, cUL, TUV, CSA, and GS.

We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.

ODM/OEM partners are welcome too.
