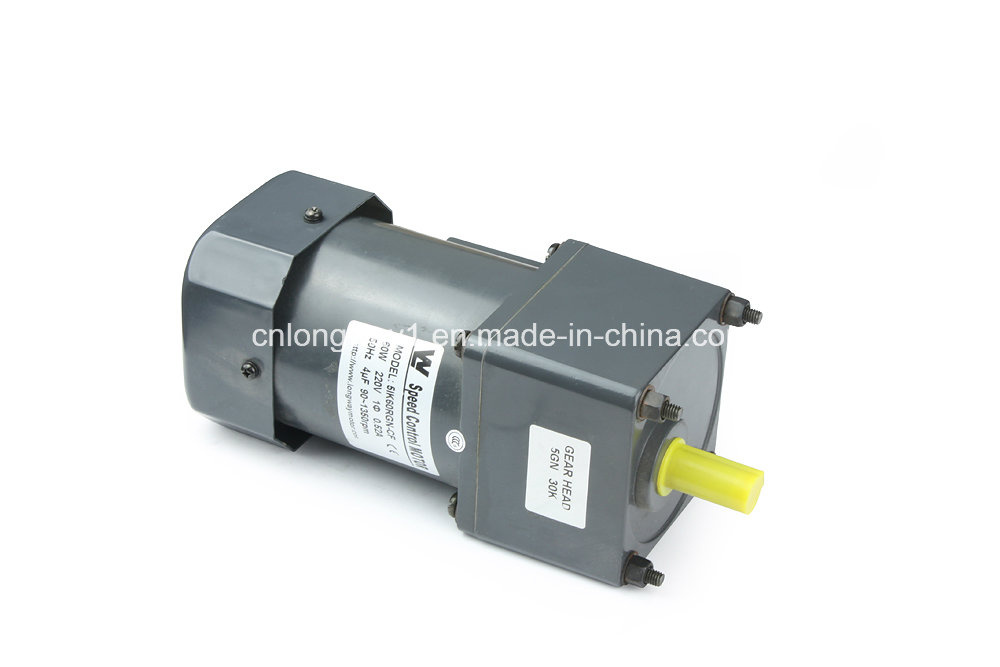

40W Induction Micro AC Gear Motor for Textile Machinery

40W Induction Micro AC Gear Motor for Textile Machinery
Price: US $ 35/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: 5I/RK40A-40GN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application To: Transmissionequipment, Textile Machinery
Motor Frame Size: 60mm
Motor Type: Induction Motor
Output Power: 15W
Number Of Stator: Single-Phase
Function: Driving

Product Description

AC INDUCTION GEAR MOTOR

Description of the product

Output shaft diameter 6mm, output shaft length24mm ball bearing gearbox, ratio:1:3,power 220V/50HZ,
Additional accessory: Z-mechanical damping, p-thermal protection, brake, controller.


List of motor Characristics

Model of Motor
OutputVoltageFrequency
Poles


Duty

Rated

StartingTorque

Capacitor/V
MotorMotor WithGearShaft   WVHzPSpeedCurrentTorque
r/minAN.mKgf.cmN.mKgf.cmµF/VAC
5I/RK40A-A5I/RK40GN-A401ph110504cont13500.640.292.850.252.5010.0/250
5I/RK40A-C5I/RK40GN-C401ph220504cont1350.0320.292.850.282.502.5/450
















Allowable Torque on Gearbox
Model of Gearbox:5GNK
frequencyReduction Ratio
33.6567.591012.51518202530364050607590100120150180200
50HzOutputShaft Speedr/min5004173002502001661501201008375605041373025201615121087.5
Allowable TorqueN.m0.680.821.141.371.722.062.292.863.434.134.595.166.207.448.269.809.809.809.809.809.809.809.809.80
kgf.cm6.948.3711.614.017.621.023.429.236.042.146.852.663.375.984.3100100100100100100100100100
60HzOutputShaft Speedr/min600500360300240200180144120100907260504536302420181512109
Allowable TorqueN.m0.580.700.971.161.451.741.932.412.903.483.874.365.236.286.978.729.469.809.809.809.809.809.809.80
kgf.cm5.927.149.9011.810.817.719.724.639.635.539.544.553.464.171.189.096.5100100100100100100100

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
