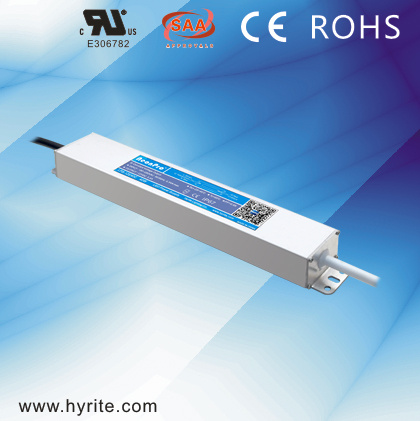

40W IP67 Switching Mode Power Supply for LED Module

Name: 40W IP67 Switching Mode Power Supply for LED Module
Brand: all-electronics-online.com
SKU: 759540515
Availability: InStock
Rating: 4.7 (103 reviews)

Price:	US $ 7.28-7.66/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS24E40C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	40W
Input Voltage:	220V
Output Voltage:	24V
Power Factor:	Low
Efficiency:	85%
IP Rating:	IP 67
Certificates/Standards:	CE TUV
Weight(Kg):	0.9500
Packing Information:	10 PCS/ Carton, G.W 9.5 Kg
Dimensions(LWH):	2053225mm
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	220V
Brand:	Neonpro

Product Description

24V 40W Slim IP67 Efficiency85% led module driver with CE TUV

1. Product Feature of LED module driver:
*Slim body, Efficiency>0.85
*Constant Voltage type;
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*TUV CE ROHS approval.

2. Data sheet:

Model no.	LPS-24E40C
Input voltage	220 VAC 50/60 Hz
Max. power	40 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	85%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	1.67A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)
Dimensions(LWH)	2053225mm
Weight(kg)	0.9500
Packing information	10 Pcs/ Carton, G.W 9.5 KG

3.Workshop & Project & Exhibition

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time of LED module driver : 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
