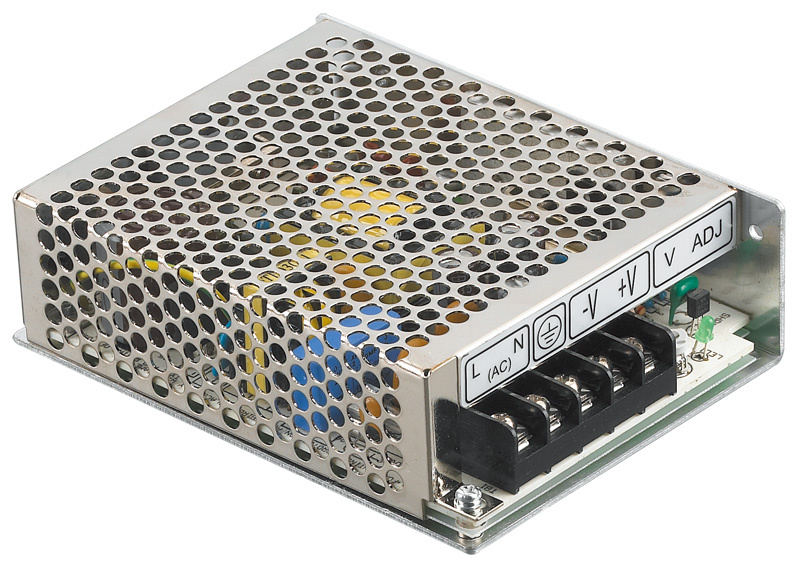

40W Single Output Switching Power Supply (HS-40)

Name: 40W Single Output Switching Power Supply (HS-40)
Brand: all-electronics-online.com
SKU: 614383465
Availability: InStock
Rating: 4.7 (63 reviews)

Price:	US $ 9.6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HS-40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Voltage Regulating Mode:	Width Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Dhecn
Output Power:	40~44W
Input Voltage:	AC85~264

Product Description

Features:
· High efficiency, high reliability
· Universal AC input / Full range
· 100% full load burn-in test
· Protections: Short circuit / Over load
· Cooling by free air convection
· Fixed switching frequency at 36kHz
· 2 years warranty

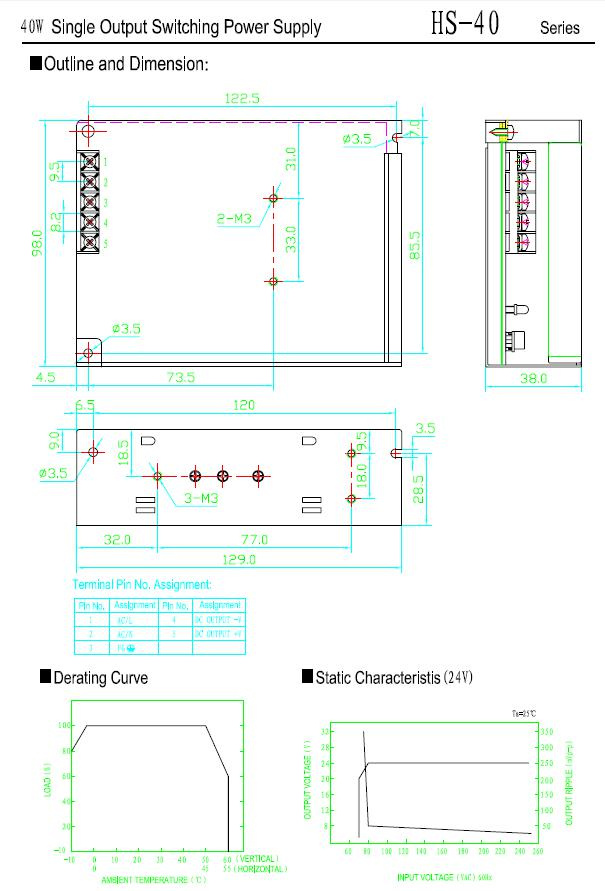

· Dimensions: 129*98*38mm (L*W*H)

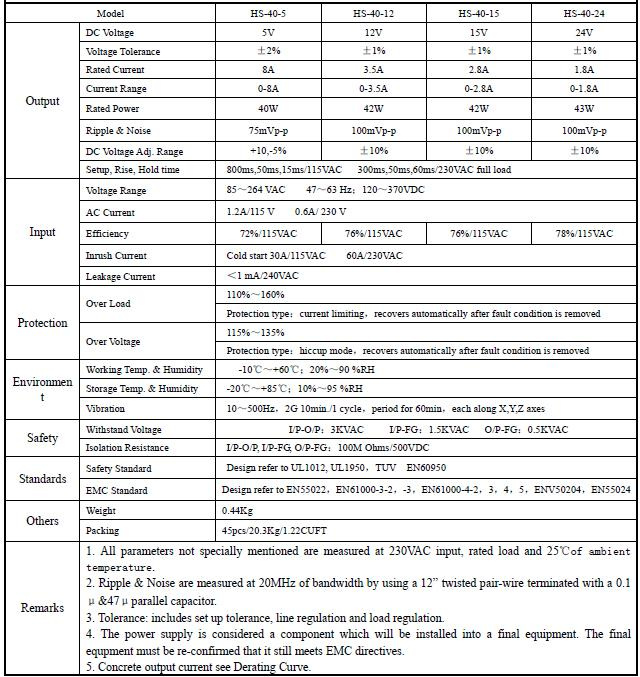

Specification

1)INPUT
· Voltage Range: 85~264 VAC47~63 Hz; 120~370VDC
· AC Current: 1.2A/115 V 0.6A/ 230 V
· Efficiency: 72%/115VAC(HS-40-5); 76%/115VAC(HS-40-12); 76%/115VAC(HS-40-15); 78%/115VAC(HS-40-24);
· Inrush Current: Cold start 30A/115VAC 60A/230VAC
· Leakage Current: <1 mA/240VAC

2)PROTECTION
· Over Load 110%~160% Protection type: Fold back current limiting, auto-recovery
· Over Voltage 115%~135% Protection type: Hiccup mode, auto-recovery

3)ENVIRONMENT
· Working Temp., Humidity: -10º C~+60º C; 20%~90 %RH
· Storage Temp., Humidity: -20º C~+85º C; 10%~95 %RH
· Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes

4)SAFETY AND STANDARD
· Withstand Voltage: I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
· Safety Standard: Design refer to UL1012, UL1950, TUVEN60950
· EMC Standard: Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, ENV50204, EN55024

5)OUTPUT
· Model: HS-40-5 HS-40-12 HS-40-15 HS-40-24
· DC Voltage: 5V 12V 15V 24V
· Voltage Tolerance: ± 2% ± 1% ± 1% ± 1%
· Rated Current: 8A 3.5A 2.8A 1.8A
· Current Range: 0-8A 0-3.5A 0-2.8A 0-1.8A
· Rated Power: 40W 42W 42W 43W
· Ripple & Noise: 75 MVP-p 100 MVP-p 100 MVP-p 100 MVP-p
· DC Adjustment Range: -5%, +10% ± 10% ± 10% ± 10%
· Setup, Rise, Hold Time: 800ms, 50ms, 15ms/115VAC300ms, 50ms, 60ms/230VAC at full load
