40W Speed Control Motor

Name: 40W Speed Control Motor
Brand: all-electronics-online.com
SKU: 697839645
Availability: InStock
Rating: 4.8 (77 reviews)

Price:	US $ 35-99/Piece
Trade Terms:	FOB,others
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	speed control motor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	3W, 6W, 10W, 20W, 40W
Size:	60, 70, 80, 90mm
Voltage:	110V, 220V, 12 Volt
Frequency:	50Hz, 60Hz
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Number Of Poles:	pls contact with us
Certification:	CE, UL, ISO9001 and RoHS
Brand:	ZD MOTOR

Product Description

Speed control motor, Gear motor, AC motor

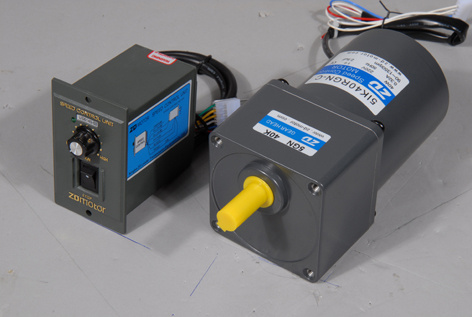

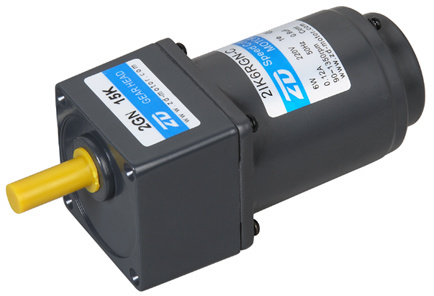

40W speed control motor
Features:
1) Dimensions: 90mm
2) Power: 40, 60W
3) Voltage: 110V, 220V
4) Speed: 50Hz: 90~ 1350rpm, 60Hz: 90~ 1650rpm
5) Reduction ratio: 3~ 750K
Usage:
Our can be widely used in medical appliance, packing mechanism, printing mechanism, cup making machine, textile machinery, and so on.
Certification: CE, UL, ISO9001 and RoHS

Model * Type		Output power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN. m	Current A	Capacitor μ F
Prnion Shaft	Round Shaft					1200r/min mN. m	90r/min mN. m
51K40RGN-AJ		40	1ph100	50	90-1400	260	70	180	0.95	12.0
				60	90-1700
51K40RGN-EJ		40	1ph110	60	90-1700	260	65	180	1.05	8.0
			1ph120
51K40RGN-CE		40	1ph220	50	90-1400	300	75	160	0.55	2.5
			1ph230
51K40RGN-HE		40	1ph220	60	90-1700	230	70	145	0.55	2.5
			1ph230

Parallel Shaft Gearhead(Sold Separately)

Gearhead Type	Gearhead Model	Gear Ratio
Long Life Low Noise	5GN*K	3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180, 200
Long Life Low Noise	5GN10XK(Decimal gearhead)

Ningbo zhongda leader transmission equipment Co., Ltd. is specialized in mini AC gear motors. At present, our main products are: Gear motors, three phase motors, speed control motors, brake motors, damping motors, torque motors, and DC gear motors. They are widely used in machine tools, textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machines, packing machinery, and gumming machines.

Our tenet is: Quality as foundation, reputation first, seeking for outstanding position. With excellent equipment, advanced procedure, scientific management, and modern test method, we can provide all customers both at home and abroad with our top quality products, favorable prices and sincere service.

We welcome interested companies to inquire about our products. We are looking forward to establishing long-term business relationships together with you for mutual business success.

History of ZD motor:

March 1996, start to make motor parts;

1998 start to make Y-series AC motor;

2001 start to produce micro AC gear motor;

2005 start to customize products for customer. Meanwhile, start to produce DC gear motor;

2006 start to produce small series AC gear motor;

2007 start to produce planetary gearbox and BLDC motor;

ZD is the first draft-man of national standardin 2008;

ZD is the first draft-man of standard in 2010;

ZD developed China's first high-precision helical planetary gear reducer in 2011;

ZD developed a robot-specific reducer in 2011.
