40W Triple Output Switching Power Supply (HT-40)

40W Triple Output Switching Power Supply (HT-40)
Price: US $ 10.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: HT-40
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type: Triple
Output Power: 1 - 50W
Voltage Regulating Mode: Width Modulation Type
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Warranty: 2 Years
Power Supplying System: Terminal Power Distribution Equipment
Certification: CCC
Brand: Dhecn
Energy Transmission: Triple Output
Input Voltage: 85~264VAC

Product Description

Features:
· High efficiency, high reliability
· Universal AC input / full range
· 100% full load burn-in test
· Protections: Short circuit/ Over load / Over voltage
· Cooling by free air convection
· Fixed switching frequency at 40KHz
· 2 years warranty

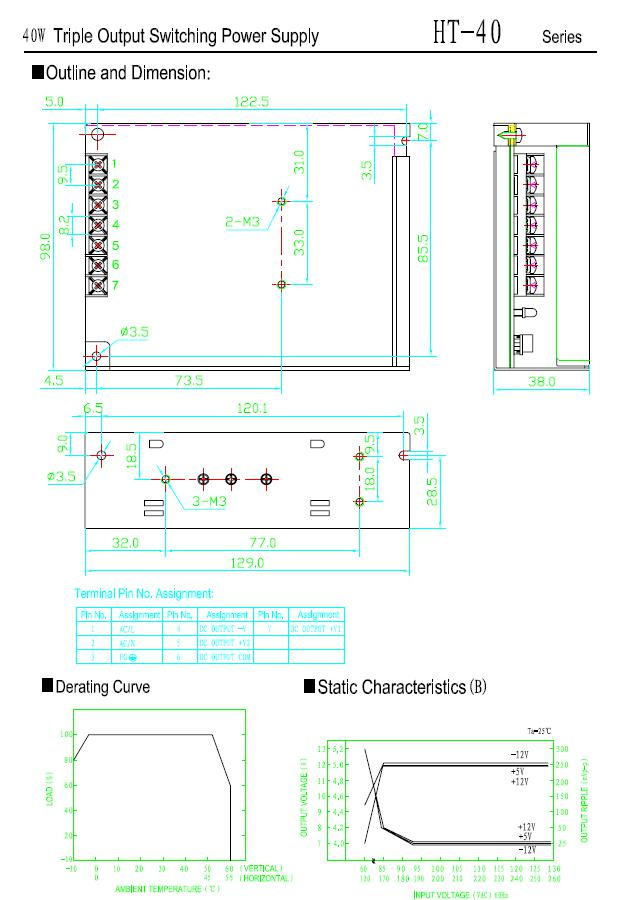

· Dimension: 129*98*38mm (L*W*H)

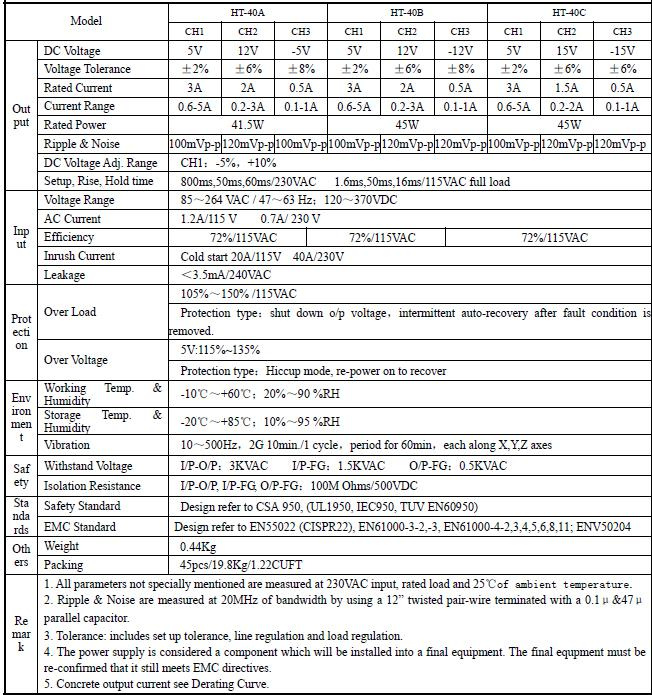

Specification

1)INPUT
· Voltage Range: 85~264 VAC / 47~63 Hz; 120~370VDC
· AC Current: 1.2A/115 V0.7A/ 230 V
· Efficiency: 72%/115VAC
· Inrush Current: Cold start 20A/115V40A/230V
· Leakage Current: <3.5mA/240VAC

2)PROTECTION
· Over Load: 105%~150% /115VAC Protection type: Fold back current limiting, recovers automatically after fault ondition is removed
· Over Voltage: 5V: 115%~135% Protection tyoe: Hiccup mode, recovers automatically after fault ondition is removed

3)ENVIRONMNET
· Working Temp., Humidity: -10º C~+60º C; 20%~90 %RH
· Storage Temp., Humidity: -20º C~+85º C; 10%~95 %RH
· Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes

4)SAFETY AND STANDATD
· Withstand Voltage: I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
· Safety Standard: Design refer to CSA 950, (UL1950, IEC950, TUV EN60950)
· EMC Standard: Design refer to EN55022 (CISPR22), EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204

5)OUTPUT
· Model: HT-40A HT-40B HT-40C
CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 CH3
· DC Voltage: 5V 12V -5V 5V 12V -12V 5V 15v -15V
· Voltage Tolerance: ± 2% ± 6% ± 8% ± 2% ± 6% ± 8% ± 2% ± 6% ± 6%
· Rated Current: 3A 2A 0.5A 3A 2A 0.5A 3A 1.5A 0.5A
· Current Range: 0.6-5A 0.2-3A 0.1-1A 0.6-5A 0.2-3A 0.1-1A 0.6-5A 0.2-2A 0.1-1A
· Rated Power: 41.5W 41.5W 41.5W 45W 45W 45W 45W 45W 45W
· Ripple & Noise: 100 mVp-p 120 mVp-p 100 mVp-p 100 mVp-p 120 mVp-p 120 mVp-p 100 mVp-p 120 mVp-p 120 mVp-p
· DC Adjustment Range CH1: -5%, +10%
· Setup, Rise, Hold Time 800ms, 50ms, 60ms/230VAC1.6ms, 50ms, 16ms/115VAC at full load

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.

To supply our customers perfect products, we set up R&D department with over 20 experienced engineers and also follow a full set of computerized managementssystem. What' S more, as an ISO9001 certified company, we adopt a strict inspection process and a scientific management system with modern imported manufacturing and testing facilities, succeeded in achieving some safety sertification such as CCC, CE, CB, UL and all products are RoHS Compliance.

Advantage managent and abundant labor in China, let us provide our customers more high reliable quality and more cheaper products, by now, DHECN-SMPS is becoming more and more famous among customers worldwide due to its reliable quality, competitive price, punctual delivery and correct service.

Donghua warmly welcome all old and new customers to visit our company or contact us by Tel, Fax, E-mail. Believing we will be your long-term business cooperator either as a reliable supplier or as a close ODM/OEM partner in China.
