| Prod Model: |
S1100VG |
| Item Name: |
Frequency Inverter with Tension Control |
| Maximum Frequency: |
600.00Hz |
| Speed Adjustment Range: |
1:200(Open Loop Vector Flux Control) |
| Torque Response: |
=40ms(Open Loop Vector Flux Control) |
| Pid Control: |
Built in |
| Interface RS-485: |
Standard RS485 Communication Function |
| Over Voltage: |
Yes |
| Under Voltage: |
Yes |
| Protective Structure: |
IP20 |
| Other Protections: |
Overload,Overheat,Short Circuit,Over Current etc |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Function: |
General Type |
| Brand: |
Machtric |
Product Description
415V 7.5kw 22kw AC Variable Frequency Inverter With Tension Control
1.Product Advantages:
1). Infineon IGBT(KT4)
2). TI DSP chip set
3). Delta Fan
4). Lem Sensor
5). Jianghai Capacitor
6). Super low fail rate,less than 1% even in the hardest working condition.
7). With special tension control software for winder unwinder machine
8). With special software for elevator
2.Ehanced control and performance
-Starting torque: 180% at 0.5Hz(heavy duty);120% at 0.5Hz(normal duty)-Two control modes:V/F & Sensor less vector control
-Precise speed control stability:open loop magnetic flux vector control≤±0.5%(rated sync-speed)
-Improved speed control stability: open loop magnetic flux vector control≤±0.3%(rated sync-speed)
3.Switchable Dual Rating Operation Mode: Normal Duty/ Heavy Duty
This optio allows users to selected and appropriate operating mode of frequency inverter thjat corresponds to load of induction motor. ? Normal Duty? mode is 150% for 3 sec and 130% for 60 sec.Capacity on continuous operation corresponds to inverter rated capcaity .? Heavy Duty? mode is designed for heavy work applications.Capacity on continuous operations is one step down from inverter rated capcaity.For this mode,overload capacity is 180% for 3 sec and 150% for 60 sec .
4.Various Functions
Built-in programmable Logic Controller
PID Control Option
Multi speed control with 16 step frequency selection
5.Protection of environment
Environment oriented design
Improved ecological characteristics

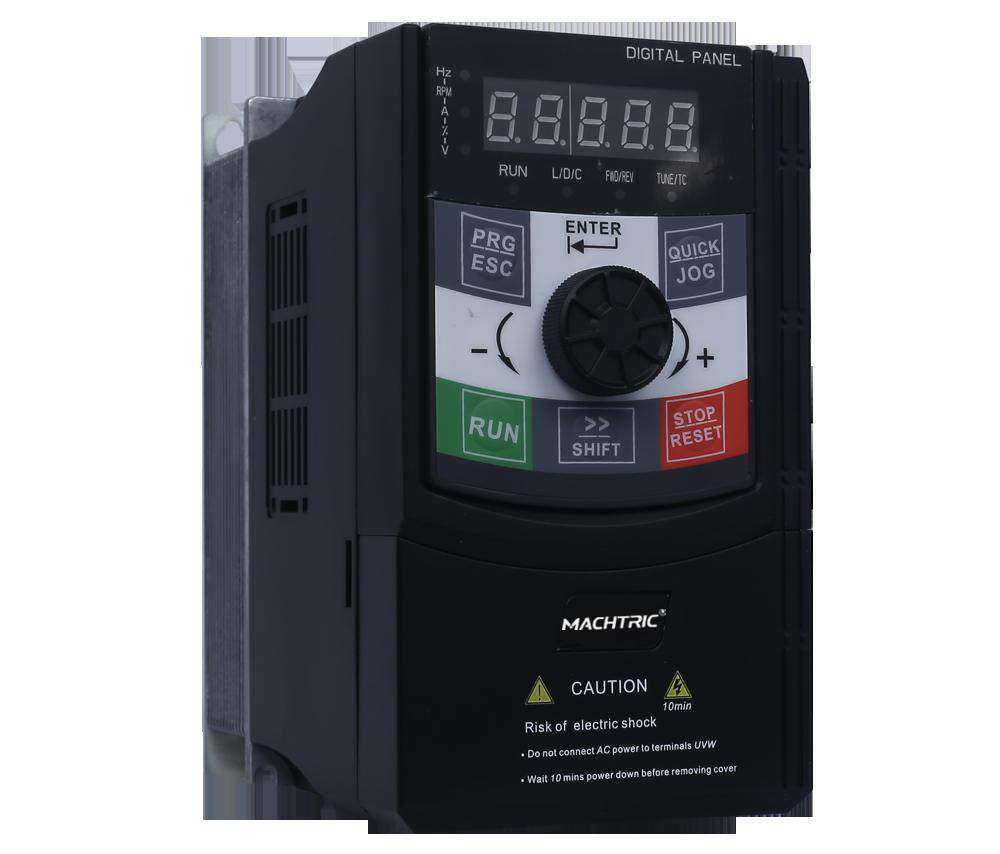

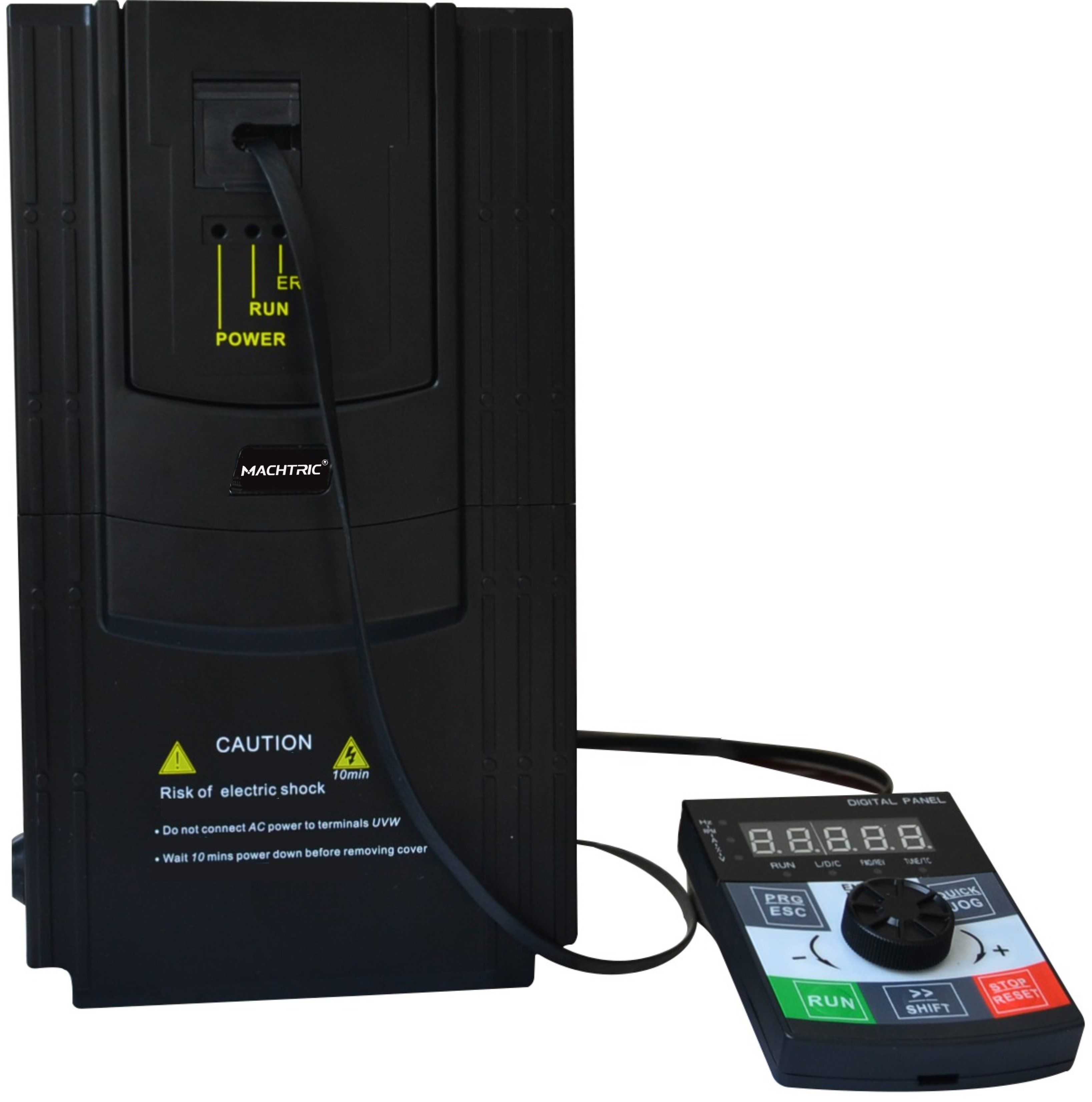

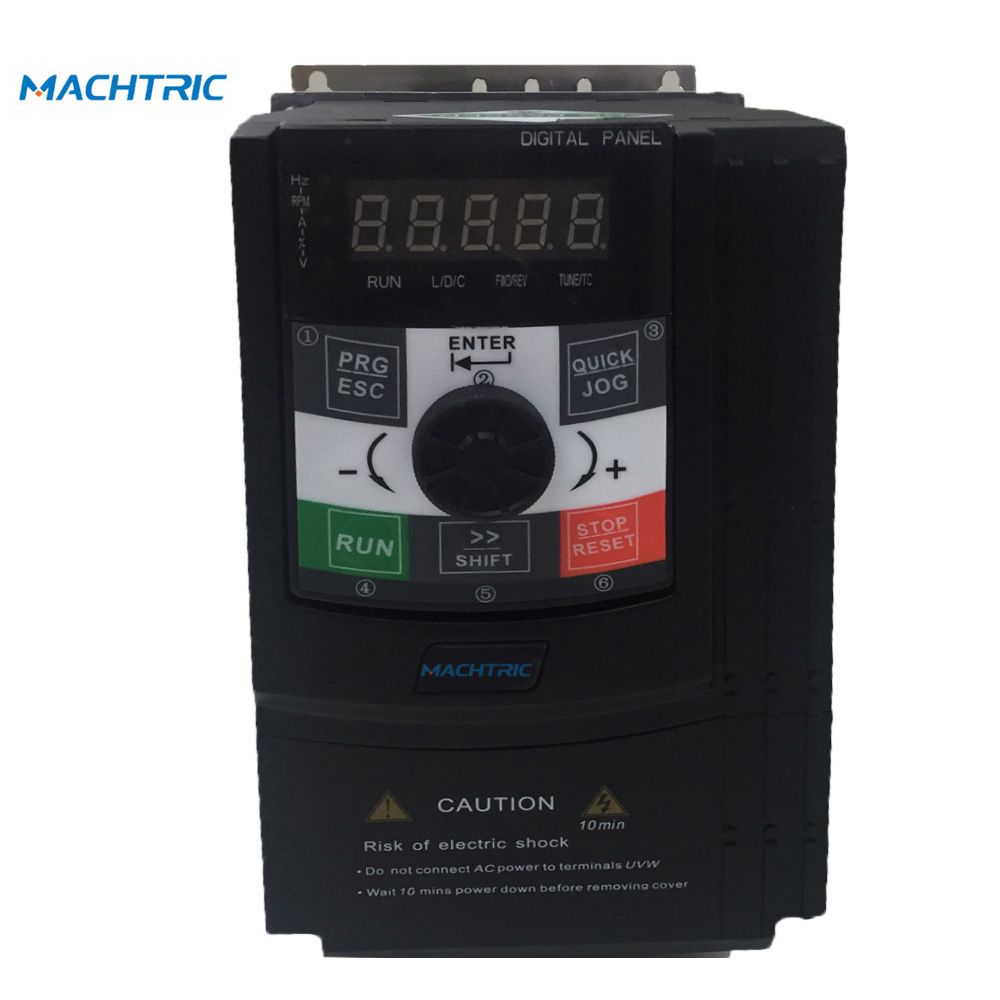

6.Product Pictures:
