| Prod Model: |
57HS112-3004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
5V |
| Holding Torque: |
2.8n.M |
| Curret: |
4.2A |
| Frame Size: |
57mm*57mm |
| Body Length: |
112mm |
| Key Word: |
Hybrid Stepper Motor |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Electromechanical |
| Application: |
Small CNC Machine |
| Operate Mode: |
Double Beat |
| Certification: |
CE and RoHS |
| Brand: |
Jkong Motor |
Product Description

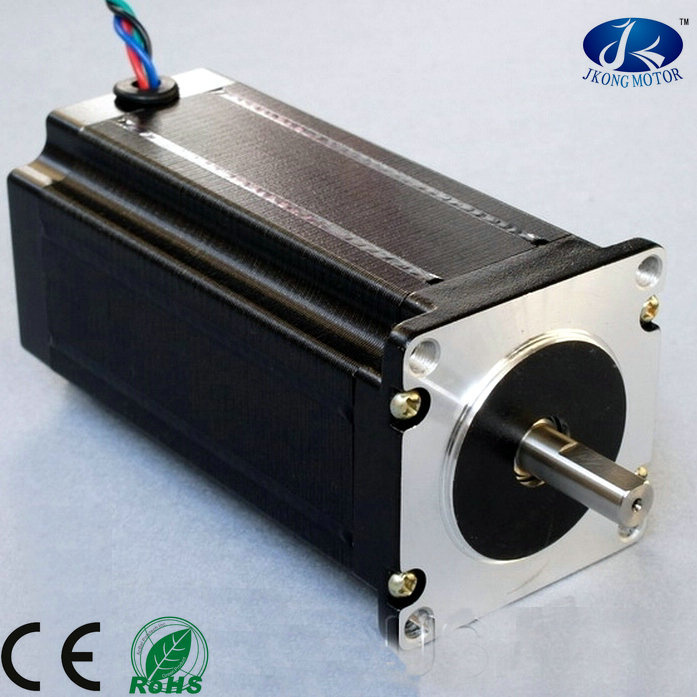

425 ozin China hybrid stepper motor NEMA23
Feartures & Benifits:
- NEMA23 frame size
- High step accuracy and resolution
- Low vibration and noise
- Can be customized for winding current, shaft options and cables and connectors.
- CE certified and ROHS compliant
Applications:
Used for robots stepper motor,
Electronic automatic equipment stepping motor,
Medical instrument stepping motor,
Advertising instrument stepper motor,
Lighting& audio equipment stepper motor,
Printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
Genaral Specification:
Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N
Electrical Specification:
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Lead wires | Detent Torque | Rotor Inertia | Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm | Kg |
| JK57HS41-1006 | 1.8 | 41 | 1 | 5.2 | 5.5 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-2006 | 1.8 | 41 | 2 | 1.4 | 1.4 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-3006 | 1.8 | 41 | 3 | 0.63 | 0.6 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-2804 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 250 | 150 | 0.47 |
| JK57HS51-1006 | 1.8 | 51 | 1 | 6.6 | 8.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-2006 | 1.8 | 51 | 2 | 1.65 | 2.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-3006 | 1.8 | 51 | 3 | 0.74 | 0.9 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 350 | 280 | 0.68 |
| JK57HS56-1006 | 1.8 | 56 | 1 | 7.4 | 10 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-2006 | 1.8 | 56 | 2 | 1.8 | 2.5 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-3006 | 1.8 | 56 | 3 | 0.75 | 1.1 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-2804 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.26 | 4 | 350 | 280 | 0.68 |
| JK57HS76-1006 | 1.8 | 76 | 1 | 8.6 | 14 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-2006 | 1.8 | 76 | 2 | 2.25 | 3.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-3006 | 1.8 | 76 | 3 | 1 | 1.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-2804 | 1.8 | 76 | 2.8 | 1.13 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| JK57HS82-3004 | 1.8 | 82 | 3.0 | 1.2 | 4 | 2.2 | 4 | 1000 | 600 | 1.2 |
| JK57HS82-5004 | 1.8 | 82 | 5 | 0.6 | 1.5 | 2.2 | 4 | 1000 | 600 | 1.2 |
| JK57HS112-3004 | 1.8 | 112 | 3.0 | 1.6 | 6.8 | 2.8 | 4 | 1200 | 800 | 1.4 |
| JK57HS112-4204 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 2.8 | 4 | 1200 | 800 | 1.4 |
Stepper Motor in Hot Sale!!!
NEMA17
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Lead
wires | Detent Torque | Rotor Inertia | Motor Weight |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg |
| JK42HS34-0956 | 1.8 | 34 | 0.95 | 4.2 | 2.5 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-0406 | 1.8 | 34 | 0.4 | 24 | 15 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-0316 | 1.8 | 34 | 0.31 | 38.5 | 21 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 120 | 34 | 0.22 |
| JK42HS40-1206 | 1.8 | 40 | 1.2 | 3.3 | 3.2 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-0806 | 1.8 | 40 | 0.8 | 7.5 | 6.7 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-0406 | 1.8 | 40 | 0.4 | 30 | 30 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-1684 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 150 | 54 | 0.28 |
| JK42HS48-1206 | 1.8 | 48 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS48-0806 | 1.8 | 48 | 0.8 | 7.5 | 6.3 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS48-0406 | 1.8 | 48 | 0.4 | 30 | 25 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 260 | 68 | 0.35 |
| JK42HS60-1206 | 1.8 | 60 | 1.2 | 6 | 7 | 6.5 | 6 | 280 | 102 | 0.5 |
NEMA34| Model No. |
Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque |
Lead
wires |
Detent Torque | Rotor Inertia |
Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm | Kg |
| JK86H66-5904 | 1.8 | 66 | 5.9 | 0.28 | 1.7 | 3.4 | 4 | 0.8 | 1000 | 1.7 |
| JK86H66-2808 | 1.8 | 66 | 2.8 | 1.4 | 3.9 | 3.4 | 8 | 0.8 | 1000 | 1.7 |
| JK86H78-5504 | 1.8 | 78 | 5.5 | 0.46 | 4 | 4.6 | 4 | 1.2 | 1400 | 2.3 |
| JK86H78-4208 | 1.8 | 78 | 4.24 | 0.75 | 3.4 | 4.6 | 8 | 1.2 | 1400 | 2.3 |
| JK86H97-4008 | 1.8 | 97 | 4 | 0.98 | 4.1 | 6.8 | 8 | 1.6 | 1900 | 3 |
| JK86H97-5008 | 1.8 | 97 | 5 | 0.65 | 2.4 | 6.8 | 8 | 1.6 | 1900 | 3 |
| JK86H97-2708 | 1.8 | 97 | 2.7 | 1.9 | 8.6 | 6.8 | 8 | 1.6 | 1900 | 3 |
| JK86H115-6004 | 1.8 | 115 | 6 | 0.6 | 6.5 | 8.7 | 4 | 2.4 | 2700 | 3.8 |
| JK86H115-4208 | 1.8 | 115 | 4.2 | 0.9 | 6 | 8.7 | 8 | 2.4 | 2700 | 3.8 |
| JK86H126-4008 | 1.8 | 126 | 4 | 1.3 | 5.8 | 9.3 | 8 | 3.0 | 3200 | 4.5 |
| JK86H126-5008 | 1.8 | 126 | 5 | 0.85 | 3.4 | 9.3 | 8 | 3.0 | 3200 | 4.5 |
| JK86H126-2708 | 1.8 | 126 | 2.7 | 2.5 | 12.5 | 9.3 | 8 | 3.0 | 3200 | 4.5 |
| JK86H155-6204 | 1.8 | 153 | 6.2 | 0.75 | 9 | 12 | 4 | 3.6 | 4000 | 5.4 |
| JK86H155-4208 | 1.8 | 153 | 4.2 | 1.25 | 8 | 12 | 8 | 3.6 | 4000 | 5.4 |
