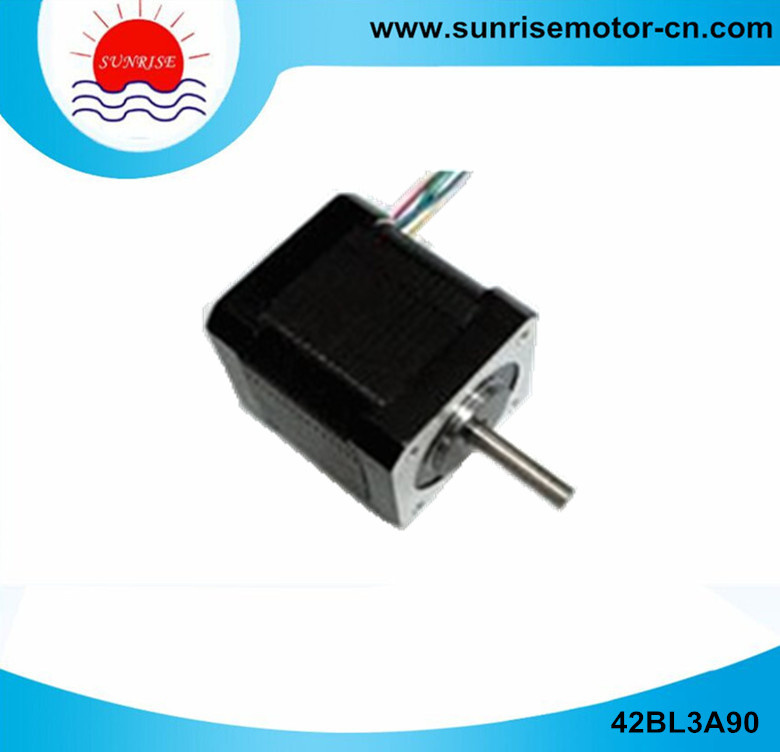

42bl3a90-36VDC NEMA17 95W 0.3n. M Low Voltage Brushless DC Motor

Name: 42bl3a90-36VDC NEMA17 95W 0.3n. M Low Voltage Brushless DC Motor
Brand: all-electronics-online.com
SKU: 726432735
Availability: InStock
Rating: 4.8 (135 reviews)

Price:	US $ 30.73-40.30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	42BL3A90 -36
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	42bl3a90-36
Voltage:	36VDC
Power:	95W
Speed:	3000rpm
Torque:	0.3n.M
Current:	3.6A
Number Of Poles:	8
Winding Class:	B
Motor Weight:	0.75kg
Structure And Working Principle:	Brushless
Operating Speed:	High Speed
Application:	Power Tools
Excitation Mode:	Excited
Brand:	Sunrise Motor
Type:	BLDC
Certification:	SGS

Product Description

NEMA17 BRUSHLESS DC (BLDC) ELCTRIC MOTOR

MODEL: 42BL3A90-36
VOLTAGE: 36V,
POWER: 95W,
SPEED: 3000rpm
TORQUE: 0.3N. M
Current: 3.6A

Remark:
1. We can also manufacture products according to customer's requirments.
2. Can match encoder

			42BL3A45		42BL3A50		42BL3A70		42BL3A90
Specification		Unit	-A	-B	-A	-B	-A	-B	-A	-B
Rated voltage	U	V	+24	+36	+24	+36	+24	+36	+24	+36
Rated out power	P out	W	15.7	15.7	32	32	64	64	95	95
Rated speed	n N	rpm	3000
Rated current	I N	A	0.82	0.54	1.8	1.2	3.6	2.4	5.4	3.6
Rated torque	T N	N.m	0.05	0.05	0.1	0.1	0.2	0.2	0.3	0.3
Peak current	I P	A	2.5	1.6	5.4	3.6	10.8	7.2	16.2	10.8
Peak torque	T p	N.m	0.15	0.15	0.3	0.3	0.6	0.6	0.9	0.9
Voltage constant	K E	V/ Krpm	6.3	9.47	6.3	9.47	6.3	9.47	6.3	9.47
Torque constant	K T	N.m/A	0.06	0.09	0.06	0.09	0.06	0.09	0.06	0.09
Rotor inertia	J	Kg.cm 2	0.13	0.13	0.26	0.26	0.39	0.39	0.52	0.52
Number of poles	N P		8	8	8	8	8	8	8	8
Winding class			B	B	B	B	B	B	B	B
Motor weight		Kg	0.3	0.3	0.35	0.35	0.55	0.55	0.75	0.75

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
