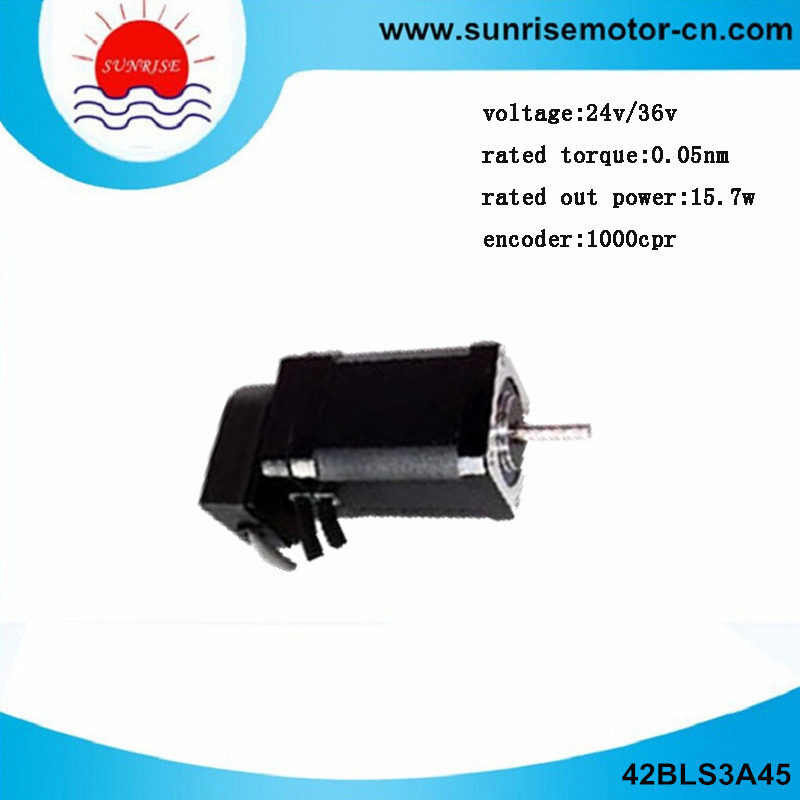

42bls3A45 Servo Motor/DC Servo Motor

Name: 42bls3A45 Servo Motor/DC Servo Motor
Brand: all-electronics-online.com
SKU: 752696715
Availability: InStock
Rating: 5 (46 reviews)

Price:	US $ 64.5-69.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	42BLS3A45
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	24VDC/36VDC
Rated Out Power:	15.7W
Rated Speed:	3000rpm
Rated Torque:	0.05nm
Application:	Household Appliances
Operating Speed:	Adjust Speed
Brand:	Sunrise Motor

Product Description

Customer First Service Foremost Quality Guarantee

			42BLS3A45		42BLS3A50		42BLS3A70		42BLS3A90
Specification		Unit	-A	-B	-A	-B	-A	-B	-A	-B
Rated voltage	U	V	+24	+36	+24	+36	+24	+36	+24	+36
Rated out power	P out	W	15.7	15.7	32	32	64	64	95	95
Rated speed	n N	rpm	3000
Rated current	I N	A	0.82	0.54	1.8	1.2	3.6	2.4	5.4	3.6
Rated torque	T N	N.m	0.05	0.05	0.1	0.1	0.2	0.2	0.3	0.3
Peak current	I P	A	2.5	1.6	5.4	3.6	10.8	7.2	16.2	10.8
Peak torque	T p	N.m	0.15	0.15	0.3	0.3	0.6	0.6	0.9	0.9
Voltage constant	K E	V/ Krpm	6.3	9.47	6.3	9.47	6.3	9.47	6.3	9.47
Torque constant	K T	N.m/A	0.06	0.09	0.06	0.09	0.06	0.09	0.06	0.09
Rotor inertia	J	Kg.cm 2	0.13	0.13	0.26	0.26	0.39	0.39	0.52	0.52
Number of poles	N P		8 8 8 8 8 8 8 8
Encoder		CPR	1000
Winding class			B B B B B B B B
Motor weight		Kg	0.3	0.3	0.35	0.35	0.55	0.55	0.75	0.75

Remark:
1. Motor are available with different winding and mechanical modification to meet specific applications.

FAQ

Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. please contact us for details.
Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

About Sunrise Motor

   Sunrise Motor  was founded in 2003 and specialised on development, production and sales of  electric motor products to answer to the growing demand for these commodities on the intl' markets.
   Sunrise Motor was and is set to meet this demand in a more flexible and efficient way. Consequently, the company concentrated on products of the most urgent demand on domestic and foreign markets, whilst preparing our production for the introduction of other products being interesting in future.
  Owing to hard and devoted work of  Sunrise Motor management and of its team, we have, in the meantime, gained an interesting batch of ground on this very competitive field of technology. We have achieved extensive knowledge on manufacturing and thus raised quality and output of our products.

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
