42bly2A42 24VDC 11W 0.04n. M NEMA17 Round Brushless DC Motor

Name: 42bly2A42 24VDC 11W 0.04n. M NEMA17 Round Brushless DC Motor
Brand: all-electronics-online.com
SKU: 670513145
Availability: InStock
Rating: 4.7 (123 reviews)

Price:	US $ 20.32-22.58/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	42BLY3A42
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	42bly3A42
Power:	11W
Torque:	0.04n.M
Rated Speed:	3000rpm
Length:	42mm
Weight:	0.35kg
Structure And Working Principle:	Brushless
Operating Speed:	High Speed
Application:	Power Tools
Excitation Mode:	Excited
Brand:	Sunrise Motor
Type:	BLDC
Certification:	SGS

Product Description

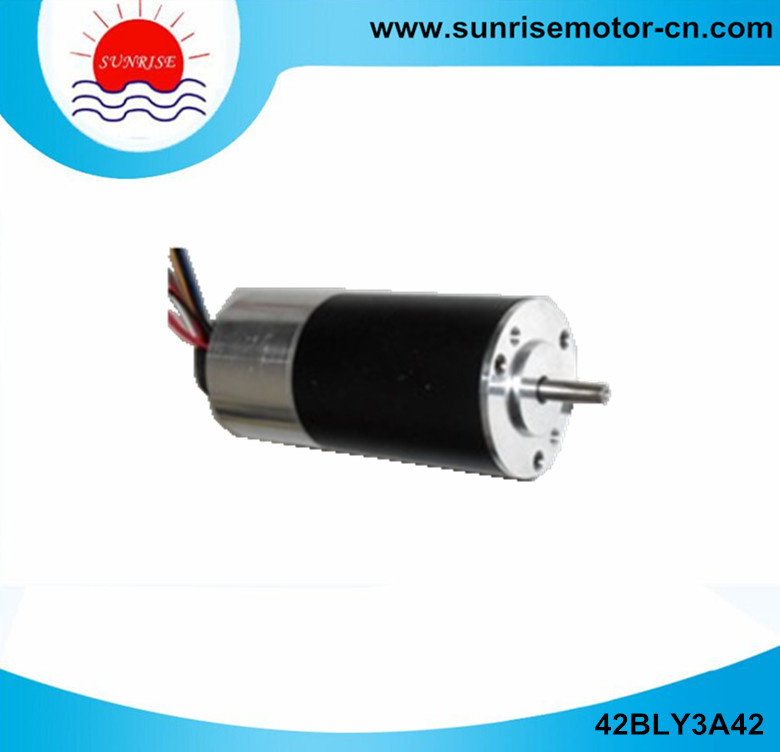

NEMA17 42MM Brushless DC(BLDC) electric motor
42BLY3A42

Power: 11W
Rated speed : 3000rpm
Torque: 0.04N.m
Winding class:B
Weight: 0.35KG

Motor can produce according to customer's requirements.

Can match encoder.

			42BLY3A42	42BLY3A60	42BLY3A78
Specification		Unit
Rated voltage	U	V	+24 +24 +24
Rated out power	P out	W	11	22	33
Rated speed	n N	rpm	3000
Rated current	I N	A	0.9	2.1	3.0
Rated torque	T N	N. m	0.04	0.07	0.10
Peak current	I P	A	2.7	6.3	9
Peak torque	T p	N. m	0.11	0.21	0.3
Voltage constant	K E	V/ Krpm	3.37	3.37	3.37
Torque constant	K T	N. m/A	0.035	0.035	0.035
Rotor inertia	J	Kg. cm 2	0.25	0.35	0.45
Number of poles	N P		4 4 4
Winding class			B B B
Motor weight		Kg	0.35	0.5	0.8

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
