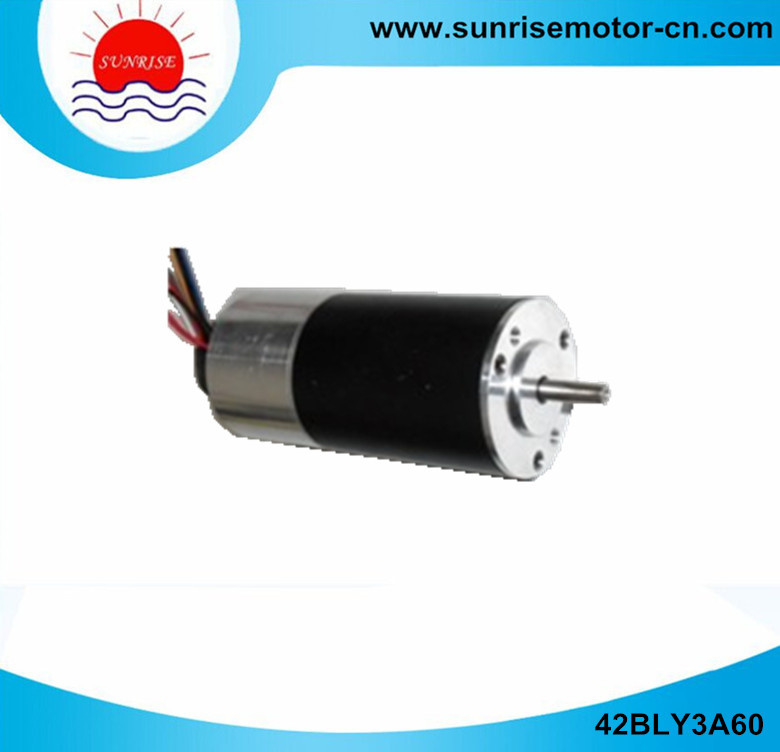

42bly3a60 24VDC 22W 0.07n. M NEMA17 Brushless DC Motor

Name: 42bly3a60 24VDC 22W 0.07n. M NEMA17 Brushless DC Motor
Brand: all-electronics-online.com
SKU: 670810045
Availability: InStock
Rating: 4.3 (62 reviews)

Price:	US $ 20.97-22.58/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	42BLY3A60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	42bly3a60
Voltage:	24VDC
Rated Out Power:	22W
Rated Current:	2.1A
Rated Speed:	3000rpm
Rated Torque:	0.07n,M
Winding Class:	B
Motor Weight:	0.5kg
Motor Length:	60mm
Application:	Power Tools
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	BLDC
Certification:	SGS
Brand:	Sunrise Motor

Product Description

NEMA17 42MM BRUSHLESS DC (BLDC ) ELECTRIC MOTOR

Model: 42BLY3A60

Voltage: 24VDC
Rated out power: 22W
Rated speed: 3000rpm
Rated current: 2.1A
Rated torqe: 0.07N. M
Number of poles: 4
Winding class: B
Motor wieght: 0.5kg

REMARK:
1. Motor are available with different winding and mechanical modification to meet specific applications.
2. Can match encoder.

			42BLY3A42	42BLY3A60	42BLY3A78
Specification		Unit
Rated voltage	U	V	+24 +24 +24
Rated out power	P out	W	11	22	33
Rated speed	n N	rpm	3000
Rated current	I N	A	0.9	2.1	3.0
Rated torque	T N	N. m	0.04	0.07	0.10
Peak current	I P	A	2.7	6.3	9
Peak torque	T p	N. m	0.11	0.21	0.3
Voltage constant	K E	V/ Krpm	3.37	3.37	3.37
Torque constant	K T	N. m/A	0.035	0.035	0.035
Rotor inertia	J	Kg. cm 2	0.25	0.35	0.45
Number of poles	N P		4 4 4
Winding class			B B B
Motor weight		Kg	0.35	0.5	0.8

Figure:

Wiring Diagram:

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
