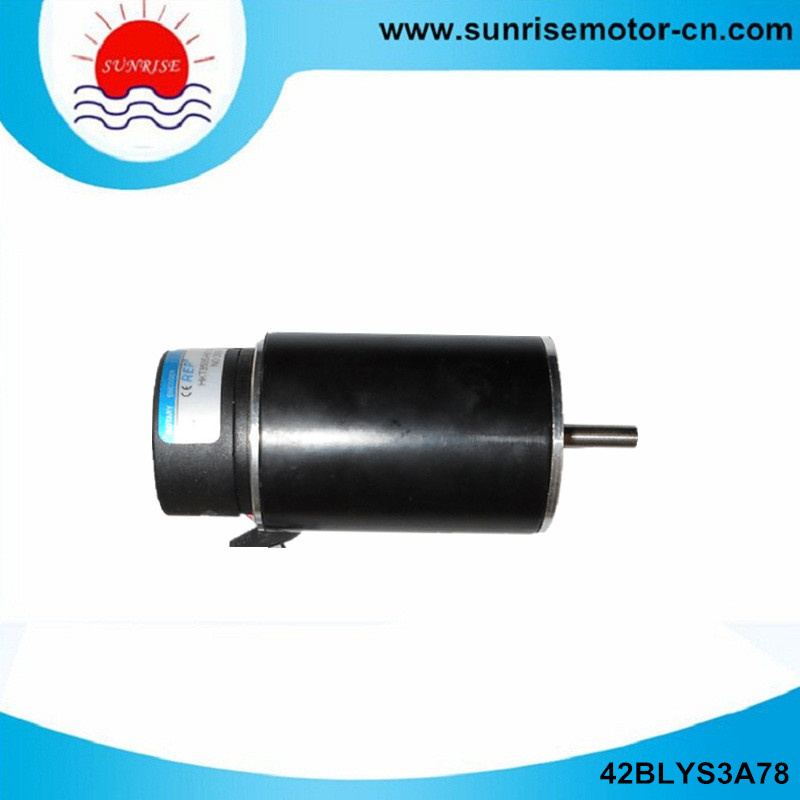

42blys3a78 33W 24VDC 0.1n. M 3000rpm Brushless DC Motor with Encoder

Name: 42blys3a78 33W 24VDC 0.1n. M 3000rpm Brushless DC Motor with Encoder
Brand: all-electronics-online.com
SKU: 726426495
Availability: InStock
Rating: 4.4 (57 reviews)

Price:	US $ 56.39-58.17/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	42BLYS3A78
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	42blys3a78
Voltage:	24VDC
Power:	33W
Torque:	0.1n.M
Current:	3A
Speed:	3000rpm
Encoder:	500CPR
Winding Class:	B
Weight:	0.8kg
Application:	Power Tools
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	BLDC Servo
Certification:	SGS
Brand:	Sunrise Motor

Product Description

BLDC Servo motor
NEMA 17

MODEL: 42BLYS3A78
VOLTAGE: 24V
POWER: 33W
SPEED: 3000RPM
CURRENT: 3A
TORQUE: 0.1N. M
Lenght: 78mm
Weight: 0.8kg
Motor with ecoder: 500cpr

Motor are available with differnet winding and mechanical modification to meet specific applications.

			42BLYS3A42	42BLYS3A60	42BLYS3A78
Specification		Unit
Rated voltage	U	V	+24
Rated out power	P out	W	11	22	33
Rated speed	n N	rpm	3000
Rated current	I N	A	0.9	2.1	3.0
Rated torque	T N	N.m	0.04	0.07	0.10
Peak current	I P	A	2.7	6.3	9
Peak torque	T p	N.m	0.11	0.21	0.3
Voltage constant	K E	V/ Krpm	3.37	3.37	3.37
Torque constant	K T	N.m/A	0.035	0.035	0.035
Rotor inertia	J	Kg.cm 2	0.25	0.35	0.45
Number of poles	N P		4 4 4
Encoder		CPR	500
Winding class			B B B
Motor weight		Kg	0.35	0.5	0.8

Motor motors

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
