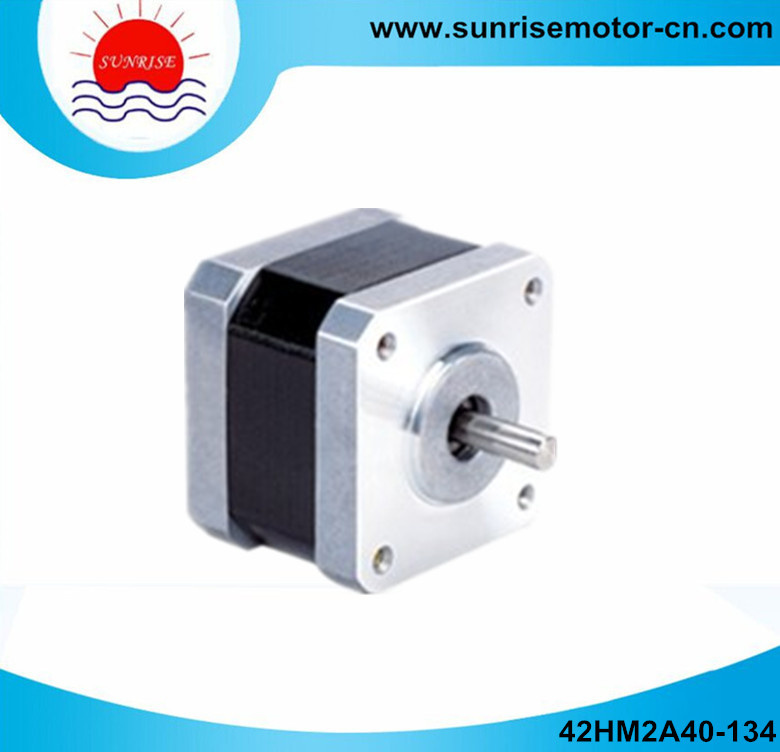

42hm2A40 1.3A 36n. Cm NEMA17 CNC 2phase Stepper Motor

Name: 42hm2A40 1.3A 36n. Cm NEMA17 CNC 2phase Stepper Motor
Brand: all-electronics-online.com
SKU: 733660665
Availability: InStock
Rating: 4.4 (50 reviews)

Price:	US $ 8.23-8.55/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	42HM2A40-134
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	42hm2A40-134
Holding Torque:	36n.Cm
Current:	1.3A
Resistance:	2.5ohms
Inductance:	6.2mh
Length:	40mm
Wire:	4
Weight:	280g
Type:	Electromechanical
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Brand:	Sunrise Motor
Certification:	SGS

Product Description

2Phase Hybrid Stepping motor
0.9° NEMA17

Model: 42HM2A40-134
Holding torque: , 36N. Cm
Current: 1.3A,
Resistance: 2.5 ohms,
Inductance: 6.2mH
Length: 40mm,
Weight: 280g
Wire: 4

Remark:
Motor are available with diffent winding and mechancial modification to meet specific applications.

Model	Holding Torque (N@ cm± 10%)	Current/Phase(A)	Resistance/Phase (ohms± 10%)	Inductance/Phase (mH± 20%)	Detent Torque (N@ cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
42HM2A28-064	10	0.6	9	9	0.9	20	28	130
42HM2A34-134	24	1.3	2.4	3.6	1.2	34	34	220
42HM2A34-174	24	1.7	1.2	2.2	1.2	34	34	220
42HM2A34-044	24	0.4	30	45	1.2	34	34	220
42HM2A34-046	20	0.4	30	22	1.2	34	34	220
42HM2A34-026	12	0.16	75	54	1.2	34	34	220
42HM2A40-174	36	1.7	1.5	3.8	1.8	54	40	280
42HM2A40-134	36	1.3	2.5	6.2	1.8	54	40	280
42HM2A40-126	26	1.2	3.2	3.8	1.8	54	40	280
42HM2A40-046	26	0.4	30	34	1.8	54	40	280
42HM2A48-174	42	1.7	1.8	4.0	2.2	68	48	350
42HM2A48-134	36	1.3	3.0	7.0	2.2	68	48	350
42HM2A48-234	42	2.3	1.2	2.0	2.2	68	48	350
42HM2A48-046	27	0.4	30	28	2.2	68	48	350

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
