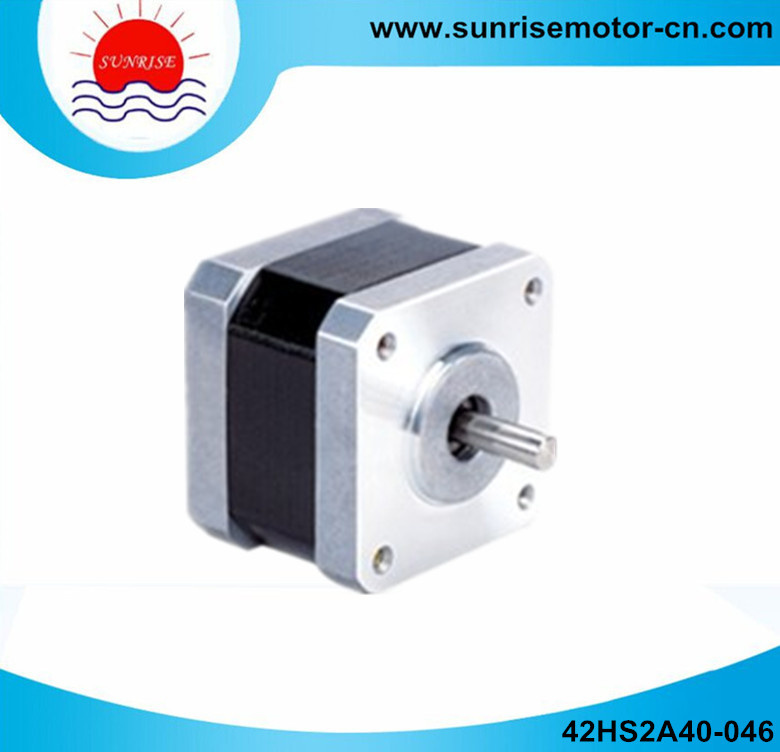

42hs2A40 0.4A 28n. Cm NEMA17 3D Printer CNC Stepper Motor

Name: 42hs2A40 0.4A 28n. Cm NEMA17 3D Printer CNC Stepper Motor
Brand: all-electronics-online.com
SKU: 733442275
Availability: InStock
Rating: 4.3 (98 reviews)

Price:	US $ 6.77-7.1/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	42HS2A40-046
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	42hs2A40-046
Holding Torque:	28n.Cm
Current:	0.4A
Resistance:	30ohms
Inductance:	28mh
Length:	40mm
Wire:	6
Weight:	280g
Type:	Magnetic-Electric
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Brand:	Sunrise Motor
Certification:	SGS

Product Description

2-Phase Stepping motor
1.8° NEMA17

Model: 425HS2A40-046
Holding torque: 28N. Cm
Current: 0.4A
Resistance: 30ohms
Inductance: 28mH
LENGTH: 40mm,
Weight: 280g

Remark:
Motor are available with different winding and mechanical modification to meet specific applications.

Model	Holding Torque (N@ cm± 10%)	Current/Phase(A)	Resistance/Phase (ohms± 10%)	Inductance/Phase (mH± 20%)	Detent Torque (N@ cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
42HS2A28-064	12	0.6	8	10	1.6	34	28	150
42HS2A34-134	28	1.3	2.4	2.8	1.6	34	34	220
42HS2A34-174	28	1.7	1.2	1.8	1.6	34	34	220
42HS2A34-044	28	0.4	30	35	1.6	34	34	220
42HS2A34-046	21	0.4	30	18	1.6	34	34	220
42HS2A34-026	14	0.16	75	40	1.6	34	34	220
42HS2A40-174	40	1.7	1.5	2.8	2.2	54	40	280
42HS2A40-134	40	1.3	2.5	5.0	2.2	54	40	280
42HS2A40-126	28	1.2	3.2	2.8	2.2	54	40	280
42HS2A40-046	28	0.4	30	28	2.2	54	40	280
42HS2A48-174	52	1.7	1.8	3.2	2.6	68	48	350
42HS2A48-134	52	1.3	3.2	5.5	2.6	68	48	350
42HS2A48-234	46	2.3	1.2	1.6	2.6	68	48	350
42HS2A48-046	34	0.4	30	38	2.6	68	48	350

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
