Changzhou Sunrise Electric Motor Co., Ltd. >> 42hs2A48 2.3A 46n. Cm NEMA17 CNC 2phase Stepper Motor

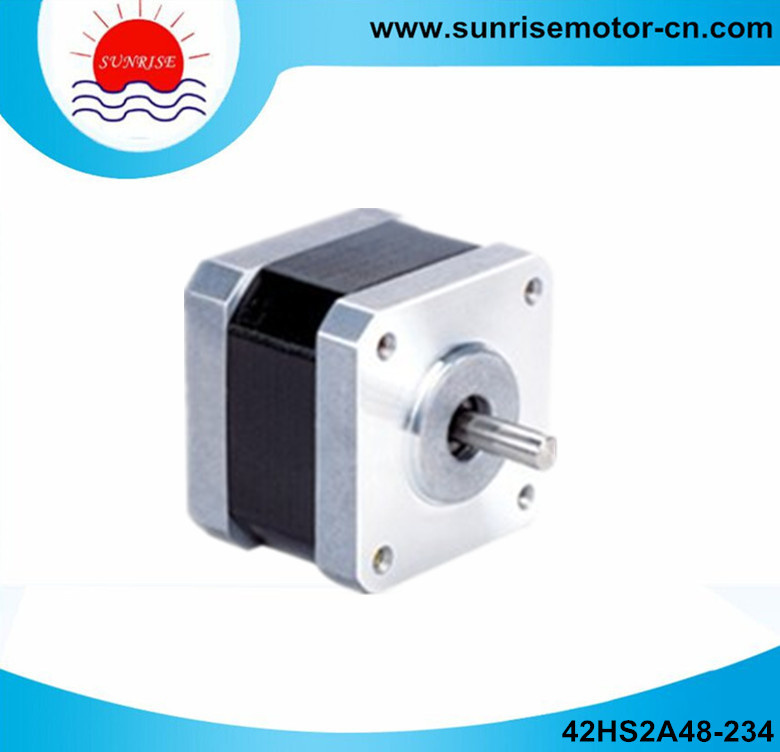

42hs2A48 2.3A 46n. Cm NEMA17 CNC 2phase Stepper Motor

42hs2A48 2.3A 46n. Cm NEMA17 CNC 2phase Stepper Motor
Price: US $ 8.23-8.55/Piece
Trade Terms: FOB,CIF,CIP
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: 42HS2A48-234
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: 42hs2A48-234
Holding Torque: 46n.Cm
Current: 2.3A
Resistance: 1.2ohms
Inductance: 1.6mh
Length: 48mm
Wire: 4
Weight: 350g
Type: Electromechanical
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Operate Mode: The Three Single Phase
Brand: Sunrise Motor
Certification: SGS

Product Description

42HS 2Phase Stepping motor
1.8° NEMA17



Model: 42HS2A48-234
Holding torque: 46N. CM
Current: 2.3A
Resistance: 1.2ohms
Inductance: 1.6mH
LENGTH: 48mm,
Weight: 350g,


Remark:
Motor are available with different winding and mechanical modification to meet specific applications.
ModelHolding Torque (N@ cm± 10%)Current/Phase(A)Resistance/Phase (ohms± 10%)Inductance/Phase (mH± 20%)Detent Torque
(N@ cm)
Rotor Inertia
(g-cm 2 )
Length
(mm)
Weight
(g)
42HS2A28-064120.68101.63428150
42HS2A34-134281.32.42.81.63434220
42HS2A34-174281.71.21.81.63434220
42HS2A34-044280.430351.63434220
42HS2A34-046210.430181.63434220
42HS2A34-026140.1675401.63434220
42HS2A40-174401.71.52.82.25440280
42HS2A40-134401.32.55.02.25440280
42HS2A40-126281.23.22.82.25440280
42HS2A40-046280.430282.25440280
42HS2A48-174521.71.83.22.66848350
42HS2A48-134521.33.25.52.66848350
42HS2A48-234462.31.21.62.66848350
42HS2A48-046340.430382.66848350
Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
