42mm BLDC Motor 24V 36V with Light Weight

Name: 42mm BLDC Motor 24V 36V with Light Weight
Brand: all-electronics-online.com
SKU: 838327305
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	US $ 13-20.5/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK42BLS
Name:	Jk42bls
Length:	Custom
Max Axial Force:	60n
Max. Radial Force:	220n
Label:	Custom
Temperature Rise:	80 Degree Max.
Radial Play:	0.02mm Max. (450g Load)
End Play:	0.03mm Max. (450g Load)
Inductance Accuracy:	20%
Shaft:	Custom
Application:	Power Tools
Operating Speed:	High Speed
Structure And Working Principle:	Brushless
Certification:	Ce, RoHS, SGS
Brand:	Jkongmotor

Product Description

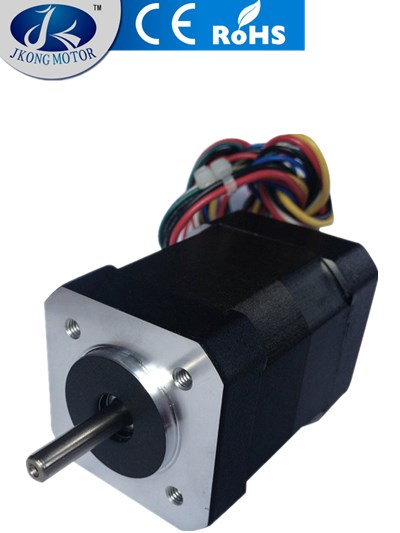

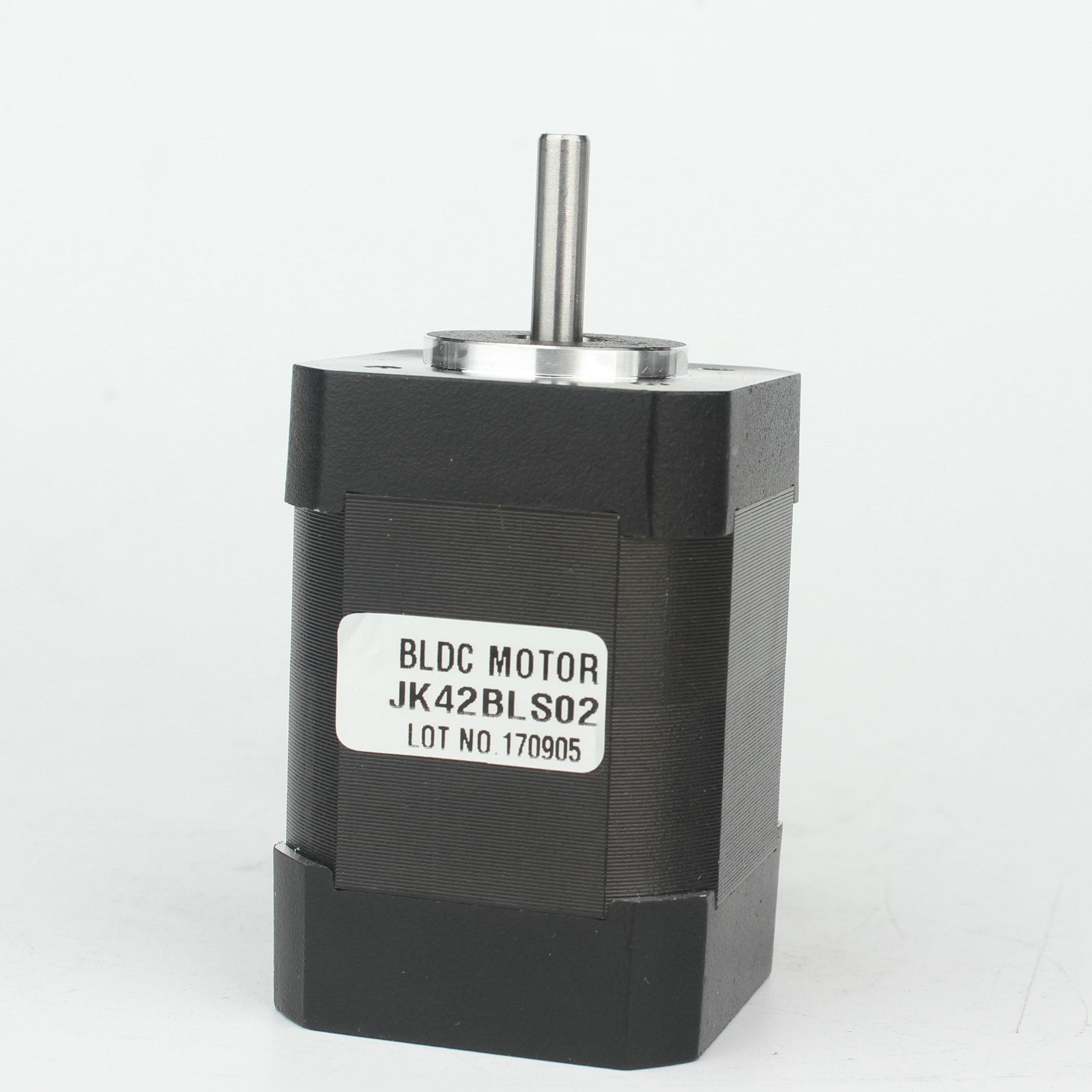

42mm 3phase brushless dc motor for cnc machine

General Specification:

Step Angle Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80°C Max
Ambient Temperature: -15°C~+50°C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)

Specification:

		Model
Specification	Unit	JK42BLS01	JK42BLS02	JK42BLS03	JK42BLS04
Number Of Phase	Phase	3
Number Of Poles	Poles	8
Rated Voltage	VDC	24
Rated Speed	Rpm	4000
Rated Torque	N.m	0.0625	0.125	0.185	0.25
Rated Current	Amps	1.8	3.3	4.8	6.3
Rated Power	W	26	52.5	77.5	105
Peak Torque	N.m	0.19	0.38	0.56	0.75
Peak Current	Amps	5.4	10.6	15.5	20
Back E.M.F	V/Krpm	4.1	4.2	4.3	4.3
Torque Constant	N.m/A	0.039	0.04	0.041	0.041
Rotor Inertia	g.cm²	24	48	72	96
Body Length	mm	41	61	81	100
Weight	Kg	0.3	0.45	0.65	0.8

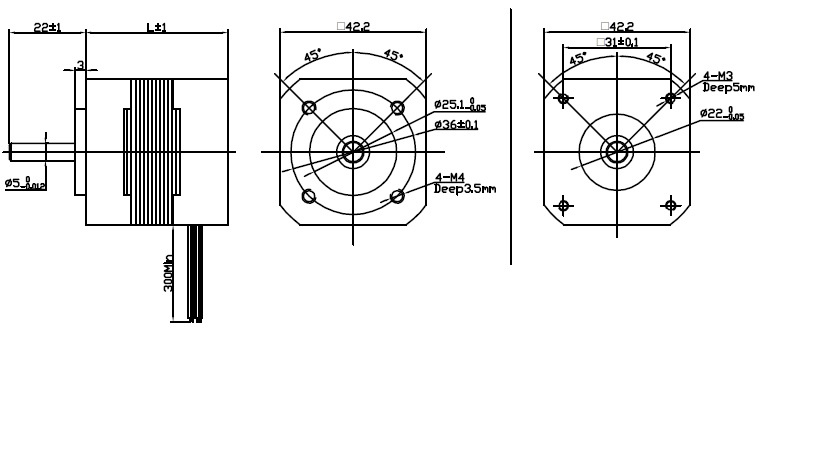

Dimensions:
(Unit=mm)

Applications:

Used for robots bldc motor,
e-bike bldc motor,
electronic automatic equipment bldc motor,
medical instrument bldc motor,
advertising instrument bldc motor,
Cnc router bldc motor.

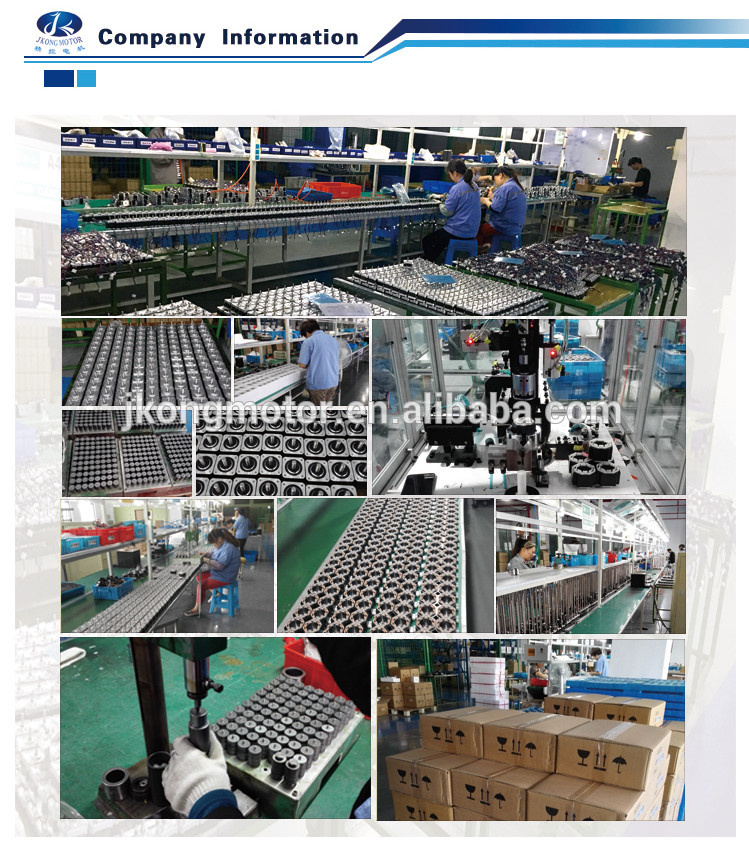

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
