42mm BLDC Panetary Gearbox Motor with Different Kinds Ratio

Name: 42mm BLDC Panetary Gearbox Motor with Different Kinds Ratio
Brand: all-electronics-online.com
SKU: 759656475
Availability: InStock
Rating: 4.4 (49 reviews)

Price:	US $ 35-45/Piece
Trade Terms:	FOB,CIF,DAT
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK42BLS01HSP56.5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	2 Phase
Ratio:	56.5
Colour:	Black
Shape:	Square
Type:	Electromechanical
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Brand:	Jk
Operate Mode:	Other
Certification:	CE and RoHS

Product Description

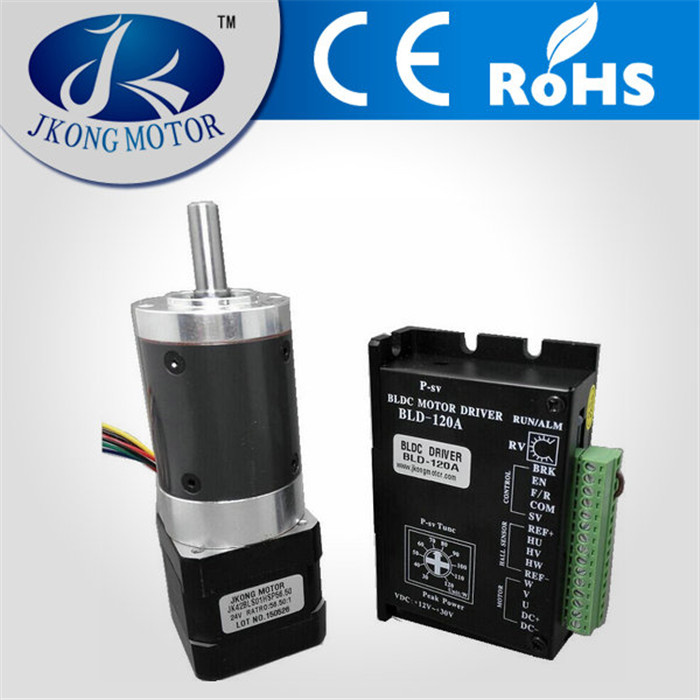

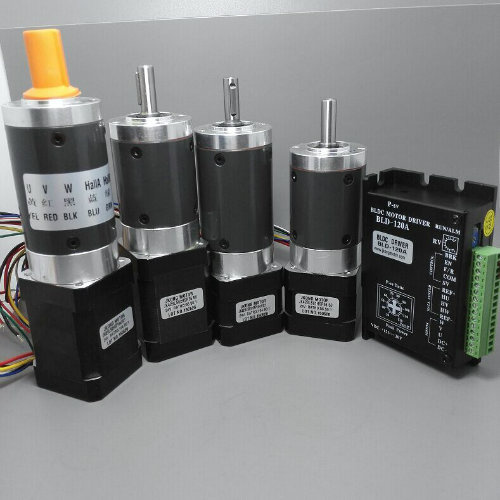

42mm bldc panetary gearbox motor with different kinds ratio

Descrition:

NEMA17 gearbox stepping motor , 42mm square stepper motor .
42mm planetary gearbox motor ,.

Applications:

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,
advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.

Winding type	Delta
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max. radial force	28N @ 20mm from the flange
Max. axial force	10N
Insulation class	Class B
Dielectric strength	500VDC for one minute
Insulation resistance	100MΩMin., 500VDC

Model	JK42BLS01	JK42BLS02	JKBLS03	JKBLS04
Number of poles	8
Number of phase	3
Rated voltage VDC	24
Rated speed RPM	4000
Continuous stall torque N.m	0.075	0.15	0.22	0.3
Rated torque N.m	0.0625	0.125	0.185	0.25
Rated power W	26	52.5	77.5	105
Peak torque N.m	0.19	0.38	0.56	0.75
Peak current A	5.4	10.6	15.5	20
Line to line resistance ohms	1.8	0.8	0.55	0.28
Line to line inductance mH	2.6	1.2	0.8	0.54
Torque constant Nm/A	0.035	0.0355	0.036	0.0376
Back E.M.F V/KRPM	3.66	3.72	3.76	3.94
Rotor inertia g.cm²	24	48	72	96
Body length mm	41	61	81	100
Mass Kg	0.3	0.45	0.65	0.8

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
