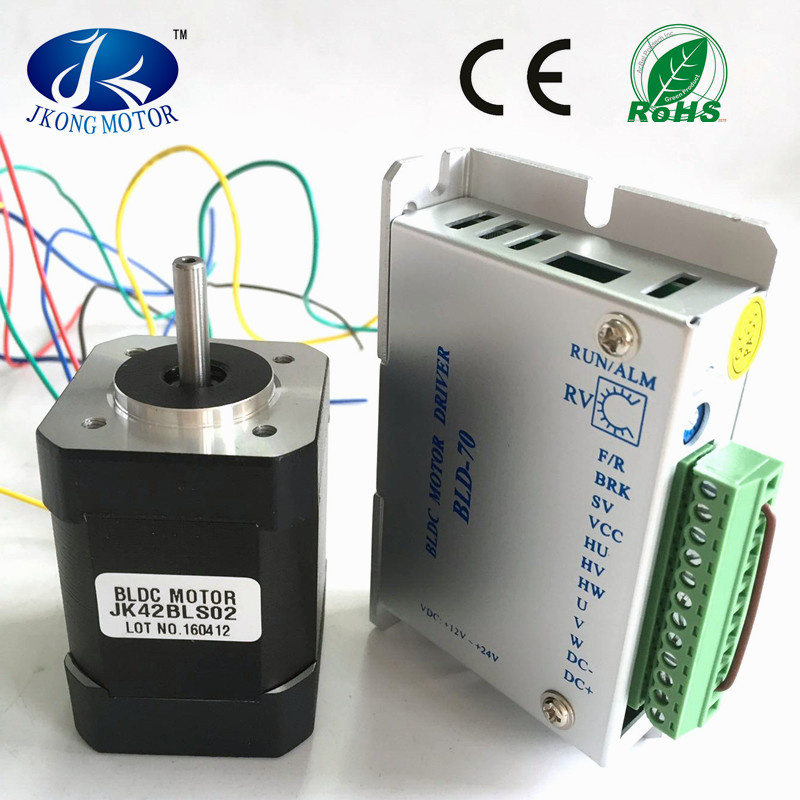

42mm Brushless DC Motor with Driver Jkbld-70

Name: 42mm Brushless DC Motor with Driver Jkbld-70
Brand: all-electronics-online.com
SKU: 788876035
Availability: InStock
Rating: 4.6 (108 reviews)

Price:	US $ 27.5-36.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK42BLS02+ JKBLD120
Voltage:	24V
Poles:	8
Frame Size:	42mm*42mm
Body Length:	61mm
Motor Wires:	8
Rated Speed:	4000rpm
Rated Torque:	0.125n.M
Output Power:	52.5W
No Load Speed:	5800rpm
Key Word:	BLDC Motor
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	by BLDC Motor
Type:	BLDC Motor
Certification:	Ce and RoHS
Brand:	Jkong Motor

Product Description

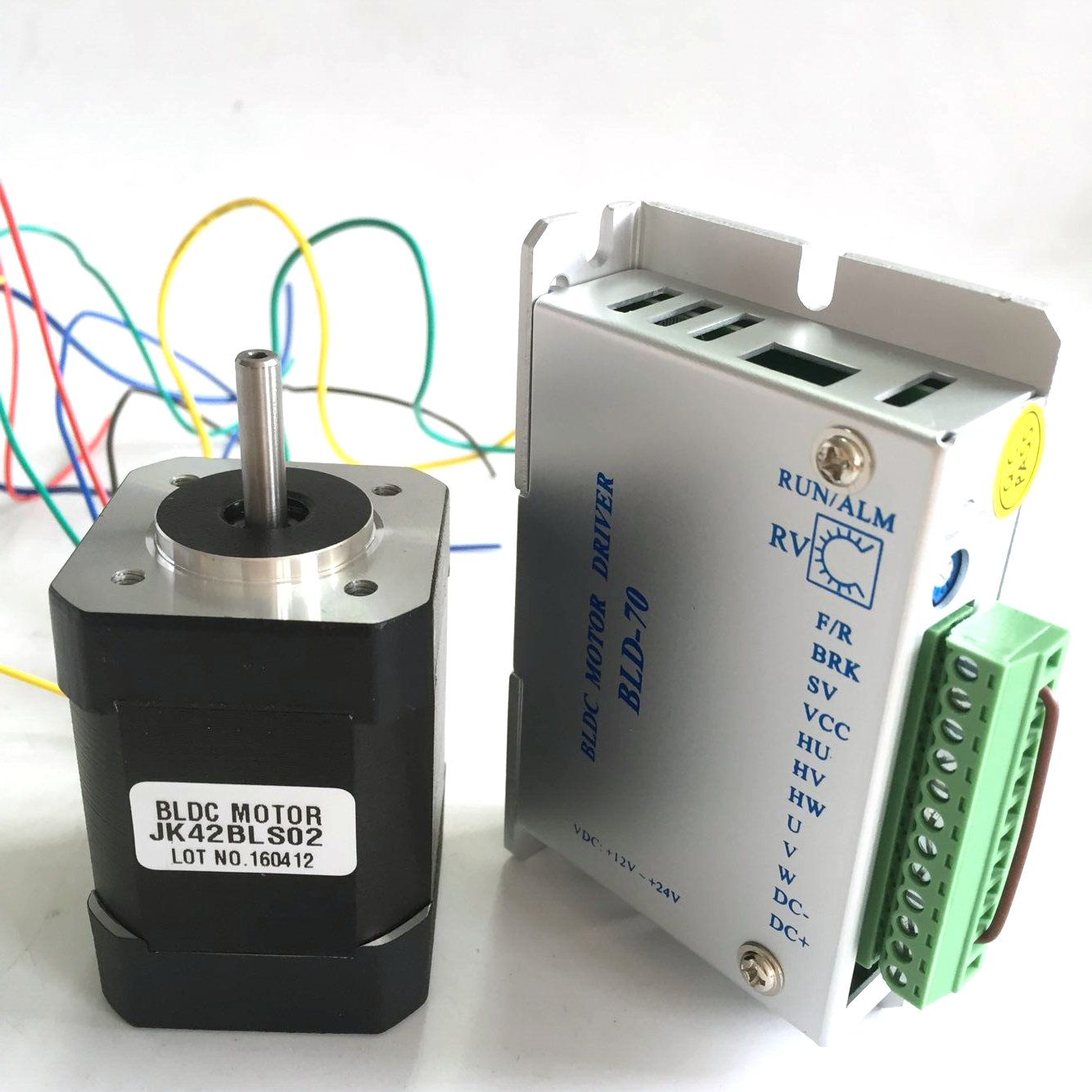

42mm brushless dc motor with driver JKBLD-70

General Specification:

Winding type	Delta
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
RadialPlay	0.02mm@450g
End Play	0.08mm@450g
Dielectric strength	500VDC for onr minute
Max radial force	75N@20mm from the flange
Max axial force	15N
Insulation resistance	100MΩMin.,500VDC

Electrical Specification:

Model	JK42BLS02
Number of poles	8
Number of phase	3
Rated voltage VDC	24
Rated speed RPM	4000
Rated torque N.m	0.125
Rated power W	52.5
Peak torque N.m	0.19
Peak current A	0.45
Line to line resistance ohms	1.8
Line to line inductance mH	2.6
Torque constant Nm/A	0.04
Back E.M.F Vrms/KRPM	4.1

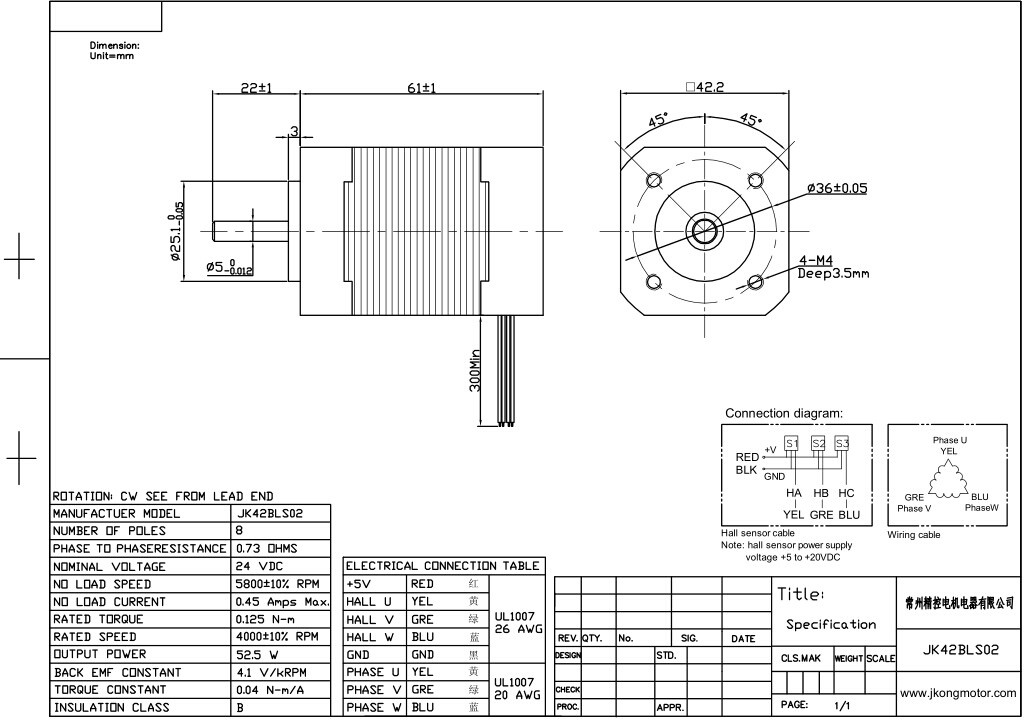

Drawing:

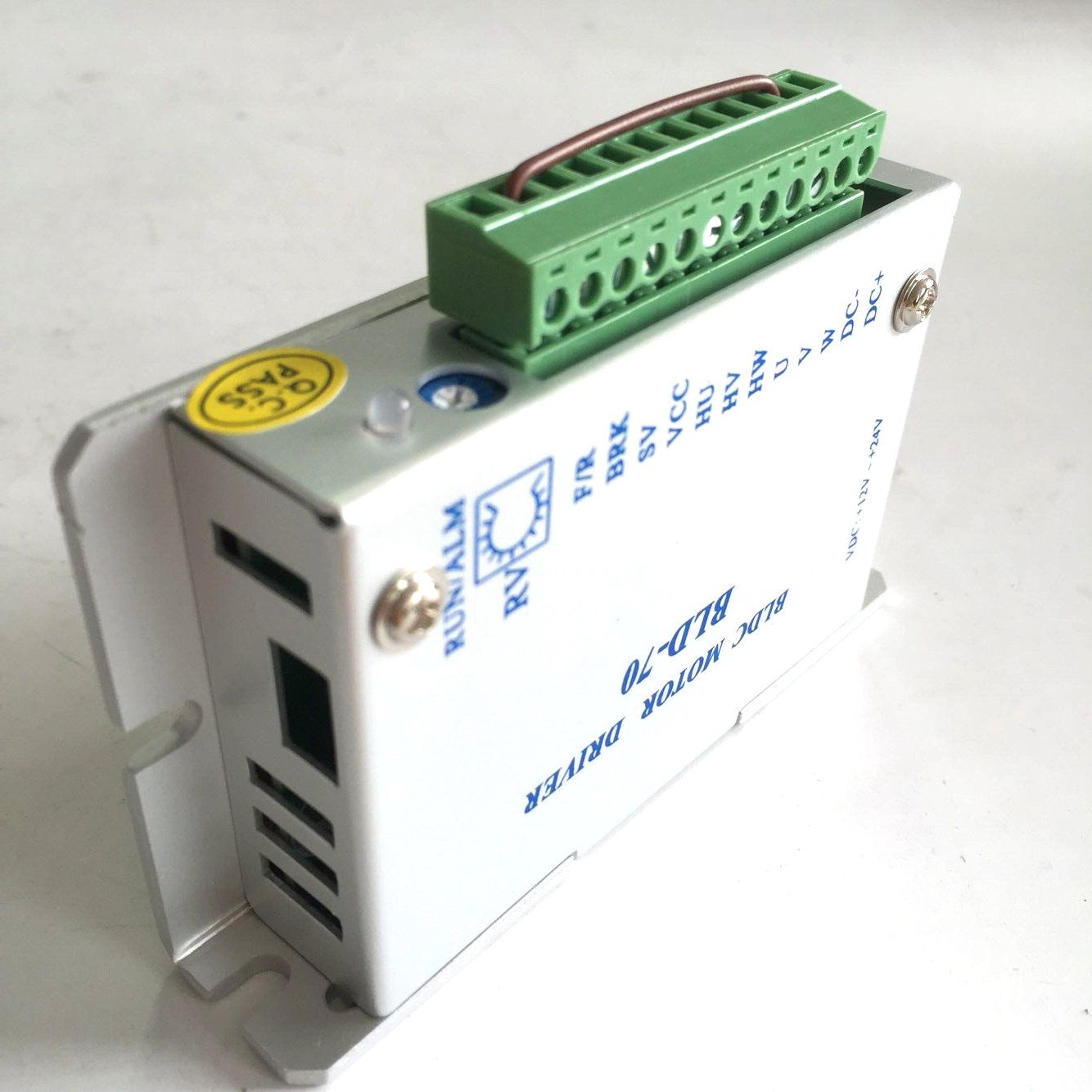

Matched Driver JKBLD-70

Description

The JKBLD70 is a high performance, cost-effective 3 phase BLDC motor drive

which can provide power output 70VA max. The design is based on advanced current

control technology and feature high torque, low noise, low vibration, over current

protection, over load protection

Electrical Specifications:

Parameter	Min	Rated	Max	Unit
Motor Hall Sensor Angle	120°/240°
DC Power Input	10	24	30	V
Drive Current Output		3	5	A
Suitable Motor Speed	0		20000	rpm
Hall Sensor Voltage	4.5	6.25	6.5	V
Hall Sensor Current		20		mA
External Potentiometer		10K		Ω

Connection Definition:

Mark	Definition
DC+/DC-	DC power input (DC10V~DC30V)
U,V,W	Motor lead wire
Hu,Hv,Hw	Hall sensor lead wire
Vcc	Hall sensor power supply +(+6.25V) and external potentiometer power supply +
DC-	Hall sensor power supply -
SV	External potentiometer
F/R	Direction: F/R connect to DC- :CCW F/R disconnect to DC- :CW
BRK	Quick brake: BRK connect to DC- : running BRK disconnect to DC- : brake

Speed Adjustment Instruction:

A. Motor speed adjusted by the internal potentiometer RV

B. Motor speed adjusted by the external potentiometer

C. Motor speed adjusted by analog signal 0V~+5V input

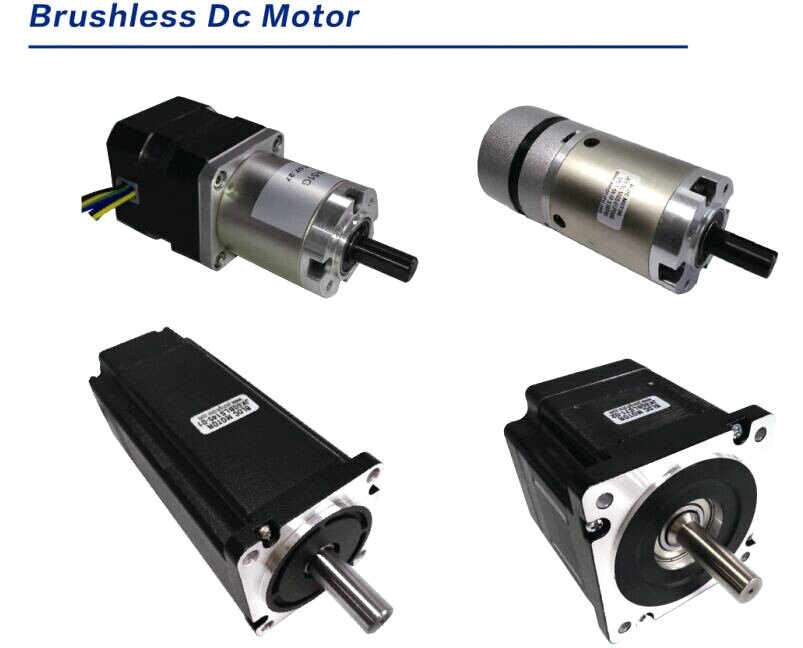

BLDC MOTOR IN HOT SELL
