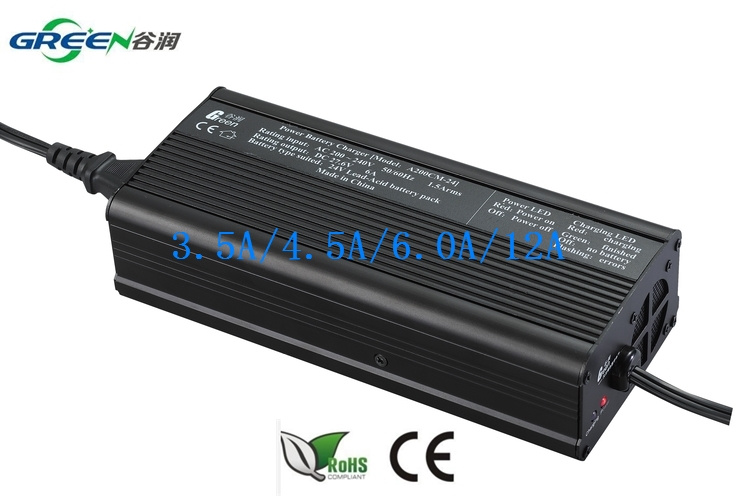

42V 5A Lipo Car Battery Charger
| Price: |
US $ 25.0-30.0/Piece |
| Trade Terms: |
FOB |
| Min Order: |
200/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
L200CM-36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| For Use: |
Standard Battery |
| Case: |
PC+ABS Plastic |
| Color: |
Yes |
| Recovery Function: |
Yes |
| MCU Controller: |
Yes |
| Customized: |
Yes |
| Reverse Potection: |
Yes |
| Short Circuit Protection: |
Yes |
| Delivery Date: |
3-4 Week After Confirm Order |
| Type: |
Lithium Battery |
| Charger Type: |
Li-ion Battery Charger |
| Charger Application: |
Electric Car/Tool/Bicycle/Wheelchair Charger |
| Nominal Voltage: |
42V |
| Compatible Battery Type: |
37V Li-ion/Polymer Battery |
| Size: |
213 X 94 X 54mm |
| Socket Type: |
VDE,UL,CCC,UK,PSE,SAA,CCC,TUV |
Product Description

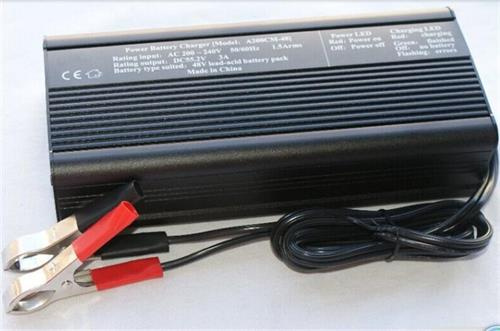

L200CM-36 LiPo Portable 10S 37V Li-ion Car Battery Charger
-
| Specification |
|---|
| Input: 120 or 240V (defined when order) |
| Output: 42.0V 5.0A |
| Charge Process: C.C--C.V.--Cut off |
| Charger Indicator: Red Charging/Green Finished |
| Output Protections: Short-circuit, Reverse Polarity |
| Safety Approval: CE |
| Size: 213 x 94 x 54mm |
| Suit for Battery: 37 Volt (10Cells) 8~50Ah Li-ion Battery Charger |
Feature:
Auto 4 stages (Pre-CC-CV-Cutoff) charging process.
Pre-charge function for deep discharged battery pack
Designed for 10 series Li-ion/polymer battery
With bi-color LED, red for charging green for finished Red flashing for errors, "off" for no battery
Protection mode for battery polarity reversed or the output connectors shorted.
Meet EN60335-2-29 and UL1310 safety requirements
Specification for L200CM-36
| Input Voltage | 100~120VAC or 220~240VAC, 50-60Hz |
| Input Current | 3.3A @ 100V input. |
| Input power factor | 0.7 |
CV Charge Voltage | L200CM-12 | L200CM-24 | L200CM-36 | L200CM-48 |
| 16.8V | 29.4V | 42.0V | 54.0V |
| Bulk charge current | Up to 15A | Up to 8A | Up to 6A | Up to 4.5A |
| Pre-charge current | 2A | 1.2A | 1.2A | 0.7A |
| Operate Temp. | -20ºC~40ºC |
| Cooling | Fan convection. Do not cover the charger. |
| Charge principle | Auto 4 stages (Pre-CC-CV-Cutoff) charging process. |
| Battery type | 10 series Li-ion/polymer battery |
| Battery capacity | 10-100Ah |
| Size | 213 x 94 x 54mm |

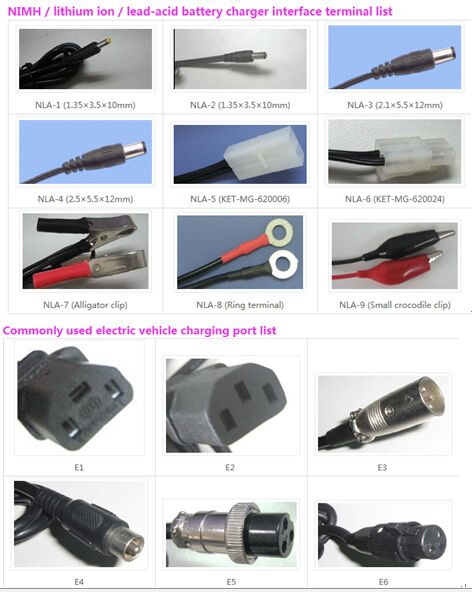

| Output cable | 1.5 meter 2xAWG16#, SPT1 wire, alligator clips |
| Input AC plug | IEC60320-C14 |
| Enclosure | Aluminium casing, with Fan cover. |
| Weight | 0.9kg |
Specification for L200CM-xx | Input Voltage | 100~120VAC or 220~240VAC, 50-60Hz |
| Input Current | 3.3A @ 100V input. |
| Input power factor | 0.7 |
CV Charge Voltage | L200CM-12 | L200CM-24 | L200CM-36 | L200CM-48 |
| 16.8V | 29.4V | 42.0V | 54.0V |
| Bulk charge current | Up to 15A | Up to 8A | Up to 6A | Up to 4.5A |
| Pre-charge current | 2A | 1.2A | 1.2A | 0.7A |
| Operate Temp. | -20ºC~40ºC |
| Cooling | Fan convection. Do not cover the charger. |
| Charge principle | Auto 4 stages (Pre-CC-CV-Cutoff) charging process. |
| Battery type | 4 series Li-ion/polymer battery |
| Battery capacity | 10-100Ah |
| Size | 213 x 94 x 54mm |
| Output cable | 1.5 meter 2xAWG16#, SPT1 wire, alligator clips |
| Input AC plug | IEC60320-C14 |
| Enclosure | Aluminium casing, with Fan cover. |
| Weight | 0.9kg |
Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.
After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.
Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.
We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
