| Prod Model: |
G100-36F |
| For Use: |
Standard Battery |
| Case: |
PC+ABS Plastic |
| Customized: |
Yes |
| Color: |
Yes |
| Recovery Function: |
Yes |
| Short Circuit Protection: |
Yes |
| Reverse Potection: |
Yes |
| MCU Controller: |
Yes |
| Delivery Date: |
About 15 Days After Confirm Order |
| Type: |
LiFePO4 Battery |
| Charger Type: |
LiFePO4 Battery Charger |
| Charger Application: |
Electric Wheelchair, Electric Scooter |
| Nominal Voltage: |
43.2V |
| Compatible Battery Type: |
38.4 Volt (12cells) 2~12ah LiFePO4 Battery |
| Size: |
170 X 70 X 51mm |
| Socket Type: |
VDE,UL,CCC,UK,PSE,SAA,CCC,TUV |
Product Description

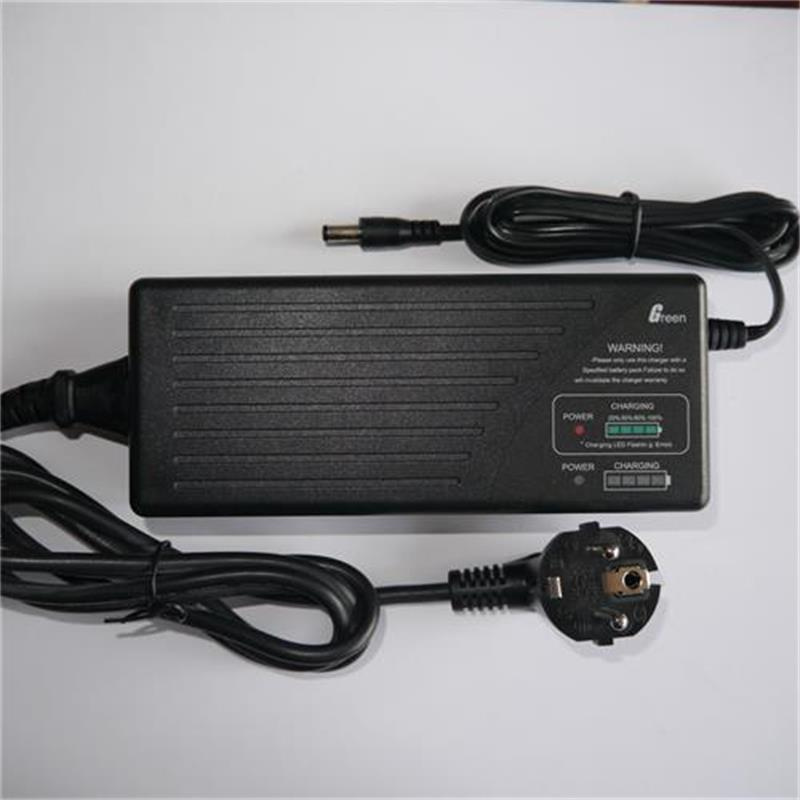

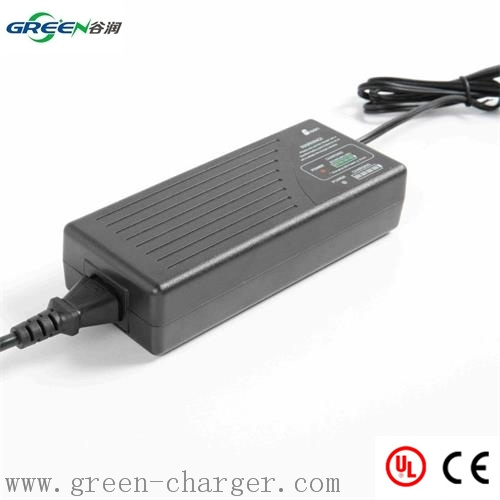

G100-36F Smart Car Battery Charger for 38.4V LiFePo4 Battery
| Specification |
|---|
| Input: 100~240V |
| Output: 43.2V 2.0A |
| Charge Process: CC(pre-charge)-CC(bulk)-CV-cutoff |
| Charger Indicator: With 20%~100% 4 LEDs Battery Meter |
| Output Protections: Short-circuit, Reverse Polarity... |
| Safety Approval: CE cUL Approved |
| Size: 170 x 71 x 41mm (plastic) |
| Suit for Battery: 38.4 Volt (12Cells) 2~12Ah LiFePo4 Battery Charger |
G100-36F family products are main member of Green Digital Power-tech Co., Ltd. It represents today's new technology for 38.4V 12 Cell LiFePo4 battery pack charging. G100-36F programmed 4 auto stages (Pre-CC-CV-Cutoff) charging process, It is designed for 3~25Ah LiFePo4 battery pack. Stage "Pre" is a pre-charge function for deep discharged battery pack, this is helpful for battery's cycle life. The pre-charge current is less than 1/3 C.C value. When the battery recovered by pre-charge small current, stage "CC" will give constant current charging, the charge current up to 90W. Then, "CV" stage is followed, the output voltage is limited on C.V value, until the charge current declined to 1/8 C.C. At this stage, the battery is charged completely and the charger will cut off output automatic.
Further, G100-36F can display the charging process, indicate the battery capacity from 25% to 100% timely. This is helpful for user.
For more safety, G100-36F will inter protection mode when the battery polarity reversed our the output connectors shorted.
General Specification for G100-36F
Input Voltage: AC 100~240V 50/60Hz
100-240VAC, 50-60Hz |
Input Current: Max. 1.6A
Max. 1.6A |
| Output | G100-12F |
| C.V | 14.4V |
| C.C | 5.0A |
| Operating | -20ºC~40ºC |
| Cooling | No fan designing, natural convection. Do not cover the charger. |
| Charge process | Auto 4 stages: Pre-CC-CV-Cutoff
Cut-off when charge finished. |
| Battery | 38.4V 12 Cell LiFePo4 Battery-pack. |
| Size | 170 x 70 x 51mm |
| Enclosure | ABS+PC Plastic housing, inlet type C8 or C14 |
| Weight | 400g |
How to use:
1.Connect the AC cord to the socket, The "power" lamp will light on solid.
2.Connect positive charger clip (red) to positive battery terminal, the black clip to negative. (You can use other dc plugs to connect battery), the "25%~100%" lamps will light on flowing. If the battery polarity reversed or output shorted, "Warning" lamp will flashing, please check the setup.
3.Depend on the charged capacity, 25%~100% lamps will lights up solid sequence, until the battery is fully charged. Then you can power off the charger and disconnect the battery or you can charge a new battery if you need.
An example shows the duration of 80% state charged for an empty battery.
| Battery capacity | G100-24L |
| 3.2Ah | 1.5 hours |
| 7.0Ah | 3 hours |
| 12Ah | 5 hours |
| 25Ah | 10 hours |
Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.
After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.
Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.
We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
