43.8V 5A LiFePO4 Car Battery Charger

Name: 43.8V 5A LiFePO4 Car Battery Charger
Brand: all-electronics-online.com
SKU: 772478185
Availability: InStock
Rating: 5 (97 reviews)

Price:	US $ 24-30/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	L200CM-36F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
For Use:	Standard Battery
Case:	PC+ABS Plastic
Color:	Yes
Recovery Function:	Yes
MCU Controller:	Yes
Customized:	Yes
Reverse Potection:	Yes
Short Circuit Protection:	Yes
Delivery Date:	About 15 Days After Confirm Order
Type:	LiFePO4 Battery
Charger Type:	LiFePO4 Battery Charger
Charger Application:	Electric Car/Tool/Bicycle/Wheelchair Charger
Nominal Voltage:	43.8V
Compatible Battery Type:	38.4 Volt (12cells) 8~50ah LiFePO4 Battery
Size:	213 X 94 X 54mm
Socket Type:	VDE,UL,CCC,UK,PSE,SAA,CCC,TUV

Product Description

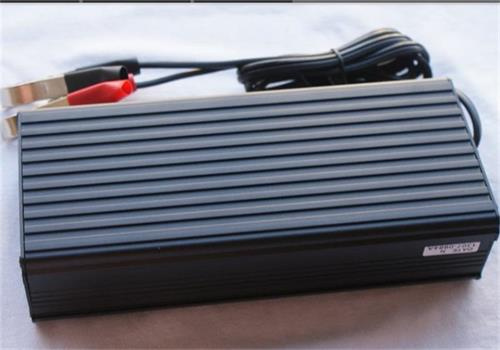

L200CM-36F Smart Car Battery Charger for 38.4V LiFePo4 Battery

Specification
Input: 120 or 240V (defined when order)
Output: 43.2V 5.0A
Charge Process: C.C--C.V.--Cut off
Charger Indicator: Red Charging/Green Finished
Output Protections: Short-circuit, Reverse Polarity
Safety Approval: CE
Size: 210 x 93 x 53mm (Aluminum)
Suit for Battery: 38.4 Volt (12Cells) 8~50Ah LiFePo4 Battery Charger

Feature:

Auto 4 stages (Pre-CC-CV-Cutoff) charging process.

Pre-charge function for deep discharged battery pack

Designed for 12 series LiFePo4 battery

With bi-color LED, red for charging green for finished Red flashing for errors, "off" for no battery

Protection mode for battery polarity reversed or the output connectors shorted.

Meet EN60335-2-29 and UL1310 safety requirements

Specification for L200CM-36F

Input Voltage	100~120VAC or 220~240VAC, 50-60Hz
Input Current	3.3A @ 100V input.
Input power factor	0.7
CV Charge Voltage	L200CM-12F	L200CM-24F	L200CM-36F	L200CM-48F
	14.6V+-1%	29.2V+-1%	43.8V+-1%	54.8V+-1%
Bulk charge current	12A+-5%	6.0A+-5%	5.0A+-5%	4.0A+-5%
Pre-charge current	1A	0.6A	0.5A	0.4A
Operate Temp.	-20ºC~40ºC
Cooling	Fan convection. Do not cover the charger.
Charge principle	Auto 4 stages (Pre-CC-CV-Cutoff) charging process.
Battery type	12 series LiFePo4 battery
Battery capacity	10-100Ah
Size	213 x 94 x 54mm

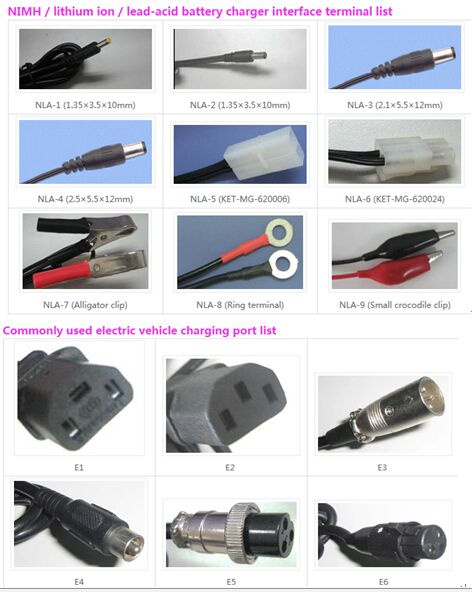

Output cable	1.5 meter 2xAWG16#, SPT1 wire, alligator clips
Input AC plug	IEC60320-C14

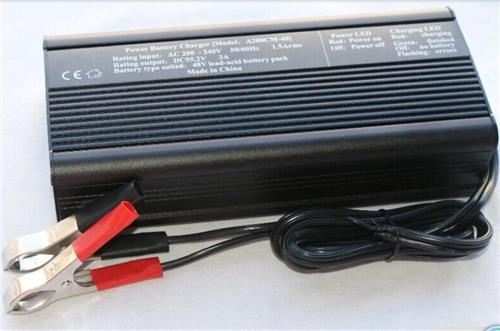

Enclosure	Aluminium casing, with Fan cover.
Weight	0.9kg

If you have specific parameters and requirements for our High Power Lead-Acid Battery Charger, customization is available

For more details, please link Company homepage http://www.green-charger.com/en/.

Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.

After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.

Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.

We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
