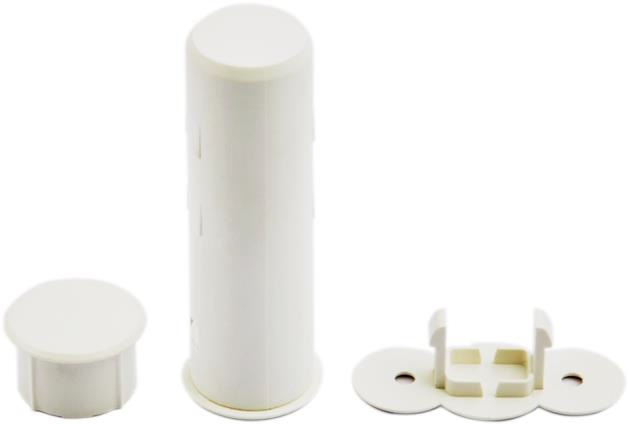

433MHz 345MHz 319 MHz Wireless Door Contact Sensor

Prod Model:	WC-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation:	Surface Mount
Warranty:	2 Years
Wireless Signal Range:	450 Ft, Open Air
Certification:	CE

Product Description

345M HZ wireless door window contact transmitter
Replace 2GIG's DW10-345
ultra low current consumtion: less than 3uA quiescent current
Alarm alert, Low battery warning, timer communication
2 pieces of CR2032 lithium battery operated for 3 years at least
Excellent design
Stability and reliability
SMT processing with quality components
Meet FCC Part 15 or EMC request
Compatible with Honeywell, 2GIG's control panel
Warranty: 2 years

 The WC10 is a surface mounted Door/Window Contact that can be installed on doors, windows, and many other objects that open and close. The sensor transmits signals to the control panel or receiver when a magnet mounted near the sensor is moved away from or closer to the sensor. The sensor has an external input that accepts N/C dry contact devices. The sensor is also equipped with a cover tamper for additional security.

 Models available:
WC10-H: compatible with Honeywell and 2GIG wireless panel(345MHz)
WC10-2: compatible with 2GIG wireless panel(345MHz)
WC10-G: compatible with GE Intelogix wireless panel(319.508MHz)
WC10-D: compatible with DSC wireless panel(433.92MHz)
WC10-V: compatible with Visonic wireless panel(433.92MHz)

Note:Otherprotocol and frequency available upon special request.
