433MHz Garage Door Remote Control Duplicator for Alarm System Yet097

Name: 433MHz Garage Door Remote Control Duplicator for Alarm System Yet097
Brand: all-electronics-online.com
SKU: 836153095
Availability: InStock
Rating: 4.3 (78 reviews)

Price:	US $ 1-5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YET097
Application:	Car, Motor,Home,Door,Window,etc
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Battery Type:	AAA Battery
Material:	Metal and ABS

Product Description

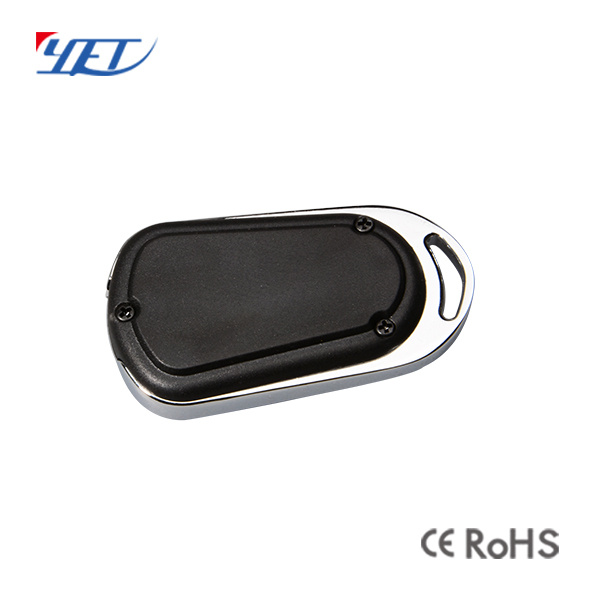

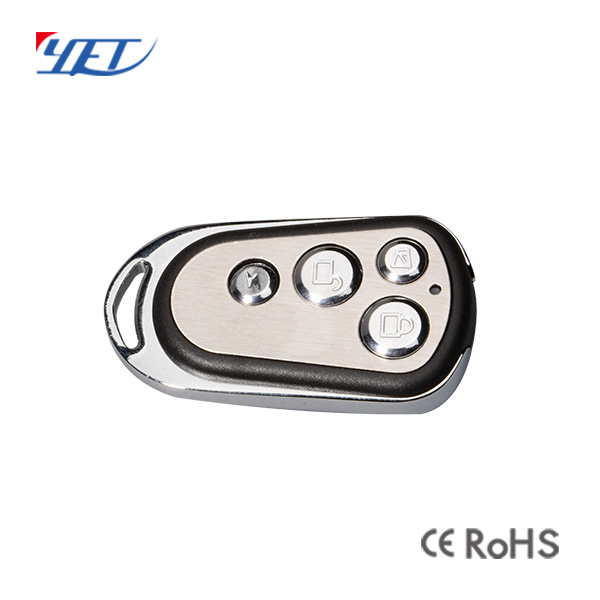

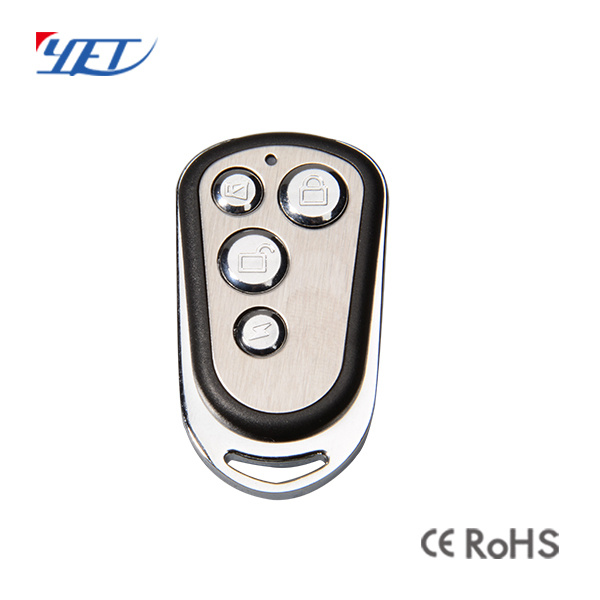

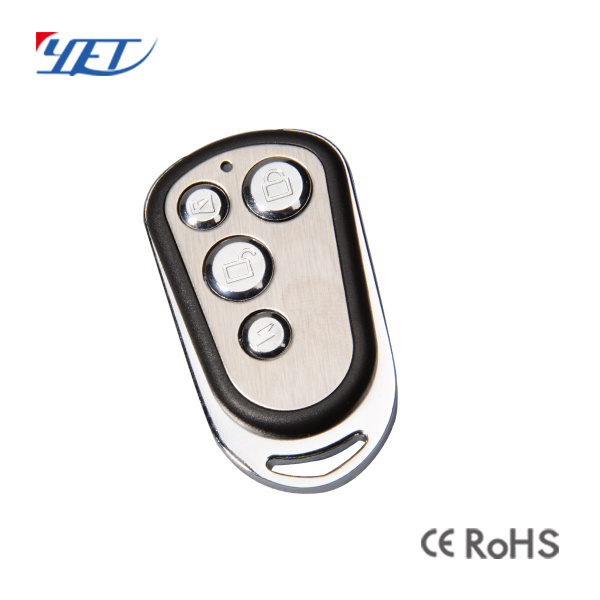

433mhz Garage Door Remote Control Duplicator for Alarm System YET097

More than 100 kinds models of remote control with good quality reasonable price,widely used in garage door ,rolling door , car alarm system ,home appliance,remote switch ,LED and other industral control . They are sold to Europe ,South America ,Japan and other world market.....

wireless remote control for car alarm,auto alarm,motorcycle alarm,led light,wireless romote control for warehouse door,carbarn door and gate door,smart key,civil security as house security,commercial security,industrial area by fixed code learning code rolling code and other codes. With low consumption but high efficiency, it will be more and more important to human life

If you are extending existing systems or adding new users to existing systems, we advise you to use transmitters identical to those currently in use.

Characteristics:
1.Various crust for your choice
2.Materail:Metal and PVC
3.Encoding type:Fixed code/learning code /rolling code(optional)
4.High stability:Adopting imported SMT component SAW and super high frequency audion(6.5G)

Main technical Data:
1.Operating voltage:D12V
2.Operating Current:<=12mA
3.Operation frequency:303MHZ/310MHZ/315MHZ/433.92MHZ optional
4.Transmit Power>=10mW
5.Transmission speed:50-60KHz
6.Frequency windage: ±0.2MHz
7.Transmission distance:100meters (open space)
8.Oscillation resistance:Per customer's request
9.Chip and operating mode:Hopping code(HC301,300,200 and so on)
a,Fixed code(2262,2260 and so on)
b,Learning code(1527,2240,HT6P20B,HT6P20D and so on)
c,Copy code

Copy procedure of Copy code remote control

1, Code delete: Push any two buttons at the same time about 10 sceonds. As you see the Led light flashing (about 2 second) and then slowly flashing (about 1 second), which means delete successful and the led light would never bright again as you push the 2 buttons at the same time.

2, Copy:Put the two remote control together, first, push one of copy remote control button,the led light flash one time, then push one button of the copied remote control, it is success as you see the led light is brighting all the time. Use the same way to copy other buttons.PS:If it can not work within 5 second, pls try it again.

3, With regard to the difficult copy remote control, you can change the copied remote control position around the copy remote control to find the best copy position.

4, The other copy ways as the same of the above.

Photos

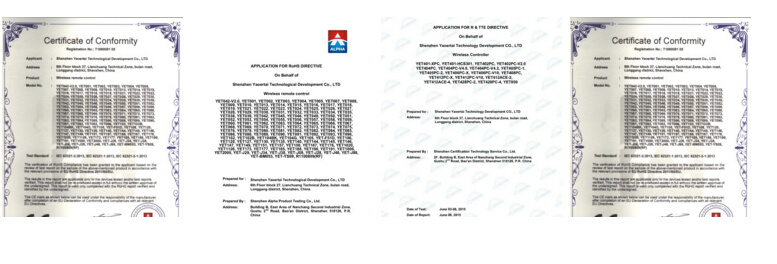

Certifications CE & Rohs

Company Information

Established in 2005, Shenzhen Yaoertai Technology Development Co., Ltd. specializes in designing, developing, manufacturing and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories.

Our product have won CE and RoHS Certification. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our products are exported to Australia, Latin America, Southeast Asia, North America, the Middle East and Europe.

We welcome OEM and ODM orders. Professional engineer are available to assist you further. Please contact us for possible project

Packing & Delivery
Packaging Details: PC Bag, Blister Package, Paper Box, according to customer's requirements.
Delivery Time: 3-5 working days for 100-500pcs BFT Remote Control

Our Service
1) Your inquiry will be replied within 12 hours
2) OEM&ODM are provided
3) Keep your ideas and all related information confidential
4) Delivery by air mail or ship according to your request
5) Item: remote control

FAQ
Q1: How can I find a suitable module?
A: Please show us the frequency (433.92MHz is the most common frequency) and chip (fixed code, learning, rolling code or duplicator). OR take a clear picture of the PCB board, and pass it to us, we will help you find it and recommend the right items.

Q2: May I have samples for testing?
A: Yes, samples are available and they will be ready in 3 working days, please check the model and code & frequency needed.

Q3: How to program it?
A: The programming is different from code to codes, we can provide you a manual or video.

Shenzhen yaoertai Technology Co., Ltd established in 2005 and specialized in home automation remote control, controller, receiver module and other security accessories.

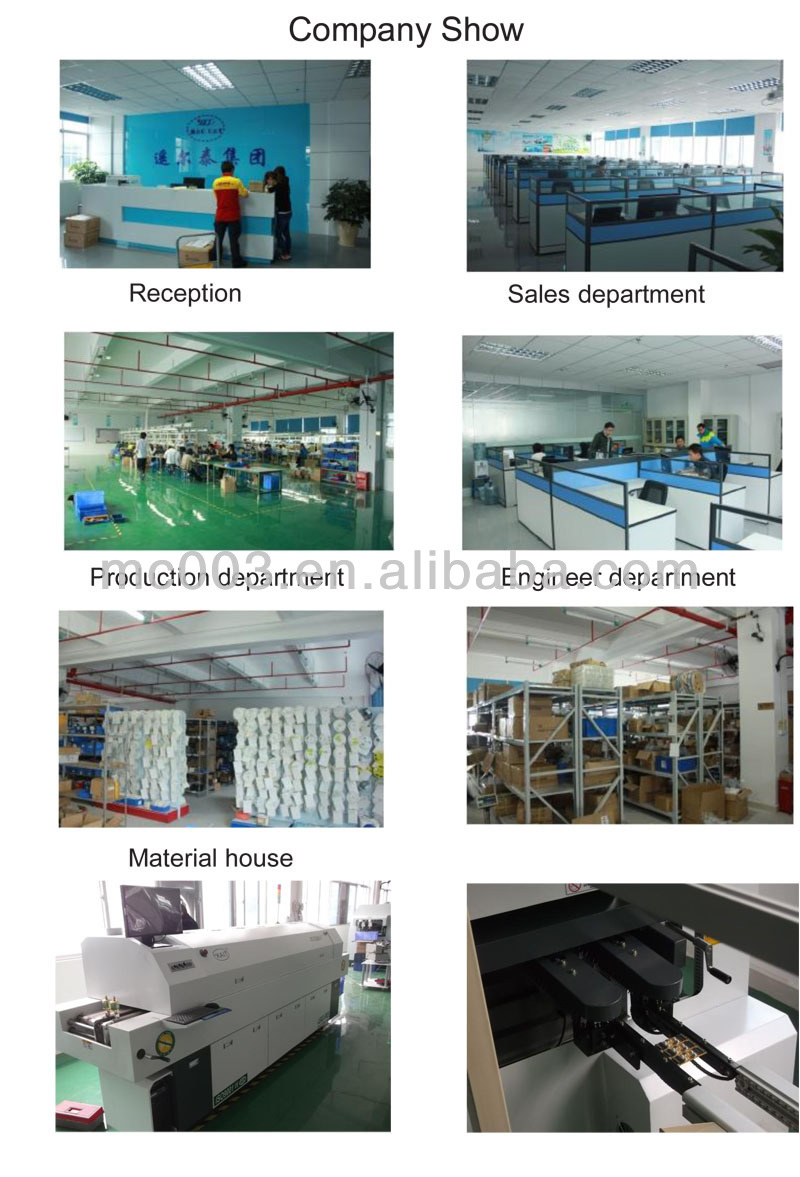

We always make great efforts to develop new products to meet different market and demands. Our factory Located in Shenzhen city so we can enjoy convenient transportation. Our company occupies an area of 1, 000 M2. There are Six production flows in our factory, which is SMD, Reflow Soldering, Parts Inserting, Post Soldering, assembly and Packing. Strictly quality control is performed in every procedure from material sourcing, processing, and testing to packing. Our annual production capacity is 4, 000, 000PCS and all our products certified with CE, RoHS.

Our products gain wide praises from domestic and abroad! Our main market is Middle East; European, Southeast Asia and South America. OEM and ODM orders are welcomed. Please contact our sales team for products selection or customized services. We will try our best to satisfy you! Reliable quality and best service is our pursuit!

We warmly welcome customers from domestic and abroad to establish business relationship and create a bright future with us!
