SHENZHEN YAOERTAI TECHNOLOGICAL DEVELOPMENT CO., LTD. >> 433MHz Remote Control for Garage Door RF Transmitter Yet076

433MHz Remote Control for Garage Door RF Transmitter Yet076

433MHz Remote Control for Garage Door RF Transmitter Yet076
Price: US $ 1-5/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: YET076
OEM,ODM: Acceptable
Sample: Avaiable
Frequency: 315/433MHz
Chip: Learning/Fixed/Rolling/Copy Code
Oscillation Resistance: Under Your Request
Frequency Modulation: Am
Buttons: 4 Buttons
Delivery For Sample Order: 2 Working Days
Delivery For Bulk Order: 7-12 Working Days
Warranty: 1 Year
Application: Car, Motor,Home,Door,Window,etc
Signal Transmission: RF Remote Control
Type: Button
Certification: CE
Universal: Universal
Transmission Distance: 50-100m
Voltage: 12V
Battery Type: AAA Battery
Material: Metal, ABS ,Silicone

Product Description

433MHz Remote Control for Garage Door RF Transmitter Yet076

Wireless remote control for car alarm, auto alarm, motorcycle alarm, led light, wireless remote control for warehouse door, carbarn door and gate door, smart key, civil security as house security, commercial security, industrial area by fixed code/ learning code/ rolling code and other codes. With low consumption but high efficiency, it will be more and more important to human life.



Characteristics:

1. Various cases and design for your choice

2. Accept OEM and ODM

3. Metal and ABS materials

4. High stability: adopting imported SMT component SAW and super high frequency audion(6.5G)



Main TechData

1.Operating voltage:DC6~12V

2.Operating Current:<=12mA

3.Operation frequency:303MHZ/315MHZ/433MHZ/868MHZ/others

4.Transmit Power>=10mW

5.Transmission speed:50-60KHz

6.Frequency windage: ±0.2MHz

7.Transmission distance:100meters (open space)

8.Oscillation resistance: Per customer's request

9.Chip and operating mode: Hopping code: HC301,300,200 and so on

                                    Fixed code: 2262,2260 and so on

                                    Learning code:1527,2240,HT6P20B,HT6P20D and so on

   Copy code: chip is used the special chip, can copy other remote control, can be used by oneself

Methods of operation

1. Clear out code:

Press A and B at the same time, two seconds later, LED flashes three times, followed by a continuous fast blinking. Indicates that the remote control code stored was deleted.

2. Duplicating (learning)

Right Hands press original remote control A, and left hand press remote control duplicator A', 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A',B-B') three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. That's mean successfully copied.

3. Recovery code

Press A and C at same time , 3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored.

The other way, you can delete all and relearn them again

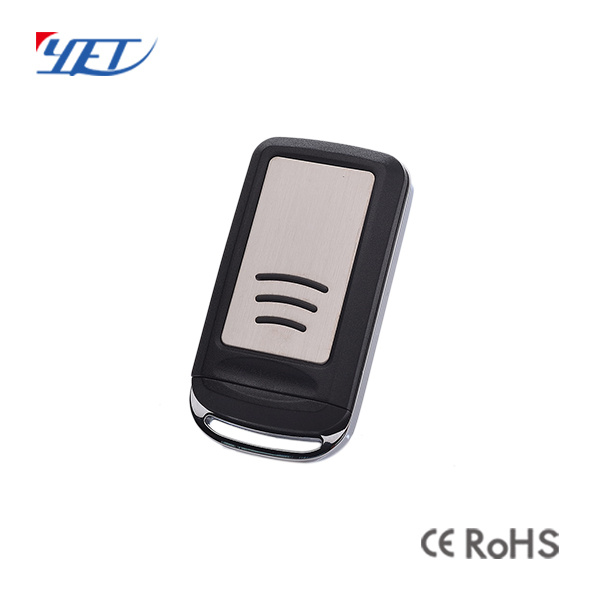

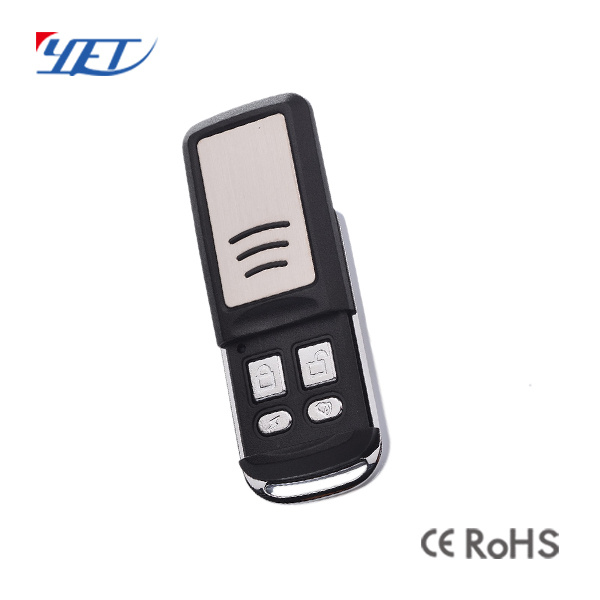

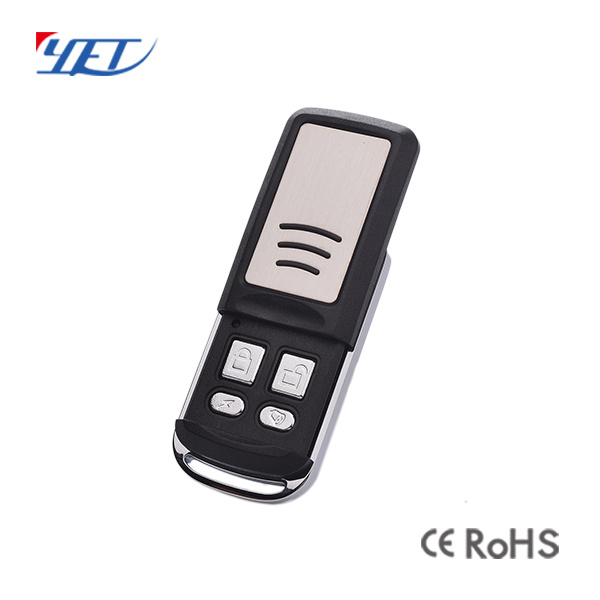

Product Show






Related Products

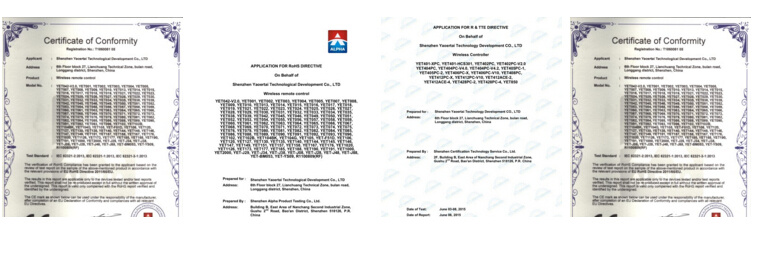

Certifications CE & Rohs

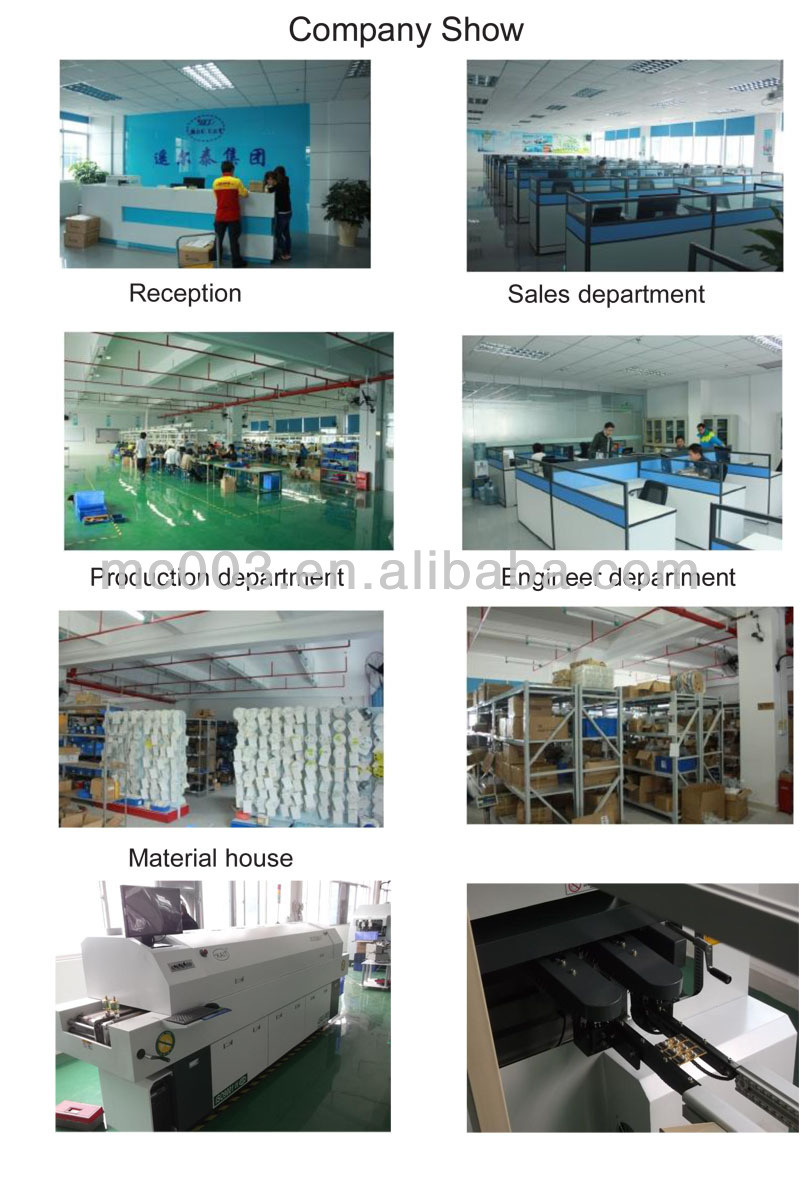

Our Company



Established in 2005, Shenzhen Yaoertai Technology Development Co., Ltd. specializes in designing, developing, manufacturing and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories.

Our product have won CE and RoHS Certification. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our products are exported to Australia, Latin America, Southeast Asia, North America, the Middle East and Europe.

We welcome OEM and ODM orders. Professional engineer are available to assist you further. Please contact us for possible project




Packing & Delivery
Packaging Details1. PC bag with master carton, 500PCS per case
2. Blister package with master carton
3. White box with master carton
4. Color box with master carton
Delivery Time3~7 working days after received payment


Our Service
1. Your inquiry related to our products or prices will be replied in 12 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM,any your customized products we can help you to design and put into production
4. Protection of your sales area, ideas of design and all your private information
5. Deliver by air mail or ship for your orders.

Extra service:
1. Logo printed
2. Sample for testing could be arranged
3. Sample could ship out by DHL,FEDEX or TNT or EMS in 3 days after confirmation.



FAQ
Q1: How can I find a suitable module?
A: Please show us the frequency (433.92MHz is the most common frequency) and chip (fixed code, learning, rolling code or duplicator). OR take a clear picture of the PCB board, and pass it to us, we will help you find it and recommend the right items.

Q2: May I have samples for testing?
A: Yes, samples are available and they will be ready in 3 working days, please check the model and code & frequency needed.

Q3: How to program it?
A: The programming is different from code to codes, we can provide you a manual or video

Shenzhen yaoertai Technology Co., Ltd established in 2005 and specialized in home automation remote control, controller, receiver module and other security accessories.

We always make great efforts to develop new products to meet different market and demands. Our factory Located in Shenzhen city so we can enjoy convenient transportation. Our company occupies an area of 1, 000 M2. There are Six production flows in our factory, which is SMD, Reflow Soldering, Parts Inserting, Post Soldering, assembly and Packing. Strictly quality control is performed in every procedure from material sourcing, processing, and testing to packing. Our annual production capacity is 4, 000, 000PCS and all our products certified with CE, RoHS.

Our products gain wide praises from domestic and abroad! Our main market is Middle East; European, Southeast Asia and South America. OEM and ODM orders are welcomed. Please contact our sales team for products selection or customized services. We will try our best to satisfy you! Reliable quality and best service is our pursuit!

We warmly welcome customers from domestic and abroad to establish business relationship and create a bright future with us!
