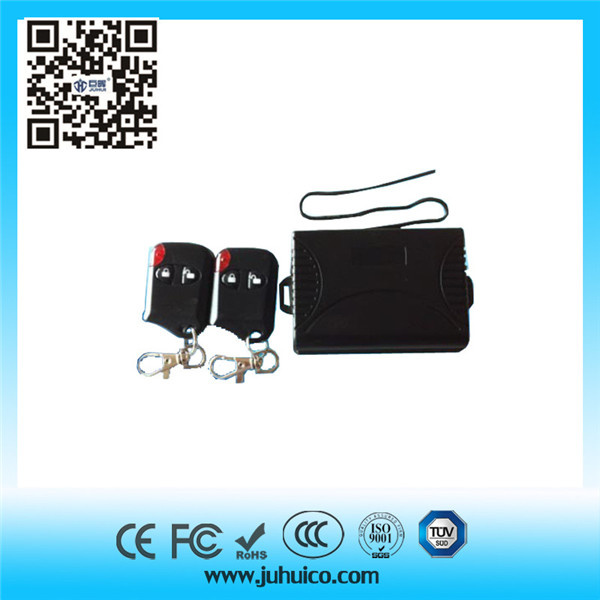

433MHz RF Receiver and Remote Control Kit System (JH-RX02-B)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
200/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
JH-RX02-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Juhui or Customized |
| Working Voltage: |
AC/DC 12V-24V |
| Working Curren: |
18mA |
| Sensitivity: |
-107dBm |
| Contact Power: |
7A 240VAC/10A 24VDC |
| MOQ: |
300PCS |
| Lead Time: |
15-20 Days |
| Momery: |
100 Codes |
| Mode: |
Bistable and Monostable Is Optional |
| Communications Mode: |
Ask |
| Application: |
Automatic Doors |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
Product Description
Usage:
The remote controller can be made with different decode and frequency and channels as your request. They are widely used in garage door remote controller, rolling door remote controller, sliding gate, remote controller electric vehicle alarm remote controller, motorcycle alarm remote controller, ceiling fan remote controller etc.
Technical parameters:
Memory code: 100 codes
Decode: EV1527 or HCS301
Monostable mode and biastable mode: You can choose mode you like when you learning code with remote control
Channel: 1.2.3.4 channel as your request
Receiver moule: Superheterodyne receiver moule
Output: +12V output. -12Voutput. Dry connect output
A. Feature
1. You can choose bistable (continuous ouput) or monostable( momentary output) directly when learning code with remote control.
2. The receiver is use-friend. We can produce them with different code remote control as your request .the receiver is widely used as motorcycle alarm receiver, electric vehicle alarm receiver, sliding gate receiver, auto gate receiver, sliding door receiver, rolling door receiver, ceiling fan receiver etc.
B. Function
LED
Green LED for power indication
Red LED for learning code indication
Learning code
S1 for learning button of Monostable
S2 for learning button of Bistable
Learning code with Monostable:
1st relay: Press S1 1 time, red LED light (about 1second) to flash 1 time to light ( receive the signal from remote control).
2nd relay: Press S1 1 time, red LED light (about 1second) to flash 2 times to light ( receive the signal from remote control).
3rd relay: Press S1 1 time, red LED light (about 1second) to flash 3 times to light ( receive the signal from remote control).
4th relay: Press S1 1 time, red LED light (about 1second) to flash 4 times to light ( receive the signal from remote control). Now keep the remote control and receiver close, press any button of the remote control, the red LED will off and relay close if have learnt the code from remote control successfully, if remote control not receive the signal in 5s, the red LED is off automatically which exit learning code mode
Learning code with Bistable:
1st relay: Press S2 1 time, red LED light (about 1second) to flash 1 time to light ( receive the signal from remote control).
2nd relay: Press S2 1 time, red LED light (about 1second) to flash 2 times to light ( receive the signal from remote control).
3rd relay: Press S2 1 time, red LED light (about 1second) to flash 3 times to light ( receive the signal from remote control).
4th relay: Press S2 1 time, red LED light (about 1second) to flash 4 times to light ( receive the signal from remote control). Now keep the remote control and receiver close, press any button of the remote control, the red LED will off and relay close if have learnt the code from remote control successfully, if remote control not receive the signal in 5s, the red LED is off automatically which exit learning code mode
(3): Remove code: Long press S1 or S2 for 5s, when the red LED flash then turn off, which means remove the code successfully
Note: If remove the code careless, the unit system can't resume it.
Shipment:by air, by sea, DHL, TNT etc.Guarantee:The quality problem from us, and we will bear the responsibility. we will make new order or solve the problem by negotiation.Company background:Our factory covers an area of approximately 2000 square meters, where for the past 10 years we have been manufacturing electronic products, mainly remote control, receiver, door opener system, motorcycle alarm and remote control duplicator etc. Our company professional R&D staff can meet your different request. We have advanced equipment for production, such as SMT, frequency machine, logo engraving machine laser etc| Model No. | JH-RX02-B |
| Decode | Learning code or rolling code |
| Frequency | 315MHZ, 433.92MHZ or customized |
| Modulation type | ASK |
| Distance | 80m work with our remote control |
| Tech. parameter | Terminal Blocks, relays |
| Sensitivity | -107dbm |
| Momery | 100 coeds |
| Channel | 1.2.34channels |
| Working voltage | AC12-24V//DC12-24V |
| Working current | 18ma± 2ma |
| Output | Dry connect output |
| Working mode | Bistable and monostable working mode optional |
| Learning way | Every channel learning code with remote control individually |
| Brand | JUHUI |
| Package | 50pcs/CTN |
| Lead time | 1-5 days for samples, 20-30 days for order |
| Place of origin | China |
| MOQ: | 300pcs |
| Supply ability | 100.000pcs/Month |
| Application | 1.motorcycle alarm remote controller
2.electric vehicle alarm remote controller,
3.sliding gate remote controller, auto gateremote controller, sliding door remote controller, rolling doorremote controller,
4.ceiling fanremote controller
5.access system
6.wherever remote controller needed |
Quanzhou Juhui Electronic Co., Ltd...Is a high-tech company that specializes in designing, manufacturing and selling Alarm system (motorcycle alarm system, electric vehicles), motorcycle power lock, wireless RF receiver (remote controller), RF Remote control ( keyfob and transmitter), RF module (wireless transmitter Module and Receiver Module), Remote Control Duplicator( face to face copying duplicator and machine copy duplicator),
Our alarm systems are widely used in every brand motorcycle and electric vehicles. There are many alarm models in different prices for your choices. Our high quality RF wireless remote control, remote control duplicator and receiver are widely used as advanced accessory in garage door, rolling door, sliding gate, motorcycle alarm etc.
Our company professional R&D staff can meet your different request. We provide different kinds of products with high quality and favorable price. We are still developing and designing new products according to market demand.
We stick to management principle: Quality first, service first, continuous improvement and innovation. Our quality objective is "zero defect, zero complaint". We hope to promote mutual benefit and build long term business with customers all over the world by joint efforts.
