| Prod Model: |
JH-RX01-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Decode: |
Work with Any Decode Remote Control |
| Frequency: |
315MHz/433.92MHz or Customized |
| Matched Remote Control: |
Optional |
| MOQ: |
200PCS |
| Lead Time: |
15-20 Days |
| Payment Term: |
30% in Advance, 70% Before Shipment |
| Trading Term: |
FOB or EXW |
| Supply Ability: |
100.000PCS |
| Mode: |
Bistable and Monostable Is Optional |
| Communications Mode: |
Ask |
| Signal Transmission: |
RF Remote Control |
| Application: |
Industrial Machinery |
| Type: |
Button |
Product Description
Product Description
OEM√ WARRANTY√ COMPENSATION√ FREE SAMPLE√
EXPORTING TO WORLD MARKET√ 5 YEARS√ OEM√
MANUFACTURE√ CUSTOMIZED√
Application:
1.motorcycle alarm remote control
2.electric vehicle alarm remote control
3.sliding gate remote control, auto gate remote control, sliding door remote control, rolling door remote control
4.ceiling fan remote control
5. access system remote control
6.wherever remote control needed

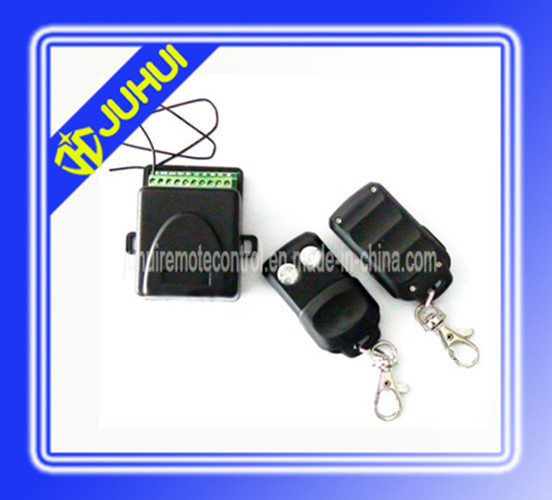

Information for Timer setting 2relays Receiver System (JH-RX01-B)
A. Feature
1. You can choose bistable (continuous ouput) or monostable( momentary output) directly when learning code with remote control.
2. The receiver is use-friendly. We can produce them with different code remote control as your request the receiver is widely used as motorcycle alarm receiver, electric vehicle alarm receiver, sliding gate receiver, auto gate receiver, sliding door receiver, rolling door receiver, ceiling fan receiver l etc
B. Technical parameters:
Momery code: 480 codes for 2 channels
Decode: All decodes
Monostable mode and biastable mode: You can choose the mode you like when you learning code with remote control
Channel: 1.2 channel as your request
Receiver moule: Superheterodyne receiver moule

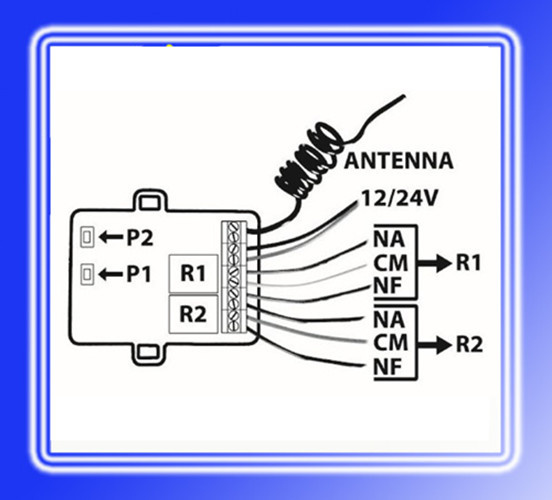

Output: +12V output. -12Voutput. Dry connect output
voltage: AC/DC12-24V
1. LEARNING CODE:
Press S1 (1S at least), LED will lights (1S) off( 1S) lights again, now press any button of the remote, receiver LED will go off if the code is learnt. Then release the button of the remote. If failed learn code with remote control. LED will light for 10s and exit learning status.
Each channel can learn 140 codes.
It supports all the codes including fixed code and rolling code
2. How change monostable/ bistable mode:
Press S1 1 time, LED flashes 1 time and the first channel (monostable) activates.
Press S1 2 times, LED flashes 2 times and the 2ND channel (monostable) activates.
Press S1 three times, LED flashes three times and the first channel (bistable) activates.
Press S1 four times, LED flashes four times and the 2ND channel (bistable) activates.
3. DELETING FUNCTION:
Delete one code: Press S2 for 1S and release, LED lights, press the button that you want to delete the code. Then it's ok.
Delete all the codes: Long press S2 for 8 Ss, LED lights, release your hand and LED goes off, now all the codes are deleted.
4. NOTICE:
Since the data of rolling code is relatively bigger, it'll take a little more time to operate remote with rolling code than that with fixed code.
If you learning same code for more than one time, only the last code is memorized.
COMPANY BACKGROUND:

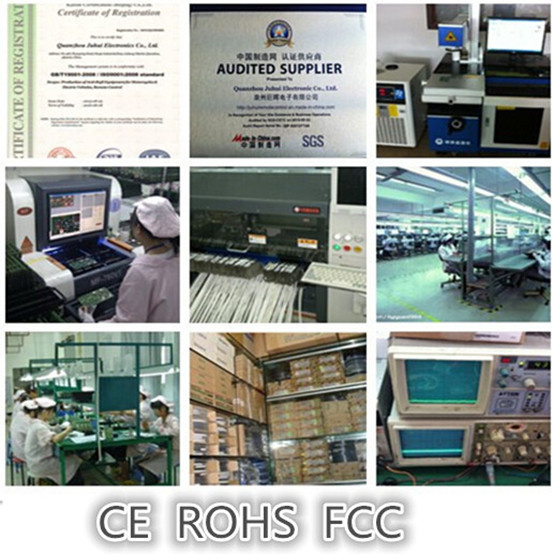

Our factory covers an area of approximately 2000 square meters, where for the past 10 years we have been manufacturing electronic products, mainly remote control, receiver, door opener system, motorcycle alarm and remote control duplicator etc. Our company professional R&D staff can meet your different request. We have advanced equipment for production, such as SMT, frequency machine, logo engraving machine laser etc| Model No. | JH-RX01-B |
| Decode | Work with any decode remote control |
| Frequency | 315MHZ, 433.92MHZ or customized |
| Modulation type | FSK/ASK |
| Distance | 80m work with our remote control |
| Tech. parameter | Terminal Blocks, relays |
| Memory | 120 codes |
| Channel | 2 channels |
| Working voltage | 12-24V |
| Working current | 10-60mA |
| Output | Dry connect output |
| Working mode | Bistable and monostable working mode is optional |
| Learning way | Every channel learning code with remote control individually |
| Brand | JUHUI |
| Package | 50pcs/CTN |
| Lead time | 1-5 days for samples, 20-30 days for order |
| Place of origin | China |
| MOQ: | 300pcs |
| Supply ability | 100.000pcs/Month |
| Application | 1.motorcycle alarm
2.electric vehicle alarm
3.sliding gate , auto gate , sliding door, rolling door,
4.ceiling fan
5. access system
6.wherever gate opener needed |
