| Prod Model: |
Low voltage transformer |
| Application: |
Electronic |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Henuo |
Product Description
1,SG(B)10 series control power transformer
Application
Model SG(B) new products are dry transformer with the highest safety in current market. All of insulating materials are of non-combustion supporting, self-extinguishing, nontoxic one. It shows advantages especially when used in those fields where high safety is required, humidity and temperature are high, and ventilation is poor, such as in power sites, underground railways, ships, chemical and metallurgical sites. Outer casing and blower fan cab be provided if required by users.
Working conditions
1.Ambient air temperature: -5°C~+40°C, the highest monthly mean temperature should not exceed +30°C;
2.Altitude for installing place should not exceed 2000m;
3.When the ambient air temperature is +40°C, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused by temperature change should be taken into consideration.
Main Technical Parameter
Type and capacity (kva) | Voltage | Unit | Loss | No-load current | Short Resist ance% |
HV(KV) | LV(KV) | No-load | load |
SG(B)10-125/10 | 11 10.5 10 6.6 6.3 3 | 0.4 | Dyn11 or Yyn0 | 480 | 2593 | 2.0 | 4 |
SG(B)10-160/10 | 560 | 3103 | 1.8 |
SG(B)10-200/10 | 656 | 3973 | 1.8 |
SG(B)10-250/10 | 760 | 4675 | 1.8 |
SG(B)10-315/10 | 880 | 5610 | 1.8 |
SG(B)10-400/10 | 1040 | 6630 | 1.8 |
SG(B)10-500/10 | 1200 | 7947 | 1.8 |
SG(B)10-630/10 | 1400 | 9265 | 1.7 |
SG(B)10-630/10 | 1344 | 9775 | 1.6 | 6 |
SG(B)10-800/10 | 1696 | 11560 | 1.6 |
SG(B)10-1000/10 | 1984 | 13345 | 1.3 |
SG(B)10-1250/10 | 2384 | 15640 | 1.3 |
SG(B)10-1600/10 | 2736 | 18105 | 1.3 |
SG(B)10-2000/10 | 3320 | 21250 | 1.2 |
SG(B)10-2500/10 | 4000 | 24735 | 1.2 |
1,JDZ(10)-3,6,10 cast insulated semi-hermetic voltage measuring transformer
Application
The voltage transformer is single phase non-earthed and epoxy resin insulated. It designed for voltage power measurement and relay protection in a rated frequency AC 50Hz power system. For series JDZ transformer type JDZ-3, JDZ-6 and JDZ-10 are available.
JDZ(10)-3,6,10 cast insulated semi-hermetic voltage measuring transformer conforms to the IEC60044-2 and GB1207-2006 standard.
Main Technical Parameter
1. Voltage transformer 2. Rated voltage class: 10kV 3. PT type: JDZ-3,6,10;JDZJ-3,6,10
4. Single phase, semi-hermetic type structure, with residual voltage, epoxy resin casting type
5. Rated transformation ration (kV):See the following drawing
6. Accuracy classes combination: See the following drawing
7. This type has different kind of technical data, if you want to order this type product; we hope you can inquire us for your detailed technical requirement before ordering.
Model | Voltage (V) | Rated frequency (Hz) | Rated output (VA) | Max output (VA) | Rated insulation (KV) |
0.2 | 0.5 | 1 | 6P |
JDZ10-3A | 3000/100 | 50.60 | 15 | 30 | 60 | | 150 | 3.6/25/40 |
JDZ10-6 | 6000/100 | 15 | 30 | 60 | | 150 | 7.2/30/60 |
JDZ10-10A | 10000/100 | 15 | 30 | 60 | | 150 | 12/42/75 |
Overall and Installation Dimension
1, QBZ series Control Power Transformer
Application
It is applied to three-phase squirrel-cage inductive motor of AC 50Hz with rated voltage of 380V, to start the motor with reduced voltage in infrequent operation condition. It reduces the voltage through the transformer in order to reduce the starting current of the motor and the negative impact on the power transmission network.
Working conditions
1.Ambient air temperature: -5°C~+40°C, the highest monthly mean temperature should not exceed +30°C;
2.Altitude for installing place should not exceed 2000m;
3.When the ambient air temperature is +40°C, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused by temperature change should be taken into consideration.
Main Technical Parameter
Model | Control motor power (kw) | Max operation current (A) |
QZB-14 | 14 | 280 |
QZB-20 | 20 | 40 |
QZB-28 | 28 | 56 |
QZB-30 | 30 | 59 |
QZB-40 | 40 | 80 |
QZB-55 | 55 | 110 |
QZB-75 | 75 | 142 |
QZB-135 | 135 | 270 |
QZB-190 | 190 | 370 |
QZB-225 | 225 | 410 |
QZB-260 | 260 | 475 |
QZB-300 | 300 | 535 |
Overall and Installation Dimension
Model | Power(kW) | Overall dimension(mm) | Installation dimension(mm) | Mounting hole(mm)K×J |
A±5 | B±5 | H±5 | E±5 | F±2.5 |
QZB-14 | 14 | 300 | 200 | 295 | 220 | 95 | 10×18 |
QZB-17 | 17 |
QZB-22 | 22 |
QZB-30 | 30 | 300 | 210 | 295 | 220 | 105 | 10×18 |
QZB-40 | 40 | 345 | 215 | 320 | 280 | 110 | 10×18 |
QZB-45 | 45 |
QZB-55 | 55 | 345 | 225 | 320 | 280 | 120 | 10×18 |
QZB-75 | 75 | 360 | 240 | 345 | 280 | 130 | 10×18 |
QZB-100 | 100 | 390 | 310 | 370 | 310 | 145 | 10×18 |
QZB-115 | 115 |
QZB-135 | 135 | 450 | 320 | 410 | 310 | 140 | 10×18 |
QZB-155 | 155 |
QZB-190 | 190 | 480 | 340 | 430 | 310 | 145 | 10×18 |
QZB-225 | 225 | 580 | 340 | 450 | 310 | 160 | 10×18 |
QZB-260 | 260 | 580 | 350 | 450 | 310 | 170 | 10×18 |
QZB-280 | 280 |
QZB-300 | 300 | 600 | 350 | 480 | 310 | 170 | 10×18 |
QZB-315 | 315 |
QZB-350 | 350 | 600 | 360 | 500 | 310 | 180 | 10×18 |
QZB-400 | 400 |
QZB-450 | 450 | 670 | 380 | 600 | 400 | 190 | 10×18 |
QZB-500 | 500 |

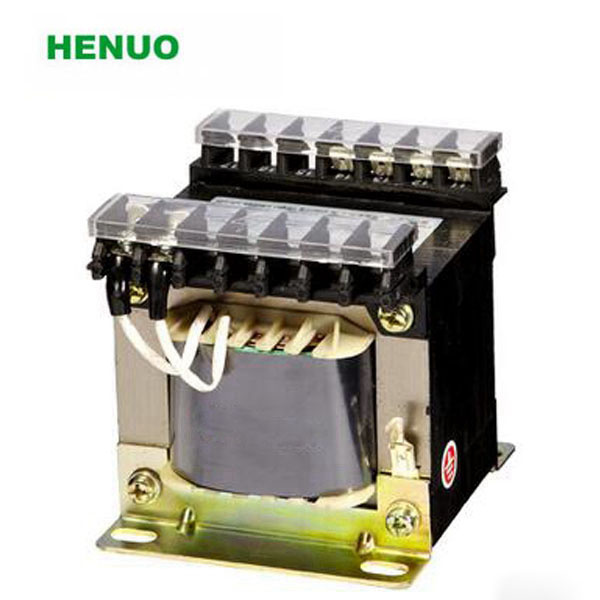

1, JBK series Industrial Control Low voltage Transformer
Product Description
JBK series 220V Industrial Control Low voltage transformer comprehensive used in AC 50-60HZ, where Input, output voltage not over than 1000V. The JBK 220V Industrial is commonly used in machine tool working as local lighting, power of indicator light or the machine control electric appliance.
Feature:
1.Phase: Single Phase
2.Voltage: 220V
3.Current:40A,63A,160A,250A,400A,500A,630A,800A,1000A,1600A,2500A
Model and Meaning
Working conditions
1.Ambient air temperature: -5°C~+40°C, the highest monthly mean temperature should not exceed +30°C;
2.Altitude for installing place should not exceed 2000m;
3.When the ambient air temperature is +40°C, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused by temperature change should be taken into consideration.
Technical Data
Type | Rated capacity(VA) | Rated input voltage(V) | Rated output voltage(V) |
Control | Illumination | Indication |
JBK3-40 | 40 | 220±5% 380±5% | 110(127) | 24(36) | 6(12) |
JBK3-63 | 63 |
JBK3-100 | 100 |
JBK3-160 | 160 |
JBK3-250 | 250 |
JBK3-400 | 400 |
JBK3-630 | 630 |
JBK3-1000 | 1000 | Distribution of capacity for different winding may according to the user's request. |
JBK3-1600 | 1600 |
JBK3-2500 | 2500 |

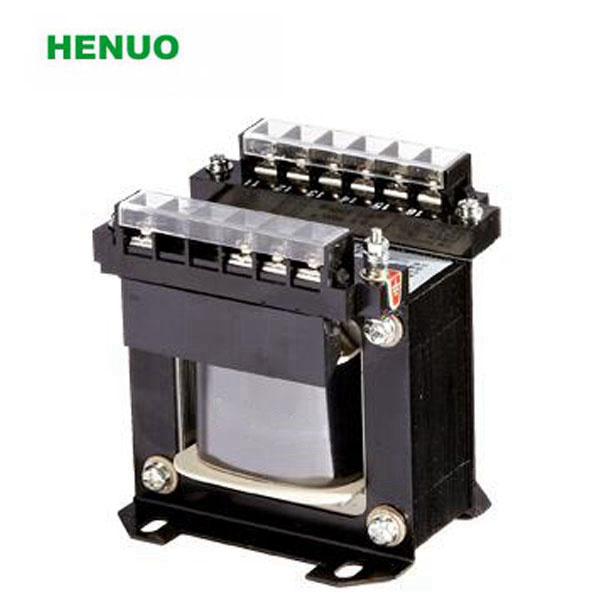

2, BK series transformer
Product Description
BK series 12v to 220v transformer comprehensive used in AC 50-60HZ, where input, output voltage not over than 660V. BK series 12v to 220v transformer is commonly used in machine tool working as local lighting, power of indicator light or the machine control electric appliance.
Technical Data:
Capacity (VA) | Primary voltage (v) | Second voltage(v) | BK series | JMB series |
overall dimension (max) B x D x H(mm) | Installation dimension A x C(mm)(±1.5) | Installation hole size | Overall dimension(max) B x D x H(mm) |
25 | 220 380 | 6 12 24 36 110 127 220 380 | 82x72x93 | 56x72 | 5x9 | 152x162x126 |
50 | 82x72x93 | 56x72 | 5x9 | 152x162x126 |
100 | 86x86x100 | 51x61 | 5x9 | 152x162x126 |
150 | 103x97x112 | 76x70 | 5x9 | 162x180x137 |
200 | 105x108x112 | 76x78 | 5x9 | 162x180x137 |
250 | 127x100x135 | 90x76 | 6x10 | 182x220x157 |
300 | 127x105x135 | 90x82 | 6x10 | 182x220x157 |
400 | 154x122x153 | 110x76 | 6x10 | 207x237x177 |
500 | 154x134x153 | 110x86 | 6x10 | 207x237x177 |
700 | 154x156x164 | 110x107 | 6.5x10 | 220x294x187 |
1000 | | 154x156x164 | 110x107 | 6.5x10 | 220x294x187 |
1500 | 195x200x240 | 130x108 | 9x25 | 262x340x227 |
2000 | 195x220x240 | 1320x128 | 9x25 | 262x340x227 |
2500 | 195x260x240 | 130x158 | 9x25 | 262x370x242 |
3000 | 295x260x240 | 130x158 | 9x25 | 262x370x242 |
4000 | 350x250x345 | 210x134 | 11x20 | 386x312x414 |
5000 | 305x250x345 | 210x134 | 11x20 | 386x312x414 |
Working condition:
1. Ambient air temperature: -5 degree ~+45 degree, the highest monthly mean temperature should not exceed +30°C;
2. Altitude for installing place should not exceed 2000m;
3. When the ambient air temperature is +40°C, the relative humidity should not exceed
50% and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused by temperature change should be taken into consideration.

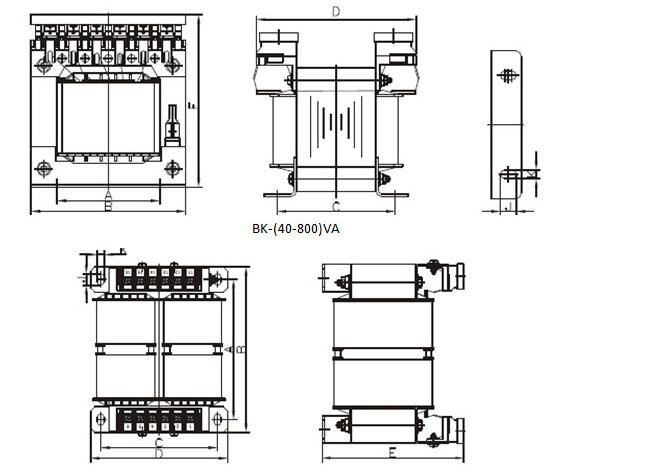

Overall and Installation Dimension
Product Show
