| Prod Model: |
YD Y2D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
Special Voltages Available |
| Application: |
Universal |
| Operating Speed: |
Adjust Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Species: |
Yd Double Speed |
| Certification: |
Ce |
Product Description

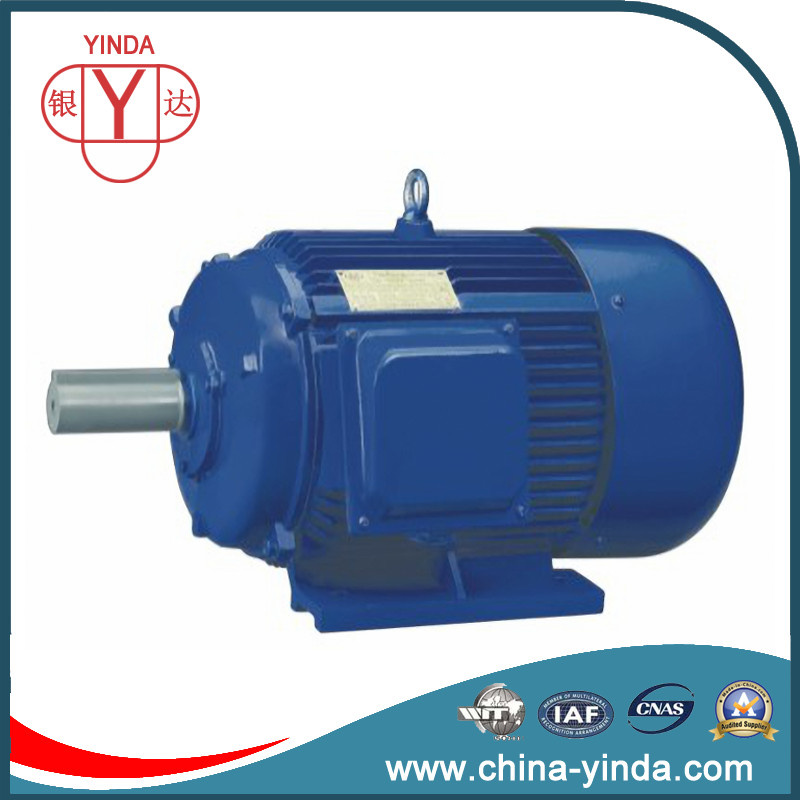

YD series (IP44) Double-speed Motor, three-phase Induction MotorStandard features:Cast iron Frame: 80-280
Mounting type: B3 B5 B35
Squirrel cage . rotor/Aluminium die cast
Continous duty: S1
Protection grade: IP55
Insulation class: F
Voltage: 380V and others
Optical features:Aluminium frame 80-132M
Mounting type: B5/B14/B3/B34
Special voltages
Insulation class: F
Applications:Fans, pumps, pulleys, cranes,
Conveyor belts, mills, grinders,
Crushers, drilling machinery, blowers, compressors,
Food processing machines etc.
Advantage:1. Wide range of adjustable speed
2. High efficiency
3. Energy-saving
4. Low noise
5. Little vibration
6. Safe operation
7. Easy maintenance
Technical Data: | Type | Power | Voltage | Current | Speed | Efficiency | Power factor | lst/le | Tst/Te | Nosie |
| | Kw | V | A | r/min | % | Cos Φ | Lw dB(A) |
| YD80M1--4/2 | 0.45/0.55 | 380 | 1.4/1.5 | 1400/2750 | 66/65 | 0.74/0.85 | 6.5/7 | 1.5/1.7 | 79 |
| YD80M2--4/2 | 0.55/0.75 | 380 | 1.7/2.0 | 1400/2750 | 68/66 | 0.74/0.85 | 6.5/7 | 1.6/1.8 | 79 |
| YD90S--4/2 | 0.85/1.1 | 380 | 2.3/2.8 | 1410/2830 | 74/71 | 0.77/0.85 | 6.5/7 | 1.8/1.9 | 79 |
| YD90L--4/2 | 1.3/1.8 | 380 | 3.3/4.4 | 1410/2830 | 76/73 | 0.78/0.85 | 6.5/7 | 1.8/2.0 | 83 |
| YD100L1--4/2 | 2/2.4 | 380 | 4.8/5.6 | 1430/2850 | 78/76 | 0.81/0.86 | 6.5/7 | 1.7/1.9 | 87 |
| YD100L2--4/2 | 2.4/3 | 380 | 5.6/6.7 | 1430/2850 | 79/77 | 0.83/0.89 | 6.5/7 | 1.6/1.7 | 87 |
| YD112M--4/2 | 3.3/4 | 380 | 7.4/8.6 | 1445/2890 | 82/89 | 0.83/0.89 | 6.5/7 | 1.9/2.0 | 87 |
| YD132S--4/2 | 4.5/5.5 | 380 | 9.8/11.9 | 1450/2855 | 83/79 | 0.84/0.89 | 6.5/7 | 1.7/1.8 | 91 |
| YD132M--4/2 | 6.5/8 | 380 | 13.8/17.1 | 1450/2880 | 84/80 | 0.85/0.89 | 6.5/7 | 1.7/1.8 | 91 |
| YD160M--4/2 | 9/11 | 380 | 18.5/22.9 | 1460/2920 | 87/82 | 0.85/0.89 | 6.5/7 | 1.6/1.8 | 95 |
| YD160L--4/2 | 11/14 | 380 | 22.3/28.8 | 1455/2920 | 87/82 | 0.86/0.90 | 6.5/7 | 1.7/1.9 | 95 |
| YD180M--4/2 | 15/18.5 | 380 | 29.4/36.7 | 1470/2945 | 89/85 | 0.87/0.90 | 6.5/7 | 1.8/1.9 | 95 |
| YD180L--4/2 | 18.5/22 | 380 | 35.9/42.7 | 1465/2945 | 89/86 | 0.88/0.91 | 6.5/7 | 1.6/1.8 | 95 |
| YD200L--4/2 | 26/30 | 380 | 49.9/58.3 | 1470/2945 | 89/85 | 0.89/0.92 | 6.5/7 | 1.4/1.6 | 98 |
| YD225S--4/2 | 32/37 | 380 | 60.7/71.1 | 1480/2960 | 90/86 | 0.89/0.92 | 6.5/7 | 1.4/1.6 | 98 |
| YD225M--4/2 | 37/45 | 380 | 69.4/86.4 | 1480/2960 | 91/86 | 0.89/0.92 | 6.5/7 | 1.6/1.6 | 100 |
| YD250M--4/2 | 45/52 | 380 | 84.4/98.7 | 1480/2960 | 91/87 | 0.89/0.92 | 6.5/7 | 1.6/1.6 | 100 |
| YD280S--4/2 | 60/72 | 380 | 111.3/135.1 | 1485/2970 | 91/88 | 0.90/0.92 | 6.5/7 | 1.4/1.5 | 102 |
| YD280M--4/2 | 72/82 | 380 | 133.6/152.2 | 1485/2970 | 91/88 | 0.90/0.93 | 6.5/7 | 1.4/1.5 | 102 |
| YD90S--6/4 | 0.65/0.85 | 380 | 2.3/2.3 | 920/1410 | 64/70 | 0.68/0.79 | 6/6.5 | 1.6/1.4 | 75 |
| YD90L--6/4 | 0.85/1.1 | 380 | 2.8/3.0 | 930/1410 | 66/71 | 0.7/0.79 | 6/6.5 | 1.6/1.5 | 75 |
| YD100L1--6/4 | 1.3/1.8 | 380 | 3.8/4.4 | 940/1440 | 74/77 | 0.70/0.80 | 6/6.5 | 1.7/1.4 | 78 |
| YD100L2--6/4 | 1.5/2.2 | 380 | 4.3/5.4 | 940/1440 | 75/77 | 0.70/0.80 | 6/6.5 | 1.6/1.4 | 78 |
| YD112M--6/4 | 2.2/2.8 | 380 | 5.7/6.7 | 950/1430 | 78/77 | 0.75/0.82 | 6/6.5 | 1.8/1.5 | 82 |
| YD132S--6/4 | 3/4 | 380 | 7.7/9.5 | 970/1440 | 79/78 | 0.75/0.82 | 6/6.5 | 1.8/1.7 | 82 |
| YD132M--6/4 | 4/4.5 | 380 | 9.8/12.3 | 970/1450 | 82/80 | 0.76/0.85 | 6/6.5 | 1.6/1.4 | 82 |
| YD160M--6/4 | 6.5/8 | 380 | 15.1/17.6 | 970/1455 | 84/82 | 0.78/0.84 | 6/6.5 | 1.5/1.5 | 86 |
| YD160L--6/4 | 9/11 | 380 | 20.6/23.7 | 970/1460 | 85/83 | 0.78/0.85 | 6/6.5 | 1.6/1.7 | 86 |
| YD180M--6/4 | 11/14 | 380 | 25.9/29.8 | 970/1465 | 85/84 | 0.76/0.85 | 6/6.5 | 1.6/1.7 | 90 |
| YD180L--6/4 | 13/16 | 380 | 29.4/33.6 | 970/1465 | 86/85 | 0.78/0.85 | 6/6.5 | 1.7/1.7 | 90 |
| YD200L--6/4 | 18.5/22 | 380 | 41.4/44.9 | 975/1460 | 87/86.5 | 0.78/0.86 | 6.5/7 | 1.6/1.5 | 90 |
| YD225S--6/4 | 22/28 | 380 | 44.2/57.2 | 980/1470 | 88/86.5 | 0.86/0.87 | 6.5/7 | 1.8/1.8 | 92 |
| YD225M--6/4 | 26/32 | 380 | 53.4/65.4 | 980/1470 | 88/85.5 | 0.86/0.9 | 6.5/7 | 1.5/1.3 | 92 |
| YD250M--6/4 | 32/42 | 380 | 62.1/81.1 | 980/1470 | 90/86.5 | 0.87/0.91 | 6.5/7 | 1.5/1.3 | 98 |
| YD280S--6/4 | 42/55 | 380 | 81.5/106.7 | 985/1480 | 90/87 | 0.87/0.9 | 6.5/7 | 1.5/1.3 | 98 |
| YD280M--6/4 | 55/67 | 380 | 106.7/131.5 | 985/1480 | 90/87 | 0.87/0.89 | 6.5/7 | 1.6/1.3 | 98 |
| YD90L--8/4 | 0.45/0.75 | 380 | 1.9/1.8 | 670/1400 | 58/72 | 0.63/0.87 | 5.5/6.5 | 1.6/1.4 | 75 |
| YD100L--8/4 | 0.85/1.5 | 380 | 3.1/3.5 | 750/1514 | 67/74 | 0.63/0.88 | 5.5/6.5 | 1.6/1.4 | 78 |
| YD112M--8/4 | 1.5/2.4 | 380 | 5.0/5.3 | 710/1430 | 72/78 | 0.63/0.88 | 5.5/6.5 | 1.7/1.7 | 82 |
| YD132S--8/4 | 2.2/3.3 | 380 | 7.0/7.1 | 720/1445 | 75/80 | 0.64/0.88 | 5.5/6.5 | 1.5/1.7 | 82 |
| YD132M--8/4 | 3/4.5 | 380 | 9.0/9.4 | 720/1450 | 78/82 | 0.65/0.89 | 5.5/6.5 | 1.5/1.6 | 82 |
| YD160M--8/4 | 5/7.5 | 380 | 13.9/15.2 | 730/1450 | 83/84 | 0.66/0.89 | 5.5/6.5 | 1.5/1.6 | 86 |
| YD160L--8/4 | 7/11 | 380 | 19.0/21.8 | 730/1450 | 85/86 | 0.66/0.89 | 5.5/6.5 | 1.5/1.6 | 86 |
| YD180L--8/4 | 11/17 | 380 | 26.7/32.3 | 730/1470 | 87/88 | 0.72/0.91 | 6/7 | 1.5/1.6 | 90 |
| YD200L1--8/4 | 14/22 | 380 | 33/41.3 | 735/1470 | 87/88 | 0.74/0.92 | 6/7 | 1.8/1.7 | 90 |
| YD200L2--8/4 | 17/26 | 380 | 40.1/48.8 | 735/1470 | 87/88 | 0.74/0.92 | 6/7 | 1.5/1.7 | 92 |
| YD225M--8/4 | 23/34 | 380 | 53.2/66.7 | 735/1470 | 89/88 | 0.77/0.88 | 6/7 | 1.5/1.5 | 92 |
| YD250M--8/4 | 30/42 | 380 | 64.9/78.8 | 740/1480 | 90/89 | 0.78/0.91 | 6/7 | 1.6/1.7 | 94 |
| YD280S-8/4 | 40/55 | 380 | 83.5/102 | 740/1485 | 91/90 | 0.80/0.91 | 6/7 | 1.6/1.7 | 98 |
| YD280M--8/4 | 47/67 | 380 | 96.9/122.9 | 740/1485 | 91/90 | 0.81/0.92 | 6/7 | 1.6/1.7 | 98 |
| YD90S--8/6 | 0.35/0.45 | 380 | 1.6/1.4 | 675/930 | 56/70 | 0.60/0.72 | 5/6 | 1.8/2 | 73 |
| YD90L--8/6 | 0.45/0.65 | 380 | 1.9/1.9 | 680/920 | 59/71 | 0.60/0.73 | 5/6 | 1.7/1.8 | 73 |
| YD100L--8/6 | 0.75/1.1 | 380 | 2.9/3.1 | 710/945 | 65/75 | 0.60/0.73 | 5/6 | 1.8/1.9 | 73 |
| YD112M--8/6 | 1.3/1.8 | 380 | 4.5/4.8 | 710/945 | 72/78 | 0.61/0.73 | 5/6 | 1.7/1.9 | 75 |
| YD132S--8/6 | 1.8/2.4 | 380 | 5.8/6.2 | 725//970 | 76/80 | 0.62/0.73 | 5/6 | 1.6/1.9 | 79 |
| YD132M--8/6 | 2.6/3.7 | 380 | 8.2/9.4 | 725/970 | 78/82 | 0.62/0.73 | 5/6 | 1.9/1.9 | 79 |
| YD160M--8/6 | 4.5/6 | 380 | 13.3/14.7 | 730/975 | 83/85 | 0.62/0.73 | 5/6 | 1.6/1.9 | 83 |
| YD160L--8/6 | 40702 | 380 | 17.5/19.4 | 730/980 | 84/86 | 0.62/0.73 | 5/6 | 1.6/1.9 | 83 |
| YD180M--8/6 | 7.5/10 | 380 | 21.9/24.2 | 730/980 | 84/86 | 0.62/0.73 | 5/6 | 1.9/1.9 | 83 |
| YD180L--8/6 | 9/12 | 380 | 24.7/28.3 | 730/980 | 85/86 | 0.65/0.75 | 5/6 | 1.8/1.8 | 86 |
| YD200L1--8/6 | 12/17 | 380 | 32.6/39.1 | 735/980 | 86/87 | 0.65/0.76 | 5/6 | 1.8/2 | 88 |
| YD200L2--8/6 | 15/20 | 380 | 40.3/45.4 | 735/980 | 87/88 | 0.65/0.76 | 5/6 | 1.8/2 | 88 |
| YD160M--12/6 | 2.6/5 | 380 | 11.6/11.9 | 480/975 | 74/84 | 0.46/0.76 | 4/6 | 1.2/1.4 | 79 |
| YD160L--12/6 | 3.7/7 | 380 | 16.1/15.8 | 480/975 | 76/85 | 0.46/0.79 | 4/6 | 1.2/1.4 | 83 |
| YD180L--12/6 | 5.5/10 | 380 | 19.6/20.5 | 485/975 | 79/86 | 0.54/0.86 | 4/6 | 1.3/1.3 | 83 |
| YD200L1-12/6 | 7.5/13 | 380 | 24.5/26.4 | 485/975 | 83/87 | 0.56/0.86 | 4/6 | 1.5/1.5 | 86 |
| YD200L2--12/6 | 9/15 | 380 | 28.9/30.1 | 485/975 | 83/87 | 0.57/0.87 | 4/6 | 1.5/1.5 | 86 |
| YD225M--12/6 | 12/20 | 380 | 35.2/39.7 | 490/980 | 85/88 | 0.61/0.87 | 4/6 | 1.5/1.5 | 86 |
| YD250M--12/6 | 15/24 | 380 | 42.1/47.1 | 490/985 | 86/89 | 0.63/0.87 | 4/6 | 1.5/1.5 | 89 |
| YD280S--12/6 | 20/30 | 380 | 54.8/58.9 | 490/990 | 88/89 | 0.63/0.87 | 4/6 | 1.5/1.5 | 89 |
| YD280M--12/6 | 24/37 | 380 | 63.7/72.6 | 490/990 | 88/89 | 0.65/0.87 | 4/6 | 1.5/1.5 | 89 |
