| Prod Model: |
32mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE and ISO |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
| Application: |
Extend The Steel |
| Classification: |
Building Materials |
| Interface Type: |
Mechanical Connection |
| Medium Pressure: |
High Tensile Strength |
| Brand: |
Jbcz Manufactured |
Product Description
Product Description

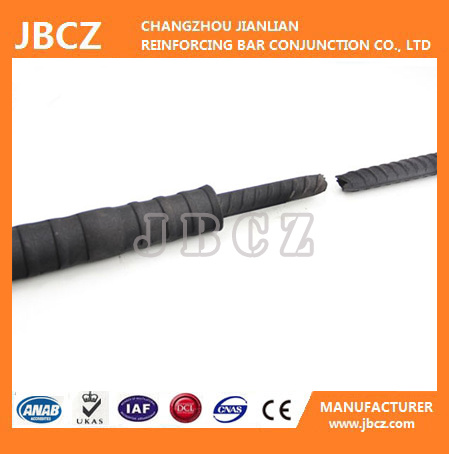

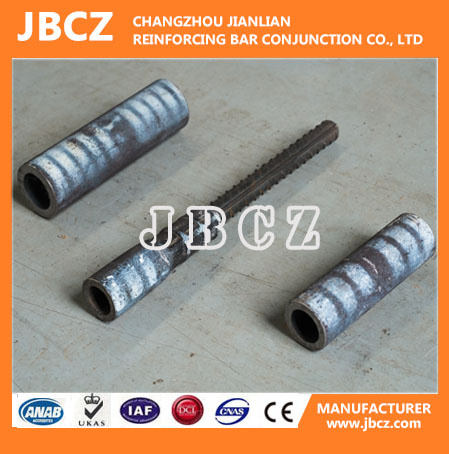

Specifications of Lenton Standard Rebar Mechanical Connector / Rebar Couplers
| The Parameter for Standard Coupler (MM) |
| Steel bar Diameter(MM) | Out Dia.of Coupler(MM) | Length of Coupler(MM) |
| 16 | 30 | 130 |
| 18 | 34 | 130 |
| 20 | 36 | 150 |
| 22 | 40 | 132 |
| 25 | 45 | 150 |
| 28 | 50 | 168 |
| 32 | 56 | 192 |
| 36 | 63 | 216 |
| 40 | 70 | 240 |
The parameter is customizable.
This type of rebar mechanical connectors are used to link two rebar together without threading. It can be used when one rebar is fixed and can not move.
This coupler is widely used in bridge projects.
| Description | 1.This type of rebar coupler match wuth rebar processed by cold extrusion press machine.
2. Reliable quality, the raw material origin and production batch can be traced.
3. Full implemention according to ISO9001:2000 quality management system.
4. Can link rebar of diameter from 16 mm to 40mm.
5. The tensile strength of splicing is equal to the rebar. |
| Advantages | 1. The tensile strength of rebar splicing is very strong. It can meet standards at home and abroad such as: Chinese standard(JGJ107), American standard(UBC1997), British standard(BSB110), French standard(NF25-20-1), German standard(DIN1045) and ISO/WD15835(draft);
2. Handy operation, no skilled operator needed;
3. Small need of impetus, not affected by the electric power supply in the site;
4. Environmental protection, no need to operate with open flames, not affected by weather |
Application:

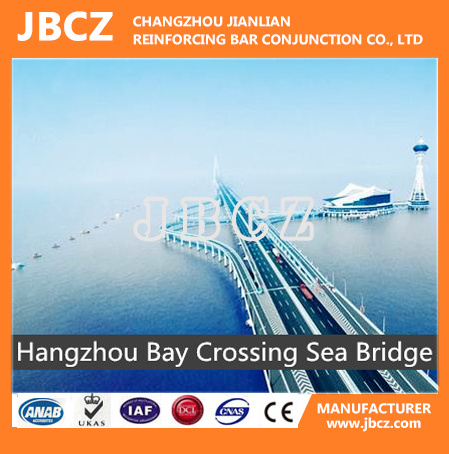

| Transportation Projects | Hangzhou Bay Crossing Sea Bridge; Jiangyin Yangzi River Bridge; Jiangsu Runyang Bridge; Nanjing Xuanwu Lake Tunnel |
| Building Projects | International Exhibition Center in Jinan; Suzhou Gymnasium; Sichuan Chengdu TV Tower |
| Energy Projects | Qinshan Nuclear Power Plant; Gazi-Barotha Hydropower Station in Pakistan |
This rebar coupler is packed in gunny bags.
FAQs:
1. Are you a trading company or a factory? Do you have property ownership certificate of your company?
We are a factory that professionally manufacturing rebar connection machines and rebar couplers for 29 years. We have property ownership certificate of our factory.
2. Where is your factory? Is it free to visit?
Our factory is in Hengshanqiao Town, Wujin District, Changzhou City, Jiangsu Province, China. It's our pleasure to invite you to our factory. You can come anytime when we are at work.
3. What is the tensile strength and yield point of your couplers?
The tensile strength and yield point of couplers are different, according to their different raw materials, connection ways, thickness, length and other factors. Take our standard upset forging parallel thread coupler as example, the tensile strength can be 620~680MPa and the yield point can be 420~450MPa.
If you want to know more about our products, please feel free to contact me.
Located in Heng Shan Qiao crossing of Shanghai-Nanjing Highway, Changzhou City, Jiangsu Province, China. JBCZ company was established in 1987, is a professional developer and manufacturer of rebar mechanical splice products, contains rebar processing machines and rebar couplers. We have four systems of machine:
1. Upset forging parallel thread machine and coupler
2. Rib peeling roll stamping machine and coupler
3. Cold extrusion press machine and coupler
4. Taper thread machine and coupler
The company has coupler streamline production workshop, mechanical precision production workshop, and equipped with engineering department in home and technical department which are responsible for the corresponding service for overseas. Company has an annual production capacity of 6 million 12-40mm reinforcing steel bar upset forging straight screw thread connection adapter sleeves, and more than 500 sets of machinery, which could well meet the requirements of major and key construction projects of home and overseas. The company has a perfect quantity, management and control system. We are strict to buy the raw materials, produce products and test the products. Our products and technology Have past GB/T19001-2000idt, ISO9001: 2000international quality management system and CE certification.
Our company supplies not only the products, but also good service. Our aim is to meet different clients' Requirments, and help clients to solve steel bar link problems in the project.
With more than 20 years development, we have ISO9001 certificate and CE certificate, Patent certificate for Upset forging parallel thread machine, the products were exported to five continents.
Our products have been used in following countries: United Arab Emirates, Ukraine, Poland, Sudan, Pakistan, Malaysia, Vietnam, Brazil, South Korea, Thailand, Iran, India, Mexico, New Zealand, Colombia, Ethiopia and Philippines etc.
We are looking forward to great cooperation with oversea customers based on mutual benefits. Please feel free to contact us for more details if you are interested in us.
