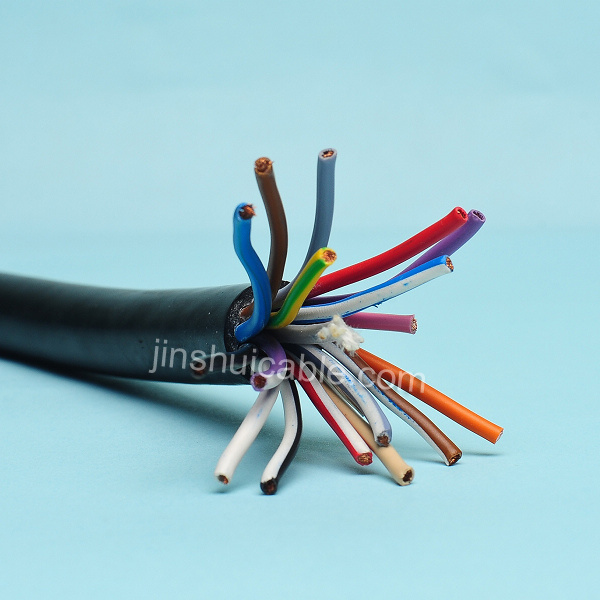

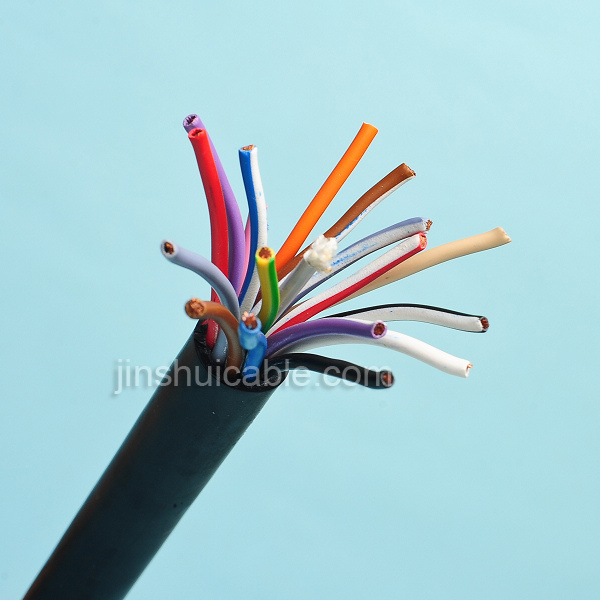

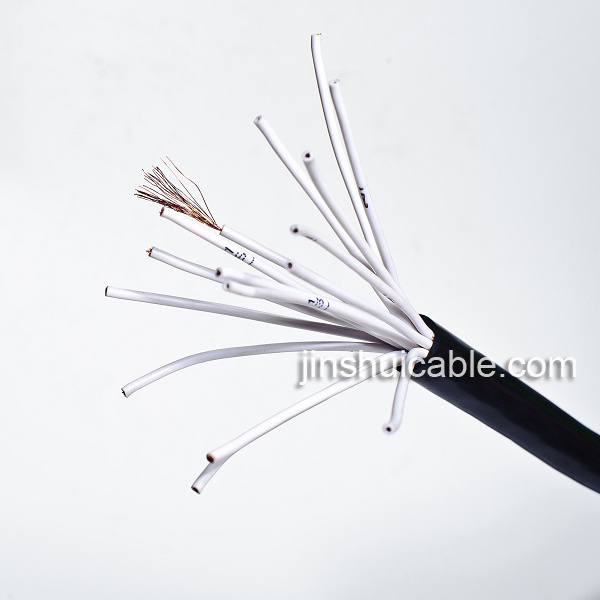

450/750V Copper Conductor PVC Insulated Control Cable

450/750V Copper Conductor PVC Insulated Control Cable
Price: Negotiable/Meter
Trade Terms: FOB
Min Order: 10000/Meter
Pay Type: T/T
Prod Model: KVV
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Black
Conductor: Copper or CCA
Packing: 100meters
Outer Packing: Cartons
Type: Insulated
Conductor Type: Stranded
Application: Heating
Conductor Material: Copper
Insulation Material: PVC
Certification: RoHS
Range Of Application: Control

Product Description

1. Standard
The control cable can be produced according to the standard GB9330-1988, and the factory can also manufacture the cables in accordance with other standards.
2. Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instrument, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3. Type& Specification
See the following table
4. Service Conditions
(1)The long-time working temperature of conductor of PVC insulated cable is 70oC
The long-time working temperature of conductor of XLPE insulated cable is 90oC
(1) The temperature for laying the cables can not be lower than 0oC. Permissible bending radius(r): Unarmoured cable: R≥ 6D; (D: Outer diameter of the cable); Armoured or copper-tape screened cable: R≥ 12D; Shielded flexible cable: R≥ 6D

Type


Name


Section Area(mm2)


No. of Core


Application Site


KVV


Copper Conductor,PVC Insulated and Sheathed Control Cable


0.75 1.0 1.5 2.5


2-16


Permanent installation indoors,in cable ditches or pipes


4 6


2-14


10


2-10


KVVP


Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded  Control Cable


0.75 1.0 1.5 2.5


2-61


Permanent installation indoors,in cable ditches or pipes where shielding is required


4 6


2-14


10


2-10


KVVP2


Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable


0.75 1.0 1.5 2.5


4-10


Permanent installation indoors,in cable ditches or pipes where shielding is required


4 6


7-61


10


4-10


KVV22


Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable


0.75 1.0 1.5 2.5


7-61


Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force


4 6


4-14


10


4-14


KVVR


Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable


0.5-2.5


4-61


Installation indoors where flexibility and movability are required


KVVRP


Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable


0.5 0.75 1.0


4-61


Installation indoors where flexibility shielding and movability are required


1.5 2.5


4-48


KYJV


Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable


0.75 1.0 1.5 2.5


2-16


Permanent installation indoors,in cable ditches or pipes


4 6


2-14


10


2-10


KYJVP


Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable


0.75 1.0 1.5 2.5


2-61


Permanent installation indoors,in cable ditches or pipes where shielding is required


4 6


2-14


10


2-10




KYJV22


Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable


0.75 1.0 1.5 2.5


7-61


Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force


4 6


4-14


10


4-10


KYJVP2


Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable


0.75 1.0 1.5 2.5


7-61


Permanent installation indoors,in cable ditches or pipes where shielding is required


4 6


4-14


10


4-10


KYJVR


Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable


0.5-2.5


4-61


Installation indoors where flexibility and movability are required


KYJVRP


Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable


0.5 0.75 1.0


4-61











1.5 2.5


4-48


Installation indoors where flexibility shielding and movability
