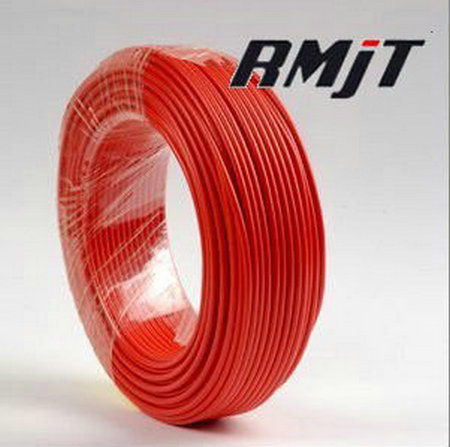

450/750V PVC Insulated Wire-Building Wire, Housing Wire with CCC Certificate, Ce Certificate
| Price: |
US $ 0.1-1000/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
Model: H07V-R H07V-U, H05V-R H05V-U |
| Code Name: |
PVC Insulated Wire |
| Customized: |
Yes |
| Strandard: |
227 IEC 01/05, Equivalent to VDE 0281 BS6004, |
| Voltage: |
450/750 |
| Usage: |
Electric Transimision |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Application: |
Building |
Product Description

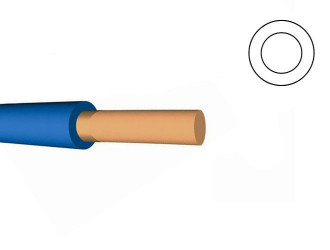

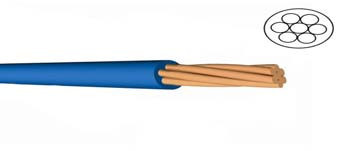

PVC Insulated Wire Model: H07V-R H07V-U, H05V-R ,H05V-U Standards:227 IEC 01/05, equivalent to VDE 0281 BS6004Conductor: bare solid/stranded copper--class 1 or class 2 IEC228Insulation: PVCVoltage rating: 450/750V for above 1.5mm 2 , 300/500V for below 1mm 2Temperature range: 0 ºC to 70ºC;Main colors: black-blue-red-green/yellow-brown-grey-orange-violet-white-dark blueMinimum bending radius:Up to 10mm² , 3 x overall dia.;10mm² to 25mm², 4 x overall dia.; Above 25mm², 5 x overall dia.Application: suitable for use in conduit and for fixed, protected installationRemark: the cable can be of Low smoke free halogen, flame retardant and other property

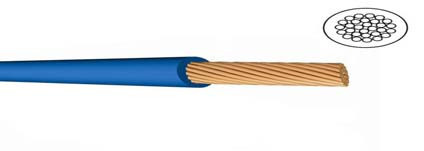

Model: H07V-K H05V-K , H07V2-K H05V2-K
Standards:227 IEC 02/06, equivalent to VDE 0281 BS6004
Conductor: bare stranded copper--class 5 IEC228
Insulation: PVC
Voltage rating: 450/750V for above 1.5mm 2 , 300/500V for below 1mm 2
Temperature range: 0 ºC to 70ºC,0 ºC to 90ºC
Main colors: black-blue-red-green/yellow-brown-grey-orange-violet-white-dark blue
Minimum bending radius:
H07V-K, 6 x overall dia. ; H05V-K, 4 x overall dia.;
Application: flexible wiring, for switch control, instrumentation panels and for internal connection
Remark: the cable can be of Low smoke free halogen, flame retardant and other property.
| H07V-R H07V-U H05V-R H05V-U BY 227IEC01/05 equivalent to VDE 0281 BS6004 |
Cross Section
(mm2) | Conductor Construction
(No/mm) | Insulation Thickness
(mm) | Overall Diameter Max
(mm) | Min Insulation Resistance@ 70ºC
(ohm/Km) | Weight Approx
(Kg/Km) |
| 1x0.5 | 1/0.80 | 0.6 | 2.4 | 0.015 | 8 |
| 1x0.75 | 7/0.97 | 0.6 | 2.8 | 0.012 | 11 |
| 1x0.75 | 1/0.97 | 0.6 | 2.6 | 0.012 | 11 |
| 1x1.0 | 7/0.43 | 0.6 | 3.0 | / | 14 |
| 1x1.0 | 1/1.13 | 0.6 | 2.8 | 0.011 | 14 |
| | | | | | |
| 1x1.5 | 7/0.52 | 0.7 | 3.4 | 0.010 | 21 |
| 1x1.5 | 1x1.38 | 0.7 | 3.3 | 0.011 | 20 |
| 1x2.5 | 7/0.67 | 0.8 | 4.2 | 0.009 | 32 |
| 1x2.5 | 1x1.78 | 0.8 | 3.9 | 0.010 | 31 |
| 1x4 | 7/0.85 | 0.8 | 4.8 | 0.0077 | 45 |
| 1x4 | 1/2.25 | 0.8 | 4.4 | 0.0085 | 45 |
| | | | | | |
| 1x6 | 7/1.04 | 0.8 | 5.4 | 0.0065 | 65 |
| 1x6 | 1/2.76 | 0.8 | 4.9 | 0.0070 | 65 |
| 1x10 | 7/1.35 | 1.0 | 6.8 | 0.0065 | 110 |
| 1x10 | 1/3.57 | 1.0 | 6.4 | 0.0070 | 110 |
| 1x16 | 7/1.70 | 1.0 | 8.0 | 0.0050 | 165 |
| | | | | | |
| 1x25 | 7/2.14 | 1.2 | 9.8 | 0.0050 | 264 |
| 1x35 | 7/2.52 | 1.2 | 11.0 | 0.0040 | 360 |
| 1x50 | 19/1.78 | 1.4 | 13.0 | 0.0045 | 490 |
| 1x70 | 19/2.14 | 1.4 | 15.0 | 0.0035 | 685 |
| 1x95 | 19/2.52 | 1.6 | 17.5 | 0.0035 | 946 |
| | | | | | |
| 1x120 | 37/2.03 | 1.6 | 19.0 | 0.0032 | 1181 |
| 1x150 | 37/2.25 | 1.8 | 21.0 | 0.0032 | 1453 |
| 1x185 | 37/2.52 | 2.0 | 23.5 | 0.0032 | 1821 |
| | | | | | |
| 1x240 | 61/2.24 | 2.2 | 26.5 | 0.0032 | 2383 |
| 1x300 | 61/2.50 | 2.4 | 29.5 | 0.0030 | 2983 |
| 1x400 | 61/2.85 | 2.6 | 33.5 | 0.0028 | 3800 |
| H07V-K H05V-K BY 227IEC02/06 equivalent to VDE 0281 BS6004 |
Cross Section
(mm2) | Conductor Construction
(No/mm) | Insulation Thickness
(mm) | Overall Diameter Max
(mm) | Min Insulation Resistance@ 70ºC
(ohm/Km) | Weight Approx
(Kg/Km) |
| 1x0.5 | 16/0.2 | 0.6 | 2.4 | 0.013 | 8 |
| 1x0.75 | 24/0.2 | 0.6 | 2.6 | 0.011 | 11 |
| 1x1.0 | 32/0.2 | 0.6 | 2.8 | 0.010 | 14 |
| 1x1.5 | 48/0.2 | 0.7 | 3.5 | 0.010 | 20 |
| 1x2.5 | 49/0.25 | 0.8 | 4.2 | 0.009 | 31 |
| | | | | | |
| 1x4 | 56/0.3 | 0.8 | 4.8 | 0.007 | 47 |
| 1x6 | 84/0.3 | 0.8 | 6.3 | 0.006 | 67.8 |
| 1x10 | 84/0.4 | 1.0 | 7.6 | 0.0056 | 121 |
| 1x16 | 126/0.4 | 1.0 | 8.8 | 0.0046 | 173 |
| | | | | | |
| 1x25 | 196/0.4 | 1.2 | 11.0 | 0.0044 | 268 |
| 1x35 | 276/0.4 | 1.2 | 12.5 | 0.0038 | 370 |
| 1x50 | 396/0.4 | 1.4 | 14.5 | 0.0037 | 526 |
| 1x70 | 360/0.5 | 1.4 | 17.0 | 0.0032 | 727 |
| | | | | | |
| 1x95 | 475/0.5 | 1.6 | 19.0 | 0.0032 | 959 |
| 1x120 | 608/0.5 | 1.6 | 21.0 | 0.0029 | 1201 |
| 1x150 | 756/0.5 | 1.8 | 23.5 | 0.0029 | 1508 |
| 1x185 | 925/0.5 | 2.0 | 26.0 | 0.0029 | 1844 |
| 1x240 | 1221/0.5 | 2.2 | 29.5 | 0.0028 | 2420 |
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
