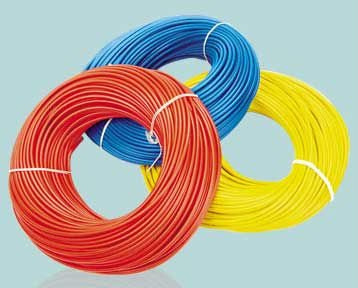

450/750V PVC Insulated Wire
| Price: |
US $ 1/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BV/BLV/BVR/BLVV |
| Rating Voltage: |
450/750V |
| Port: |
by Customer's Request |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Overhead |
| Insulation Material: |
PVC |
| Certification: |
CE |
| Conductor Material: |
Cu/ Al |
| Range Of Application: |
Building Wire |
Product Description
Application:
These cables are intended for drawing into trunking and fixed, protected conduit. They may also be used inside installations such as lighting fittings, appliances, switchgear and control gear, which are to be used in normaltemperature zones.
Property
1.Maximum conductor temperature:70°C
Maximum conductor temperature during short Circuit:160°C
2.Voltage rating:450/750V
When installed in an earthed metal enclosure, cables aresuitable for voltages up to 1000V a.c. or up to 750V to earth d.c.
| Type | Name | Laying Site and Requirements | Long-time Permissible Working Temperature of Conductor(° C) |
| 227IEC01/05 BV BLV | Copper Conductor, PVC Insulated Wire | Fixed laid in the circumstance of indoor, conduit etc. | 70 |
| Aluminium Conductor, PVC Insulated Wire |
| 227IEC 07 BV-90 | Heat Resistant Copper Conductor, PVC Insulated Wire at 90
| Fixed laid in the circumstance of high temperature environment and can be laid indoor, conduit etc.
| 90 |
| BVR | Copper Conductor, PVC Insulated Flexible Wire | Fixed laid where flexibility is required. | 70 |
| 227-IEC10 BVV | Copper Conductor PVC Insulated and PVC Sheathed Round Wire | Fixed laid where high mechanical protection and moisture are required. They can be laid in the air or underground. | 70 |
| BLVV | Aluminium Conductor PVC Insulated and PVC Sheathed Round Wire |
| BVVB | Copper Conductor PVC Insulated and PVC Sheathed Flat Wire |
| BLVVB | Aluminium Conductor PVC Insulated and PVC Sheathed Flat Wire |
| 227IEC 02 RV227 IEC 06 RV | Copper Conductor, PVC Insulated Flexible Connector | Mainly used at middle-light type movable euipments, instrument and meters, household appliances, power and lighting and the places where flexibility is required. | 70 |
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.
The main products are as follows:
Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Fiber Optic Cable (OPGW, ADSS, etc. )
Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.
We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
