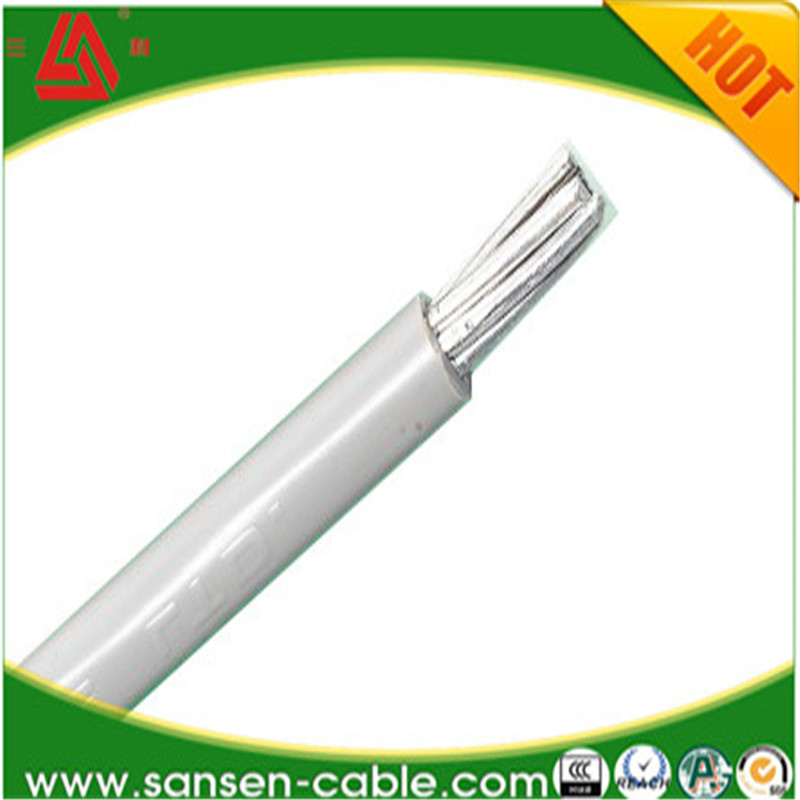

450/750V PVC with Aluminum Core Insulated Cable
| Price: |
US $ 0.5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
BLV |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Underground |
| Conductor Material: |
Aluminum |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Sansen |
Product Description
1.ApplicationAerial Bunch Cables are basically a compromise construction between Power cables and Overhead conductors.
It is preferred to use of ABC cables instead of uninsulated conductors at low voltage networks.
ABC cables are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages.
Bundles can include one or two additional conductors for public lighting and control pair.2.ConstructionsConductor: Round, stranded and compacted aluminum conductor
Insulation: HDPE, XLPE, PVC
3.Standard
GB12527-91,IEC502, BS7870-5,NFC33-209
Other standards such as BS,DIN,ASTM and ICEA upon request
4.Specifications| Duplex Service Drop ACSR Neutral-Messenger Aluminum Conductor |
| Code Name | Phase conductor | Bare Neutral Messenger | Weight per 1000ft | Rating |
| Size | Stranding | Insulation
thickness | Size | Stranding | Breaking
strength | XLP | Poly | XLP | Poly |
| AWG | | mls | AWG | | Lbs | Lbs | Lbs | Amps | Amps |
| Setter | 6 | Solid | 45 | 6 | 6/1 | 1190 | 75 | 73.2 | 70 | 70 |
| Shepherd | 6 | 7/w | 45 | 6 | 6/1 | 1190 | 78.3 | 74.6 | 70 | 70 |
| Eskimo | 4 | Solid | 45 | 4 | 6/1 | 1860 | 113.7 | 111.6 | 90 | 90 |
| Terrier | 4 | 7/w | 45 | 4 | 6/1 | 1860 | 118.7 | 113.6 | 90 | 90 |
| Chow | 2 | 7/w | 45 | 2 | 6/1 | 2850 | 181.7 | 174.7 | 120 | 120 |
| Bull | 1/0 | 19/w | 60 | 1/0 | 6/1 | 4380 | 288.7 | 280.3 | 160 | 160 |
| Triplex Service Drop Aluminum Conductors With Full Size ACSR Messenger |
| Code Name | Phase conductor | Bare Neutral Messenger | Weight per 1000ft | Rating |
| Size | Stranding | Insulation
thickness | Size | Stranding | Breaking
strength | XLP | Poly | XLP | Poly |
| AWG | | mls | AWG | | Lbs | Lbs | Lbs | Amps | Amps |
| Paludina | 6 | Solid | 45 | 6 | 6/1 | 1190 | 114 | 113 | 85 | 70 |
| Voluta | 6 | 7 | 45 | 6 | 6/1 | 1190 | 120 | 113 | 85 | 70 |
| Whelk | 4 | Solid | 45 | 4 | 6/1 | 1860 | 169 | 165 | 115 | 90 |
| Periwinkle | 4 | 7 | 45 | 4 | 6/1 | 1860 | 176 | 172 | 115 | 90 |
| Conch | 2 | 7 | 45 | 2 | 6/1 | 2850 | 267 | 261 | 150 | 120 |
| Neritina | 1/0 | 7 | 60 | 1/0 | 6/1 | 4380 | 530 | 419 | 205 | 160 |
| Cenia | 1/0 | 19 | 60 | 1/0 | 6/1 | 4380 | 426 | 416 | 205 | 160 |
| Runcina | 2/0 | 7 | 60 | 2/0 | 6/1 | 5310 | 530 | 519 | 235 | 185 |
| Triton | 2/0 | 19 | 60 | 2/0 | 6/1 | 5310 | 526 | 514 | 235 | 185 |
| Cherrystone | 3/0 | 7 | 60 | 3/0 | 6/1 | 6620 | 656 | 643 | 250 | 200 |
| Mursia | 3/0 | 19 | 60 | 3/0 | 6/1 | 6620 | 650 | 638 | 250 | 200 |
| Razor | 4/0 | 7 | 60 | 4/0 | 6/1 | 8350 | 814 | 799 | 315 | 245 |
| Zuzara | 4/0 | 19 | 60 | 4/0 | 6/1 | 8350 | 805 | 792 | 315 | 245 |
| Limpet | 336.4 | 19 | 80 | 336.4 | 18/1 | 8680 | 1209 | 1167 | 420 | 325 |
| Triplex Service Drop Aluminum Conductors With ACSR Reduced Size Messenger |
| Code Name | Phase conductor | Bare Neutral Messenger | Weight per 1000ft | Rating |
| Size | Stranding | Insulation
thickness | Size | Stranding | Breaking
strength | XLP | Poly | XLP | Poly |
| AWG | | mls | AWG | | Lbs | Lbs | Lbs | Amps | Amps |
| Scallop | 4 | Solid | 45 | 6 | 6/1 | 1190 | 148 | 144 | 115 | 90 |
| Strombus | 4 | 7/w | 45 | 6 | 6/1 | 1190 | 158 | 148 | 115 | 90 |
| Cockle | 2 | 7/w | 45 | 4 | 6/1 | 1860 | 233 | 227 | 150 | 120 |
| Janthina | 1/0 | 7/w | 60 | 2 | 6/1 | 2850 | 376 | 365 | 205 | 160 |
| Ranella | 1/0 | 19/w | 60 | 2 | 6/1 | 2850 | 372 | 362 | 205 | 160 |
| Cavolinia | 2/0 | 7/w | 60 | 1 | 6/1 | 3550 | 462 | 451 | 235 | 185 |
| Clio | 2/0 | 19/w | 60 | 1 | 6/1 | 3550 | 458 | 446 | 235 | 185 |
| Sanddollar | 3/0 | 7/w | 60 | 1/0 | 6/1 | 4380 | 570 | 557 | 275 | 215 |
| Aega | 3/0 | 19/w | 60 | 1/0 | 6/1 | 4380 | 565 | 552 | 275 | 215 |
| Cuttlefish | 4/0 | 7/w | 60 | 2/0 | 6/1 | 5310 | 706 | 691 | 315 | 245 |
| Cerapus | 4/0 | 19/w | 60 | 2/0 | 6/1 | 5310 | 699 | 684 | 315 | 245 |
| Cowry | 336.4 | 19/w | 80 | 4/0 | 6/1 | 8350 | 1135 | 1093 | 420 | 325 |
| Quadruplex Service Drop Aluminum Conductors ACSR Neutral-Messenger |
| Code Name | Phase conductor | Bare Neutral Messenger | Weight per 1000ft | Rating |
| Size | Stranding | Insulation
thickness | Size | Stranding | Breaking
strength | XLP | Poly | XLP | Poly |
| AWG | | mls | AWG | | Lbs | Lbs | Lbs | Amps | Amps |
| Morochuca | 6 | 7/w | 45 | 6 | 6/1 | 1190 | 152 | 147.4 | 75 | 60 |
| Chola | 6 | Solid | 45 | 6 | 6/1 | 1190 | 162 | 151.7 | 75 | 60 |
| Morgan | 4 | 7/w | 45 | 4 | 6/1 | 1860 | 226 | 220 | 100 | 80 |
| Hackney | 4 | 7/w | 45 | 4 | 6/1 | 1860 | 241 | 226.1 | 100 | 80 |
| Palomino | 2 | 19/w | 45 | 2 | 6/1 | 2850 | 362 | 342.6 | 135 | 105 |
| Costena | 1/0 | 19/w | 60 | 1/0 | 6/1 | 4380 | 575 | 550.6 | 180 | 140 |
| Grullo | 2/0 | 19/w | 60 | 2/0 | 6/1 | 5310 | 707 | 678.7 | 205 | 160 |
| Suffolk | 3/0 | 19/w | 60 | 3/0 | 6/1 | 6620 | 872 | 838.9 | 235 | 185 |
| Appaloosa | 4/0 | 19/w | 60 | 4/0 | 6/1 | 8350 | 1079 | 1039.2 | 275 | 210 |
| Bronco | 336.4 | 19/w | 80 | 336.4 | 18/1 | 8580 | 1613 | 1568.2 | 370 | 280 |
| Gelding | 336.4 | 19/w | 80 | 4/0 | 6/1 | 8350 | 1548 | 1494.3 | 370 | 280 |
FAQ
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable,power cable ,control cable , telephone cable, speaker cable and ect.
Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.
Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.
Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.
Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
Q8. Can you offer me a free sample?
A: Yes,we do,that is a start of business-i think. And you will only pay the cost of delivery,which we will return it to you when you put the order.

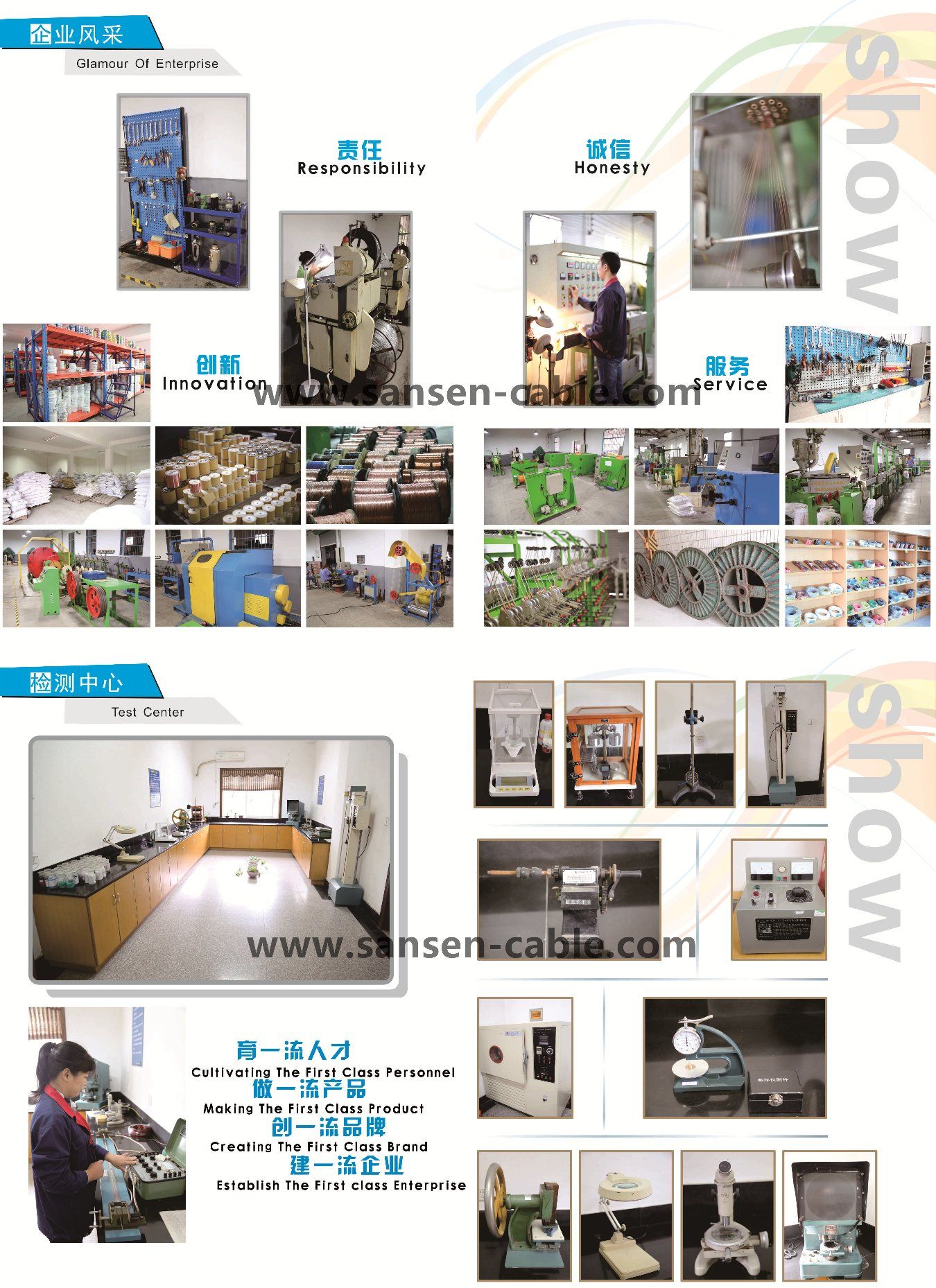

We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.
Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.
At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.
We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
